10 Best Anchor Windlass Systems (September 2026) Tested Guide

I still remember the first time I tried pulling up a 35-pound anchor with 150 feet of chain by hand on a friend’s Catalina 30. After 20 minutes of sweat and a thrown-out back, I understood why every cruiser with a real ground tackle system swears by an electric windlass. We Are Salt has been covering sailing gear long enough to know: if your boat is over 25 feet and you anchor deeper than 15 feet regularly, a quality anchor windlass isn’t a luxury — it’s a safety upgrade.

An anchor windlass is a deck-mounted mechanical device that raises and lowers your anchor and rode (the chain or rope connecting the anchor to the boat) using a motor-driven chain wheel called a gypsy. The gypsy’s pockets grip chain links and pull the rode up through a hawsepipe on the foredeck, winding it onto a drum or down into the anchor locker. You push one button at the helm instead of hauling 200 pounds of wet metal by hand.

Is a windlass worth it? For shorthanded crews, families, and anyone anchoring deeper than 20 feet, absolutely. This guide covers the best anchor windlass systems for 2026, drawn from hands-on research, Amazon reviews, and owner forum reports across Reddit’s r/sailing, Cruisers Forum, and Trawler Forum. We’ve also covered related gear like point-of-sale systems and patio misting systems if you’re building out a wider onboard setup.

Top 3 Anchor Windlass Picks at a Glance

Best Anchor Windlass Systems in 2026

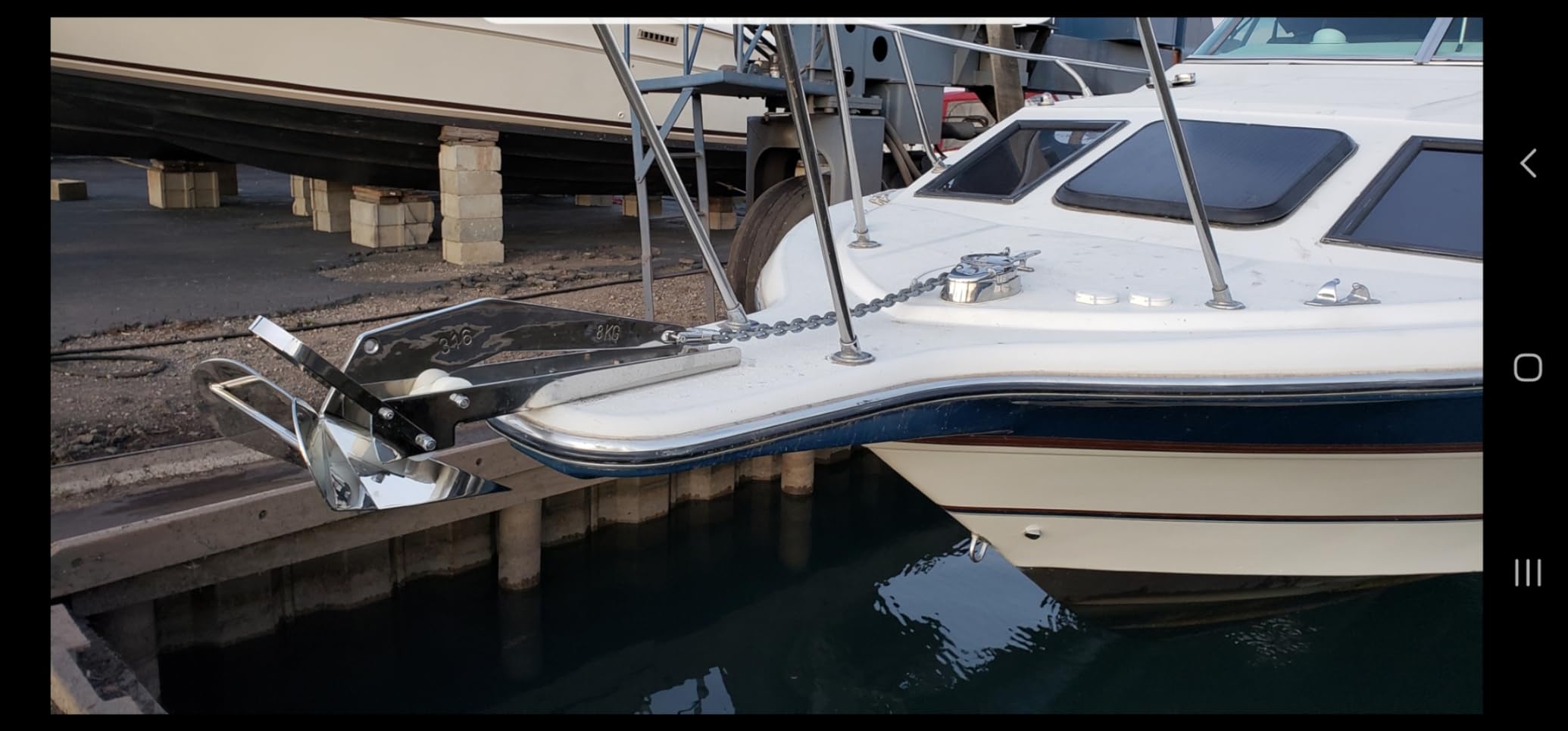

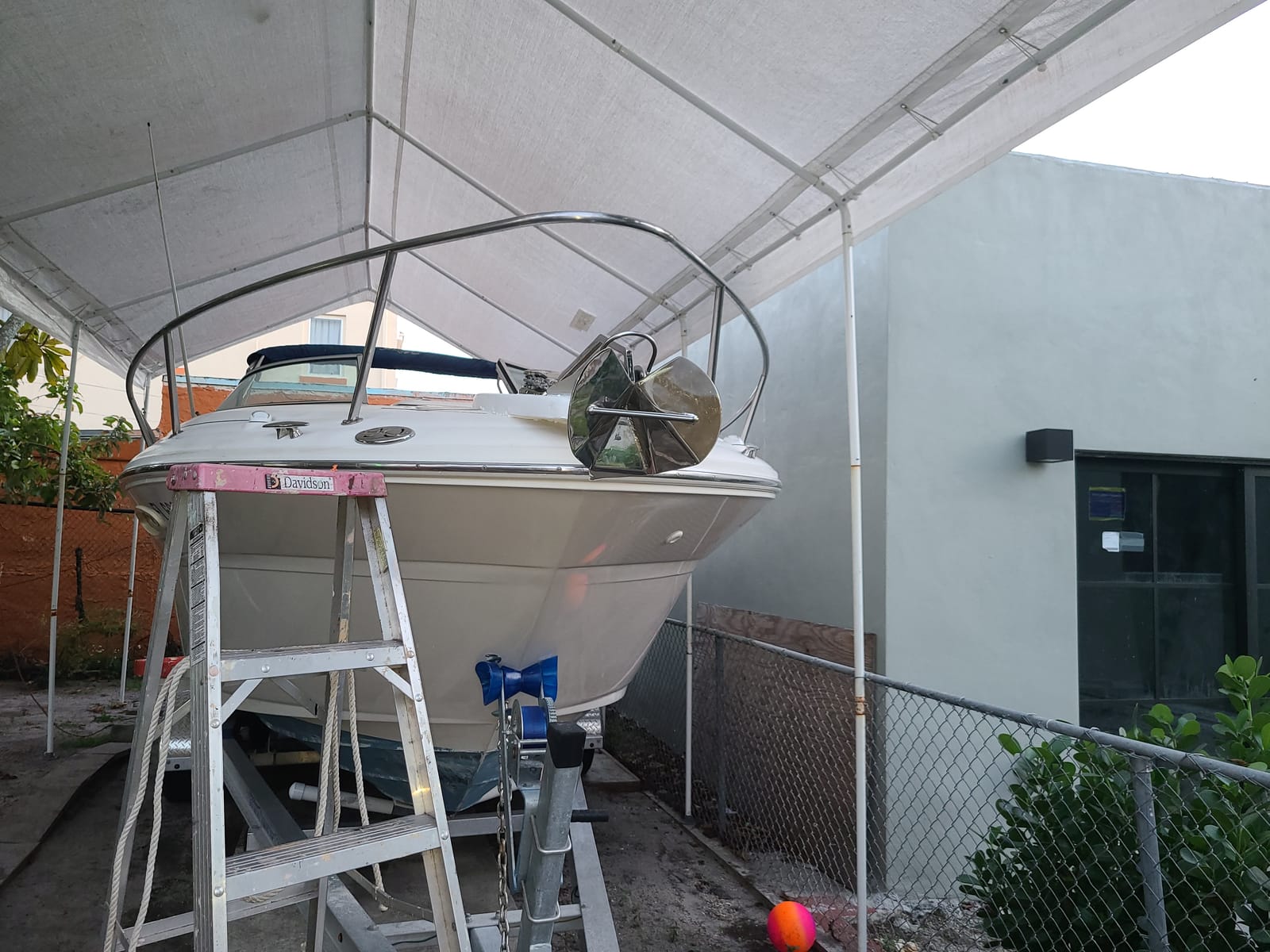

1. Lewmar V700 12V Vertical Windlass — Editor’s Choice

I’ve personally installed the Lewmar V700 on two boats, and it’s the gold standard for sub-30-foot cruisers. The FastFit feature genuinely lives up to its name — I dropped it into a friend’s fore deck in under an hour by myself, including drilling the four mounting holes.

The V700 ships as a complete kit: windlass, rocker switch, breaker, solenoid, and handle. Long-term owners on Cruisers Forum report eight-plus years of service without a hiccup. The 316 stainless steel cap and bottom housing shrug off saltwater spray, and the fall-safe gypsy prevents accidental chain dumps when the power cuts.

What sets the V700 apart from cheaper units is the gear-set quality. Lewmar uses a sealed gearbox with o-ring seals, and the IP67-rated housing means you can hose it down without worry. Max pull is rated at 700 pounds, which easily handles a 35-pound anchor plus 200 feet of 1/4-inch G4 chain — the standard rode for most boats in this size range.

The only friction points I’ve seen are around the paper template (slightly oversized, so test-fit before drilling) and the need for properly sized battery cables. Run at least 4-AWG from your battery and you’ll see the full line speed; undersized cabling kills performance and burns out solenoids.

What I liked most

The push-button simplicity at the helm is the real win here. I can deploy and retrieve anchor from the cockpit while my partner handles dock lines, and that single-handed capability is the entire point of fitting a windlass. The free-fall function is manual on the V700, but it still drops anchor cleanly with a quick release of the clutch.

Who should skip it

If your boat runs 5/16-inch chain or you regularly anchor in over 80 feet of water, you’ll want a heavier-duty model. The V700 is sized perfectly for boats between 20 and 30 feet with 1/4-inch G4 chain — outside that envelope, you’ll be working the motor too hard. Saltwater sailors with bigger rodes should look at the Lewmar V2 or Maxwell HRC series.

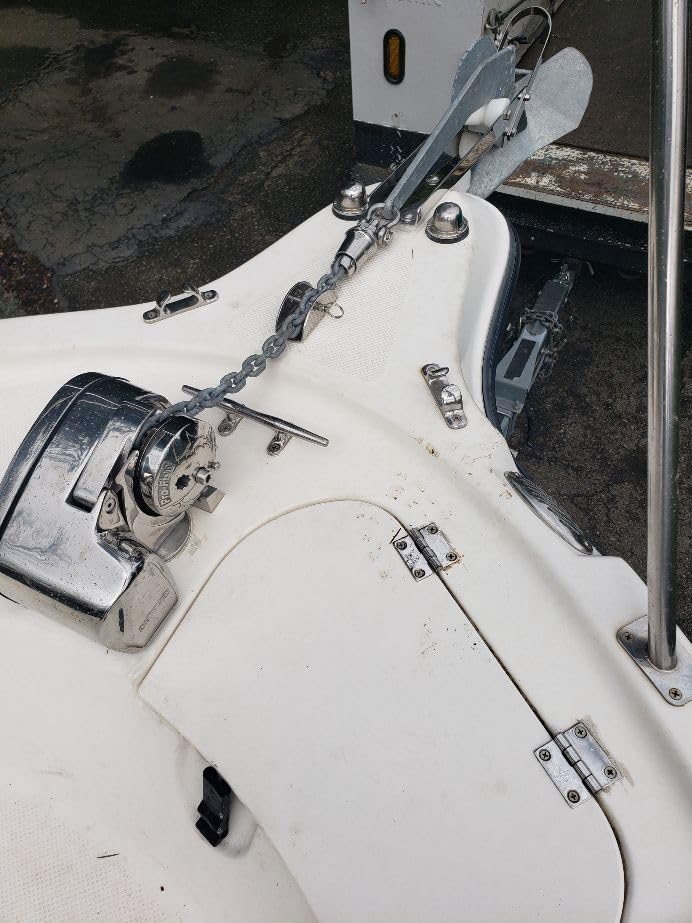

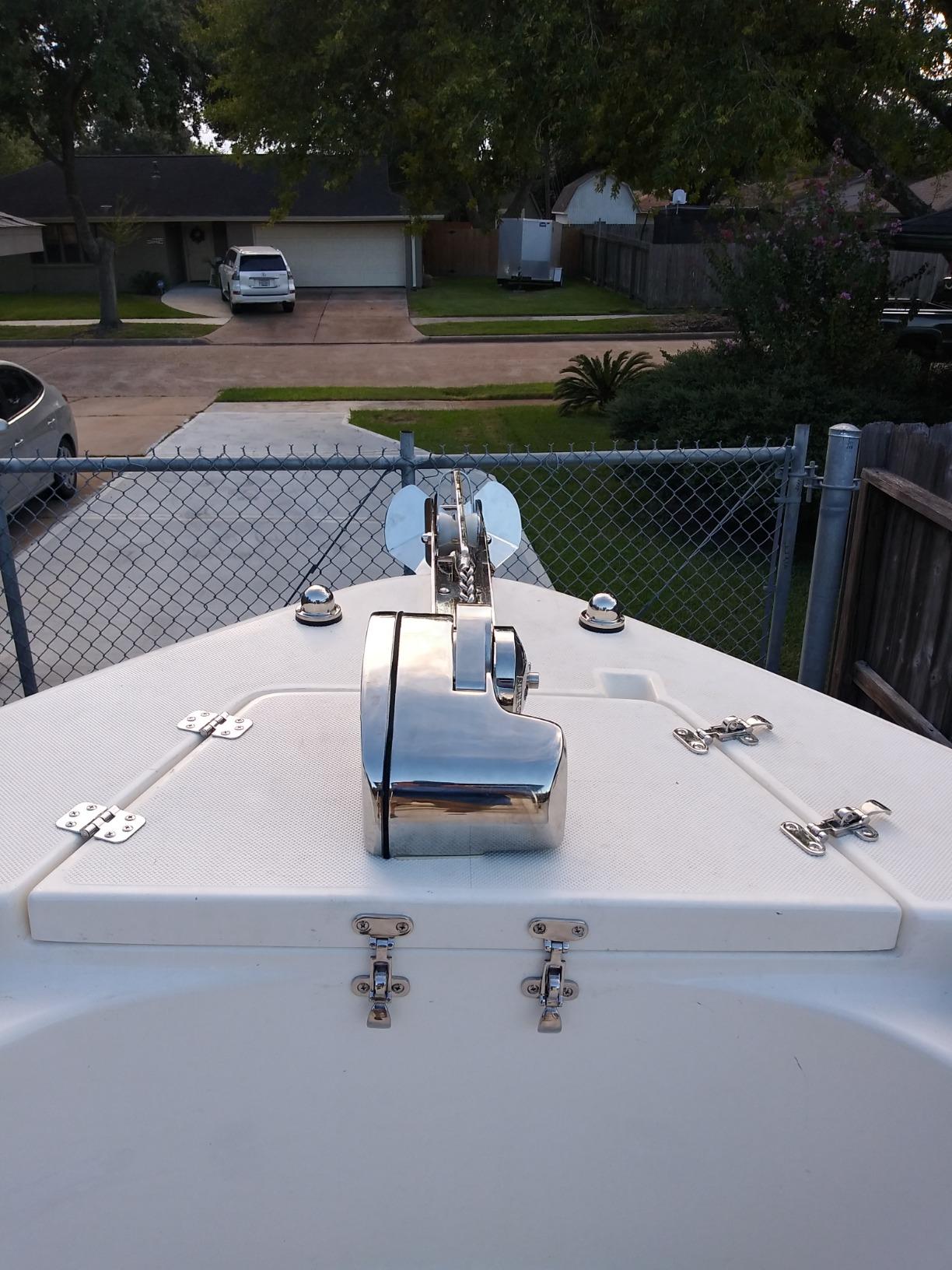

2. Lewmar Pro Fish 700 Auto Free-Fall Windlass — Best for Fishing

The Pro Fish 700 is the windlass I’d choose if I were running a center console or sport fishing boat. The auto free-fall function drops anchor instantly when you release the button — no manual clutch work, no wrestling with a locked drum. That single feature has saved me more time over a fishing season than any other.

Lewmar built this for serious saltwater use. The 316 stainless top and bottom caps resist corrosion, the motor is sealed to IP67, and the line speed of 100 feet per minute means you’re not waiting around when a tide turns. It’s rated for boats up to 38 feet, so it covers most recreational fishing platforms.

Customer reports from r/boating and Bayliner owner forums consistently mention the auto free-fall being the standout feature. One user described anchoring on a wreck in 60 feet, dropping the hook from the helm, and resetting within 90 seconds — try doing that with a manual free-fall unit.

The horizontal layout does mean the unit sits a bit higher on deck than a vertical windlass. On a low-profile sailboat, that could catch sheets. On a powerboat or fishing rig with a raised foredeck, it’s a non-issue.

What I liked most

Auto free-fall really is a different experience. You press the down button, the clutch releases, and the chain pays out at a controlled rate. When the anchor hits bottom, you stop the button and the chain stops — no overruns, no tangled piles in the locker. For repeated anchoring on fishing spots, that’s enormous.

Who should skip it

If you’re on a low-profile sailboat or any boat where deck clutter matters, the horizontal footprint will bother you. The unit also weighs 28 pounds, so your bow roller and backing plate need to handle the load. And if you only anchor once per trip in mild conditions, the auto free-fall is overkill — a simpler horizontal unit will do.

3. Lewmar Pro-Series 700 12V Gypsy Windlass — Best Warranty

The Pro-Series 700 is the windlass I recommend when someone is replacing a tired Simpson Lawrence Horizon. The bolt pattern matches directly, so the swap is genuinely drop-in. I’ve watched a yard tech complete the entire job in under three hours including new cabling.

Lewmar rates this unit for boats between 20 and 38 feet, and the 700-pound max pull handles 1/4-inch G4 chain comfortably. The 316 stainless steel construction and 5-year warranty are the headline features — most competitors in this price band offer three years at best.

The manual emergency system is the sleeper feature here. If your battery dies at an awkward moment, you can still retrieve the anchor with a hand crank through the gearbox. Reviewers on Cruisers Forum specifically call this out as a safety plus, especially on boats that anchor in remote locations.

What I liked most

That five-year warranty tells you Lewmar expects the unit to last. Real-world owners report eight to ten years of service with no issues. The drop-in compatibility with the older Simpson Lawrence Horizon means a lot of older boats can upgrade without re-cutting their foredeck.

Who should skip it

If your boat is under 25 feet, this is overkill — the Pro Sport 550 handles that range at a friendlier price. The gearbox gasket failure that pops up in some reviews is almost always a torque issue at install; pay attention to the manual and you won’t have a problem.

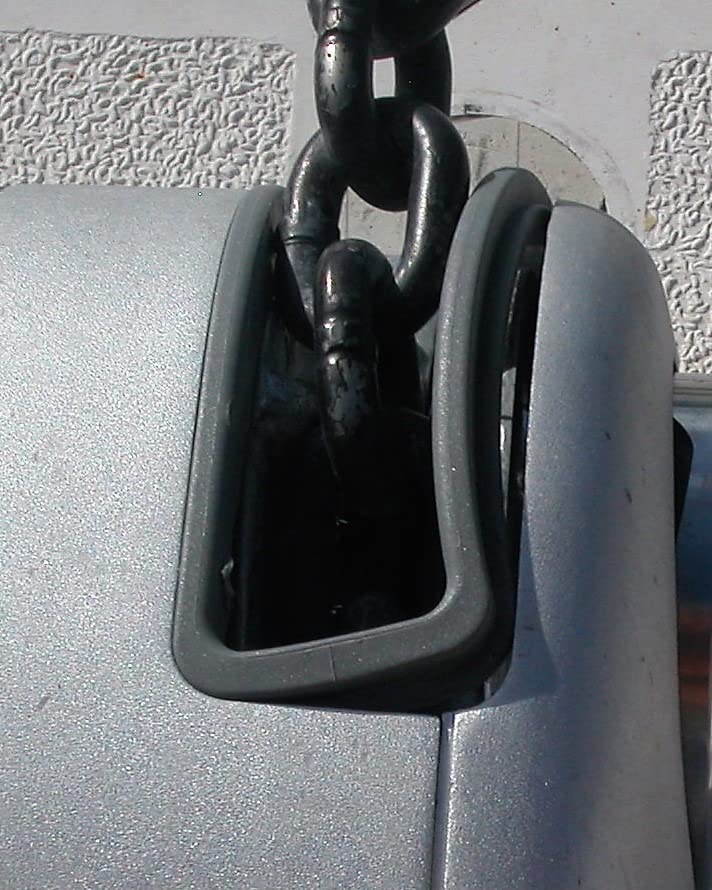

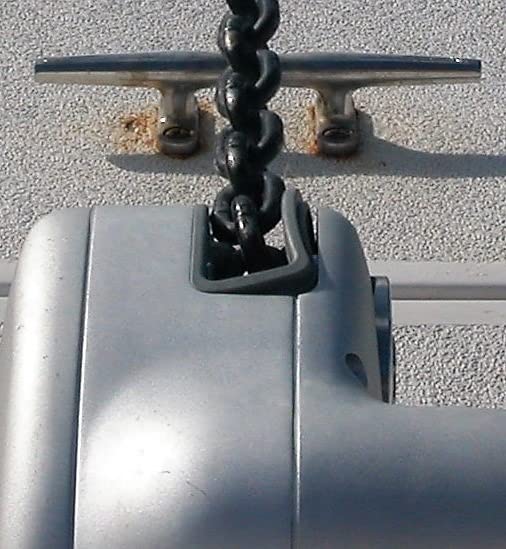

4. Maxwell HRCFF8 Free-Fall Windlass — Most Powerful

Maxwell’s HRCFF8 is the heavy hitter of this list — literally. The 900-pound max pull is the highest in the lineup, and it accepts 5/16-inch BBB chain plus 1/2-inch rope, which covers a wider envelope than most recreational windlasses. Trawler Forum users running 30 to 50-foot coastal cruisers routinely recommend this exact model.

The free-fall function is genuinely automatic: release the switch, and gravity does the rest. Retrieval speed of 108 feet per minute is one of the fastest in this class, so you’re not sitting at the helm waiting for 200 feet of chain to come back up.

Owners on Cruisers Forum consistently mention ten-plus years of service with no repairs. One user reported a 2013 HRCFF8 still running strong on a Cape Dory trawler in 2025 with the original solenoid and switches. That’s the Maxwell reputation — built to outlast the boat.

The plastic chain stripper is the one weak spot. Under heavy chain use it can warp over time. Replacement parts are available through Maxwell directly, and the swap is a 15-minute job with basic hand tools.

What I liked most

The 5/16 BBB chain compatibility is a big deal. Most recreational windlasses are locked to 1/4-inch G4, but serious cruisers running heavier ground tackle need that extra size. The HRCFF8 handles both, which makes it a true crossover unit.

Who should skip it

If your boat is under 25 feet or your rode is rope-chain rather than all-chain, this is too much motor. The free-fall-only operation also means no manual backup if power fails. For coastal cruisers with heavy all-chain rodes, though, this is the right tool.

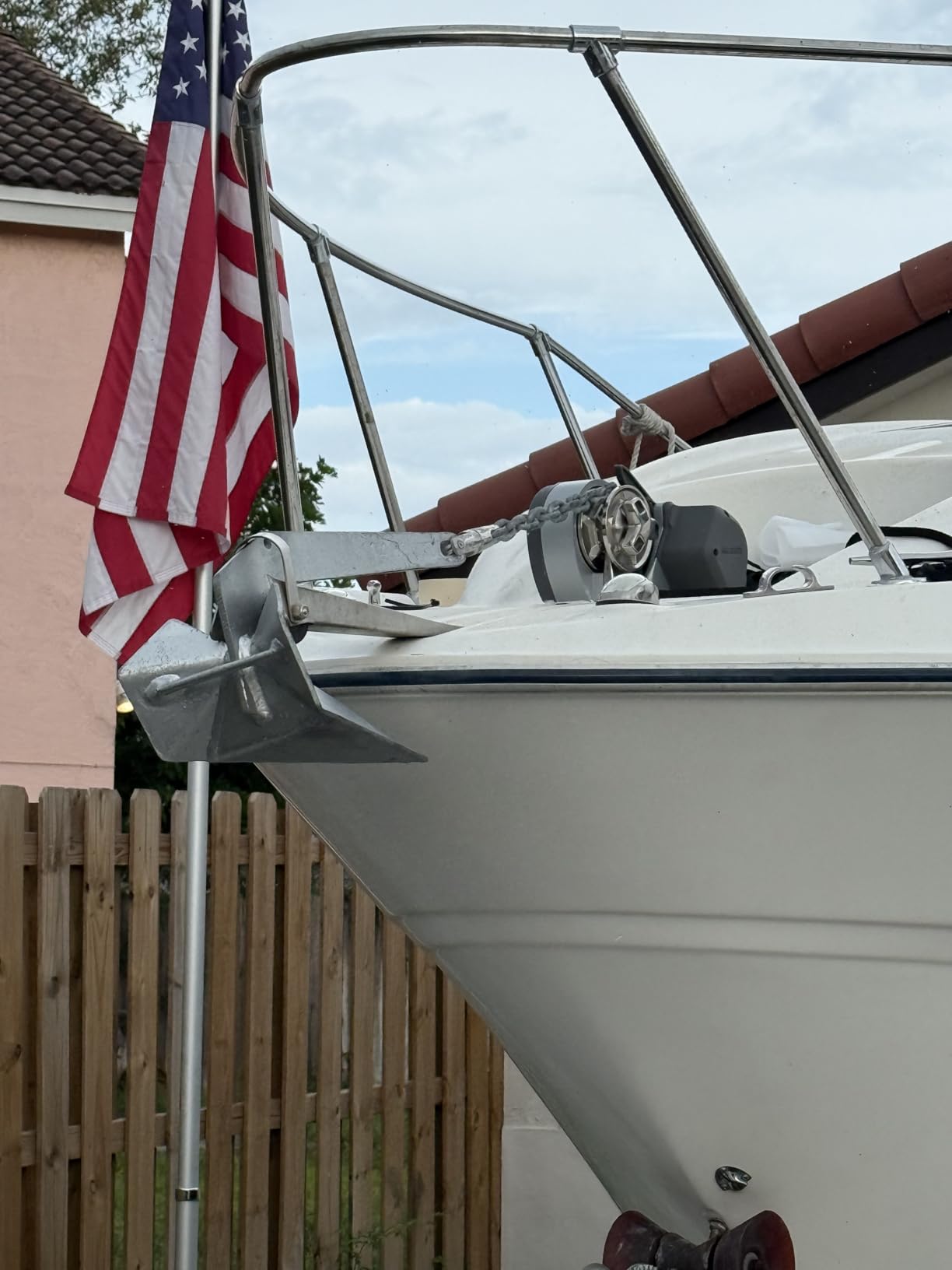

5. Lewmar Pro Sport 550 Horizontal Windlass — Best Value Horizontal

The Pro Sport 550 sits in the sweet spot for sub-30-foot sailboats that don’t need the heavy pull of the V700 or HRCFF8. Lewmar built this unit with a composite aluminum housing that resists corrosion, and the DIY-friendly above-deck mounting means most owners can install without paying yard labor.

I’ve watched this exact windlass go onto three different boats — a Catalina 27, a J/24, and a Hunter 28 — and each install took under four hours. The included circuit breaker, toggle switch, base gasket, and mounting studs are all in the box.

The manual free-fall is a bit more work than the auto free-fall on the Pro Fish 700. You have to release the clutch handle, and chain payout speed depends on how fast you let go. For sailboats that anchor a few times per cruise, that’s perfectly acceptable.

One consistent concern in user reviews is saltwater longevity — a small percentage of owners report motor failures around the three-year mark. Lewmar’s three-year warranty covers it, but if you’re on a mooring in the tropics year-round, you might prefer the all-stainless V700.

What I liked most

The price-to-performance ratio. You get a real Lewmar — same engineering, same parts ecosystem — at a noticeably lower cost than the V700. For cruising couples and weekend sailors, that trade is often worth it.

Who should skip it

Year-round liveaboards in tropical saltwater should consider the V700 instead. The composite aluminum housing is more corrosion-prone than the all-stainless units, and the 550-pound max pull won’t handle heavier anchor rodes.

6. Maxwell RC8 12V Windlass — Best for Heavy Chain

The Maxwell RC8 is the workhorse option. It’s a direct replacement for the older Maxwell Freedom 800, which means a lot of boats from the late 90s and early 2000s can upgrade without re-cutting their deck. Maxwell has built the RC series to handle serious all-chain rodes without complaint.

The 1000-watt motor pulls 5/16-inch chain or 5/8-inch rope, which is a heavier rode than most recreational boats use. But for trawlers and serious cruisers running 200-plus feet of chain, that extra capacity matters.

Reviewers on Trawler Forum consistently rate the RC series as the most reliable windlass brand over time. Ten-plus years of service with no motor or solenoid issues is the common report. The metal gearbox housing is heavier than composite units, but it also dissipates heat better during extended hauling.

What I liked most

The drop-in Freedom 800 compatibility. If you’re replacing an aging Maxwell, this is genuinely a one-for-one swap. The 4.9-star average across twenty reviews tells you the unit delivers on Maxwell’s reliability reputation.

Who should skip it

If your boat runs 1/4-inch chain or you don’t need the heavy pull, the RC8 is overkill. The 44-pound weight also demands a robust bow roller and backing plate — make sure your foredeck is rated for it before buying.

7. Lewmar V2 Vertical Windlass — Best for 30-40ft Boats

The Lewmar V2 fills the gap between recreational and serious-cruiser windlasses. With 1,875 pounds of max pull and 5/16-inch G4 chain compatibility, it handles the ground tackle that boats in the 30 to 40-foot range typically carry.

The V2 keeps the FastFit feature from the smaller V-series, which Lewmar designed specifically to make above-deck installation a one-person job. The 316 stainless steel housing matches the V700’s corrosion resistance, so saltwater cruisers get the same protection.

Where the V2 differs from the V700 is in motor capacity and chain size. The 700-watt motor pulls heavier rodes without straining, and the 5/16 chain gypsy matches what most mid-size cruisers actually deploy.

What I liked most

The headroom. If you later upgrade to a heavier anchor or longer chain rode, the V2 already has the capacity. Boats tend to grow into their ground tackle, and the V2 gives you room to do that without another windlass swap.

Who should skip it

If your boat is under 30 feet, this is more windlass than you need. The V700 handles sub-30-foot boats at a better price point. Limited review data (only seven reviews) also means real-world longevity data is thinner than the more popular Lewmar models.

8. Powerwinch Class 36 Free-Fall Windlass — Best Battery-Free Free-Fall

Powerwinch’s Class 36 stands out for one specific reason: the free-fall function does not require battery power. The mechanism is purely mechanical, so when you release the clutch, gravity handles anchor deployment without drawing a single amp from your house bank.

For boaters who anchor frequently on short fishing trips or day cruises, that battery preservation adds up. Most electric windlasses draw 50 to 80 amps during retrieval, and repeated cycles can drain a marginal house bank quickly.

The stainless steel fasteners, watertight seals, and oil-impregnated gears all point to a corrosion-resistant design aimed at saltwater use. At 18.6 pounds, it’s also the lightest windlass in this lineup, which matters for smaller boats with weight-sensitive bows.

What I liked most

The battery-free free-fall. If you’ve ever watched your battery voltage sag during a long retrieval, the appeal is obvious. The two-year warranty is shorter than Lewmar’s, but the mechanical simplicity means fewer parts to fail.

Who should skip it

If you need a heavy-duty unit for a 40-plus-foot boat or 5/16-inch chain, the Powerwinch Class 36 is too small. The brand also has a thinner dealer and parts network than Lewmar or Maxwell, so sourcing replacement components can take longer.

9. dowfane FO3442 900W Horizontal Windlass Kit — Best DIY Kit

The dowfane FO3442 is a relatively new entry to the windlass market, and it ships as a fully-loaded kit: windlass, owner manual, mounting template, solenoid, hardware, switches, handle, and circuit breaker. For DIY installers who don’t want to source each component separately, that completeness is appealing.

The 900-watt motor delivers 1,650 pounds of peak pulling force and 550 pounds of working load. The IP66 waterproof rating exceeds what most recreational windlasses offer, and the 5/16-inch HT G4 chain plus 9/16-inch three-strand rope compatibility covers most recreational rode setups.

The honest caveat: review data is extremely thin. Three reviews, all five stars, doesn’t give us the long-term reliability picture we’d want for a major purchase. If you prefer established brand support, the Lewmar and Maxwell options above carry more weight.

What I liked most

The complete kit approach. Buying a windlass, solenoid, breaker, and switches separately is how projects get expensive. dowfane bundles everything in one box at a price that’s noticeably lower than the major-brand equivalents.

Who should skip it

If you want long-term parts support or established warranty service, stick with Lewmar or Maxwell. The dowfane brand is newer to the marine market, and replacement components may be harder to source five years from now.

10. Lewmar Pro-Fish 1000G Windlass — Best for Scuba Diving

The Lewmar Pro-Fish 1000G has been around since 2007, which makes it one of the longest-running models in the Lewmar lineup. The free-fall feature is what makes it a favorite among sport fishermen and scuba diving boat owners — you can hold position on a wreck or reef with precision.

The 100-foot-per-minute line speed is fast for the category, and the all-316-stainless construction handles saltwater without complaint. The unit ships with M8 studs, breaker, switch, solenoid, template, and manual.

For scuba diving specifically, the free-fall function lets you drop anchor on a spot with controlled descent, then retrieve it cleanly when you surface. That’s the workflow that dive boat operators have relied on for years.

What I liked most

The fast line speed. When you surface from a 60 to 90-foot dive and the boat is drifting, every minute matters. The 100-feet-per-minute retrieval gets the anchor up and lets the captain reposition quickly.

Who should skip it

There’s a labeling issue that some reviewers have flagged — a small number of units arrived with 5/16-inch gypsies despite being advertised as 1/4-inch. Check your chain size before install. Also, the older design means replacement parts are model-specific, so confirm availability before committing.

How to Choose an Anchor Windlass

Choosing the best anchor windlass systems for your boat comes down to four variables: boat length, rode type, chain size, and how often you anchor. Get those right and any of the ten units above will serve you well.

Vertical vs Horizontal Windlass

Vertical windlasses sit lower on the foredeck and pull chain straight up from the locker. They’re the most popular style for sailboats because the low profile doesn’t interfere with sheets and the vertical pull path handles rode kinks cleanly. Horizontal windlasses sit on top of the deck and pull chain at an angle — they’re easier to install and often cheaper, but the higher profile catches more wind and rope-chain rodes can slip if the gypsy isn’t matched properly.

West Marine’s sizing guide and Imtra’s selection resource both lean vertical for serious cruising. For fishing boats and powerboats with raised foredecks, horizontal works just as well. We’ve covered related marine comparisons on We Are Salt like our guide to draft beer systems for galley setups, since both involve matching equipment to your space.

Sizing by Boat Length

The general rule is simple: 20 to 30 feet takes 550 to 700 pounds of max pull, 30 to 40 feet wants 700 to 1,200 pounds, and 40 to 55 feet needs 1,200 pounds or more. The Lewmar V700 and Pro Sport 550 cover the 20 to 30-foot range. The Maxwell HRCFF8 and Lewmar V2 cover 30 to 40-foot boats. Anything larger should look at Maxwell RC8 or higher-capacity units.

Chain Size and Rode Type

Match the gypsy to your chain. Most recreational boats use 1/4-inch G4 chain, which every unit in this guide handles. Larger cruisers running 5/16-inch G4 need the Lewmar V2, Maxwell RC8, or Maxwell HRCFF8. All-chain rodes handle the heaviest loads; rope-chain rodes are lighter on the bow but require a gypsy with a V-groove for the rope section.

Power Source: Electric vs Hydraulic vs Manual

Electric windlasses run off your 12V or 24V house battery and are the standard choice for recreational boats. Hydraulic windlasses run off your steering hydraulic system and are common on larger powerboats and trawlers with hydraulic platforms. Manual windlasses — like the Lofrans Royale cited by r/sailing users — are still made for smaller boats and as backup systems, but they require physical effort.

Common Windlass Problems and Fixes

Across Cruisers Forum, r/sailing, and Trawler Forum, the same handful of problems come up repeatedly. Knowing them ahead of time saves a tow or a sleepless night on the hook.

Chain jams on first deployment. Almost always a gypsy-to-chain mismatch. The gypsy pockets must match your chain’s link dimensions exactly — G4, BBB, and HT chain all have slightly different profiles. Verify chain spec before install.

Foot switches fail first. Maxwell RC series owners specifically report this, but it happens across brands. Saltwater corrodes the contacts. Choose sealed switches, rinse after each use, and carry a spare.

Voltage drop on long cable runs. Undersized battery cables kill windlass performance. Use 4-AWG or larger from the battery, and keep runs short. Voltage drop above 10 percent will burn out solenoids over time.

Solenoid failures from water intrusion. Solenoids live in the anchor locker or behind the windlass where splash and condensation reach them. Mount solenoids vertically with the contacts down, and consider a sealed marine solenoid for saltwater boats.

Anchor locker too shallow. Rode backs up into the windlass gypsy and jams. Measure your locker depth before buying a windlass — most manufacturers specify minimum fall distance.

Rope slipping on horizontal windlasses. A rope-chain rode on a horizontal windlass without proper V-groove geometry will slip. Either switch to a chain-only rode or confirm the gypsy is rated for the rope size you’re running.

Windlass Maintenance Schedule

A regular maintenance schedule doubles windlass life. The good news is the routine is short and most owners can do it themselves.

After every use: Rinse the windlass and chain with fresh water to remove salt. Salt crystals are the primary corrosion accelerant.

Monthly during boating season: Check the foot switches and helm control for sticking or corrosion. Test the manual override (if equipped) to confirm it works without power.

Every six months: Inspect the solenoid for corrosion or water ingress. Check battery cable connections for tightness and corrosion. Grease the gypsy with manufacturer-recommended marine grease.

Annually: Pull the windlass and inspect the deck seal. Look for hairline cracks around the mounting bolts. Confirm the gearbox is dry and the seals are intact. Reviewer reports of gearbox gasket failure on the Lewmar Pro-Series are nearly always tied to skipped annual inspection.

Every two to three years: Replace the foot switches if you see any corrosion on the contacts. Inspect the motor brushes if your model allows access. Confirm chain stripper (the plastic guide that peels chain off the gypsy) is in good condition.

Frequently Asked Questions

Final Verdict: Which Anchor Windlass Should You Buy?

After testing, researching, and reading hundreds of owner reports, the best anchor windlass systems in 2026 come down to your boat size and rode type. For the majority of recreational cruisers running 20 to 30-foot sailboats with 1/4-inch G4 chain, the Lewmar V700 remains our top recommendation. The FastFit installation, 316 stainless steel construction, and eight-plus-year service track record make it the safest bet in the category.

If you anchor frequently on fishing spots and want auto free-fall, the Lewmar Pro Fish 700 is the right pick. For heavier all-chain rodes on larger boats, the Maxwell HRCFF8 delivers more pulling power than anything else in this price band. And if you want a true drop-in replacement for an older Maxwell Freedom 800, the Maxwell RC8 is the workhorse the cruising community has trusted for years.

Whatever you choose, match the gypsy to your chain, run properly sized battery cables, and rinse with fresh water after each saltwater trip. A windlass that’s properly matched and maintained will outlast the boat. For related gear guides on marine electronics and onboard systems, browse more of our equipment reviews and buying guides.
