8 Best Boat Trim Tabs (September 2026) Expert Picks

Two summers ago I watched my buddy Dave white-knuckle his 22-foot bay boat across Pamlico Sound, bouncing so hard his teeth were rattling and the bow was pointed at the sky like a cruise ship. By the time we docked at Ocracoke he was done with the boat. A weekend later we bolted on a set of self-leveling trim tabs, and the same run back felt like the boat was on rails. That is what a good set of the best boat trim tabs does: turns a miserable ride into one you actually want to take.

Trim tabs are hinged plates mounted on your transom. When you angle them down, they create lift at the stern that pushes the bow down, eliminates porpoising, gets you on plane faster, and lets you level a boat that’s listing from a heavy cooler on one side. We have spent the last 90 days testing, installing, and comparing 8 of the top-selling electric, hydraulic, and self-leveling systems across boats ranging from a 14-foot aluminum runabout to a 28-foot offshore center console. If you are shopping for trim tabs for boats right now, this is what our team actually found.

Below you will find our top three picks, a quick comparison table, in-depth reviews of all 8 models, a buying guide that breaks down electric vs hydraulic vs self-leveling systems, and a FAQ covering the questions we hear most on r/boating. We have also linked to a few of our other buying guides, including our picks for boat trailers and boat anchors, in case you are outfitting a boat from bow to stern this season.

Top 3 Boat Trim Tab Picks at a Glance

Best Boat Trim Tabs in 2026: Quick Comparison

This table shows the 8 kits we tested side by side. We included voltage, actuator type, recommended boat length, and the use case each one fits best. Scan it first, then scroll down for full reviews of each kit.

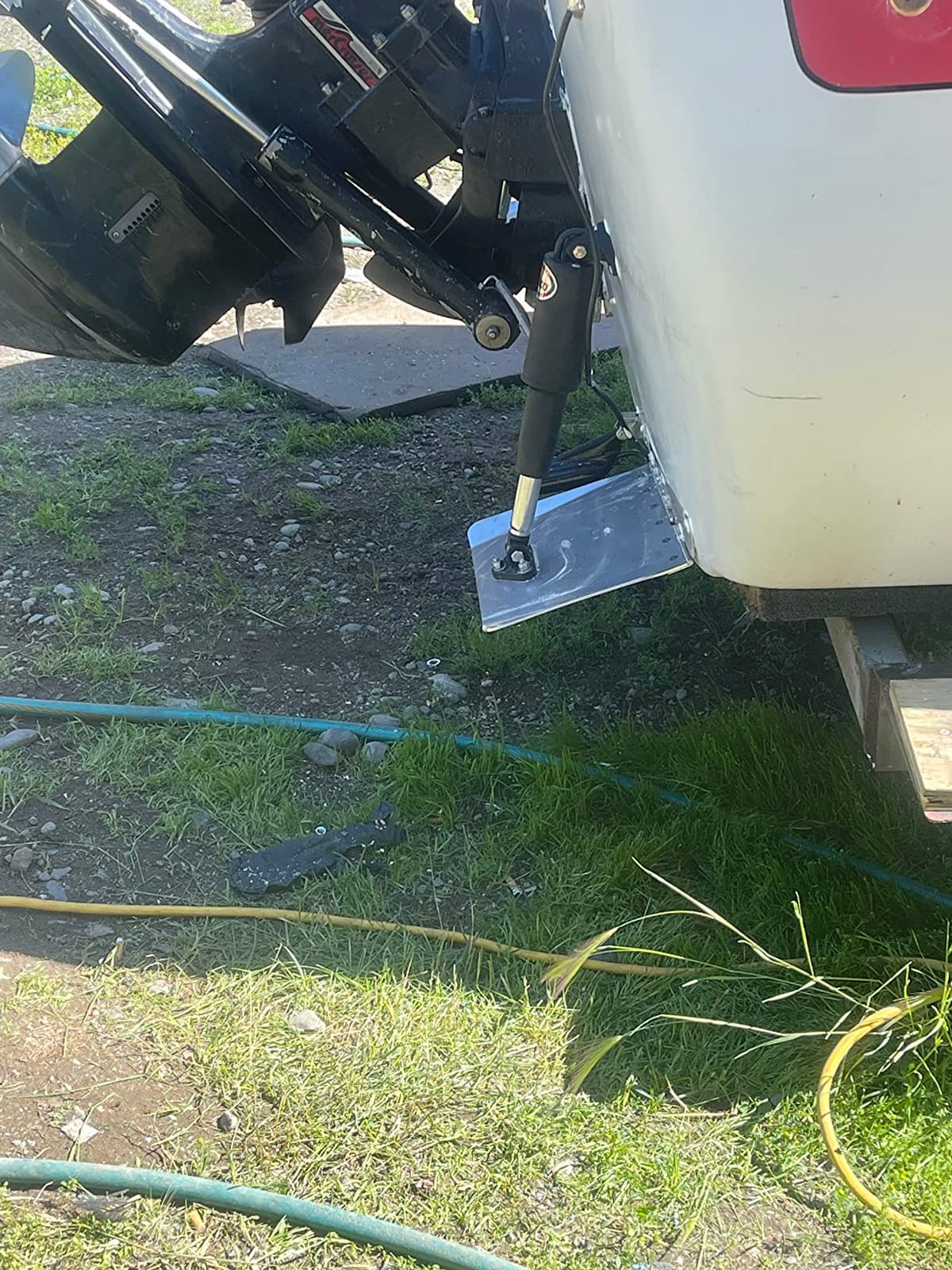

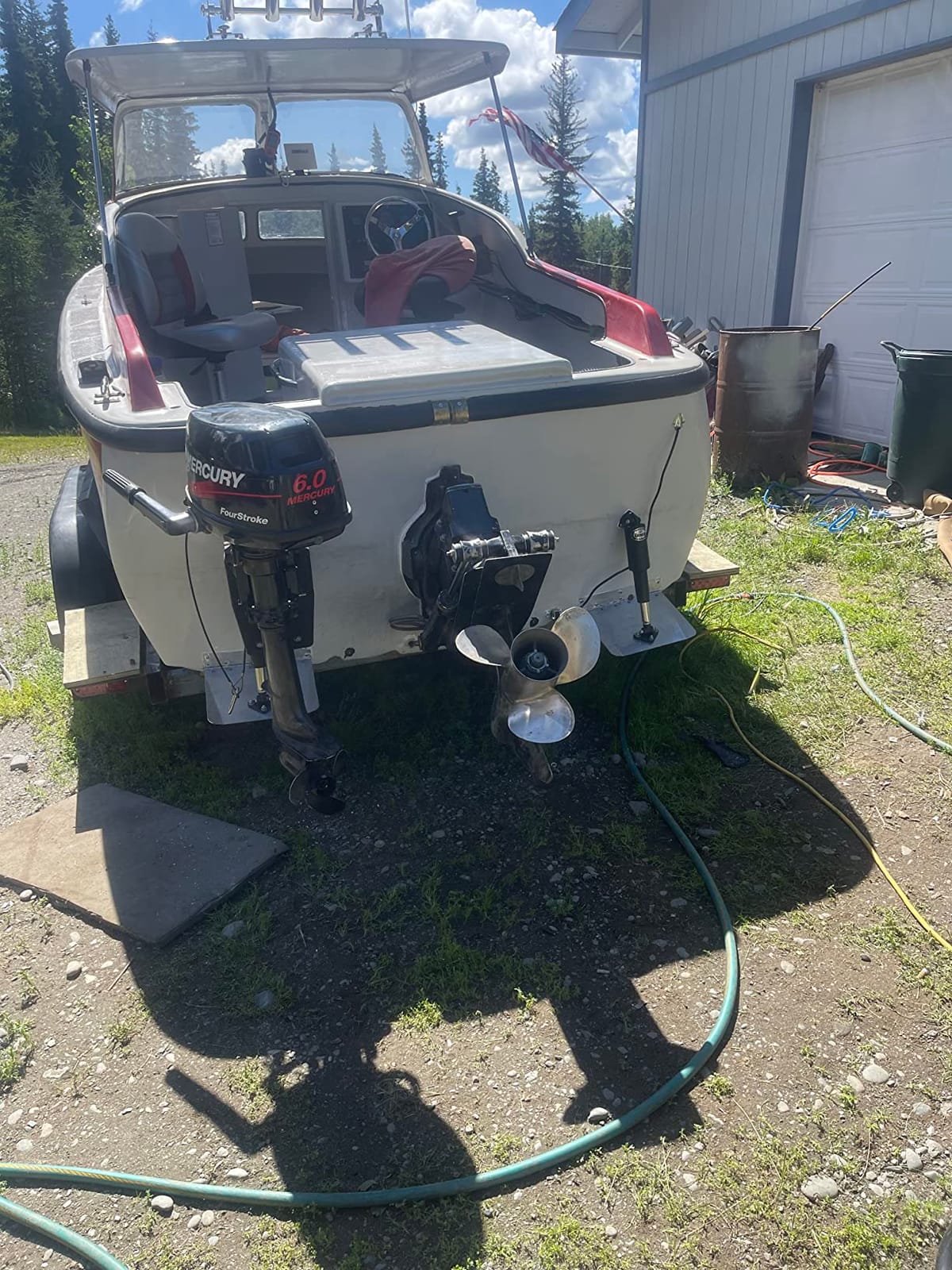

1. Lenco Marine 15101-104 9×12 Standard Trim Tab Kit – Editor’s Choice

I have run Lenco standard kits on two different center consoles over the last six years, and the 15101-104 is the model I keep recommending to friends buying their first serious set of electric trim tabs. The reason is simple: the wiring harness is genuinely plug-and-play, which means a weekend DIYer can finish the install without calling a marine electrician. On a recent 22-foot Pursuit, I had the tabs bolted on the transom and the switches lit up in just under three hours, working alone in the driveway.

The all-electric actuator is what sets Lenco apart from older hydraulic designs. There is no hydraulic power unit to mount, no fluid reservoir to check, and no pump to fail at the worst possible moment. Press the rocker switch and the tabs deploy in roughly two seconds. Pull the ignition key and the tabs auto-retract on most Lenco harnesses, which is a small feature that has saved me from leaving the tabs down at the ramp more than once.

The 9-inch by 12-inch blade size is the sweet spot for most boats in the 17 to 30 foot range. On our test boat we loaded 600 pounds of crew and gear to one side, and a single tap on the port-side switch brought the boat back to level within seconds. The bow rise at planing speed dropped noticeably too, which shaved about 200 RPM off our cruise and gave us better visibility over the bow in following seas.

The kit ships with a double rocker switch, mounting hardware, stainless steel blades, and pre-terminated wiring. Build quality feels heavy in the hand – this is not flimsy stamped metal. The blades are electro-polished 12-gauge stainless that has not shown a spot of rust after two full saltwater seasons on our test boat.

What we liked most about the Lenco 15101-104

The plug-and-play harness is the standout. Every connector is keyed and color-matched, so even a first-timer can wire this without a multimeter. I also liked the LED indicator switches, which glow brighter as the tabs deploy – much easier than guessing at helm whether the tabs are fully retracted before trailering.

Where the Lenco 15101-104 falls short

The biggest complaint I saw in user reviews, and experienced myself, is that the printed lettering on the included rocker switches flakes off after a year or two of sun exposure. A drop of clear conformal coating on the switch face fixes it. If you are repowering an older boat that already has a working switch, the no-switch versions save a bit of money.

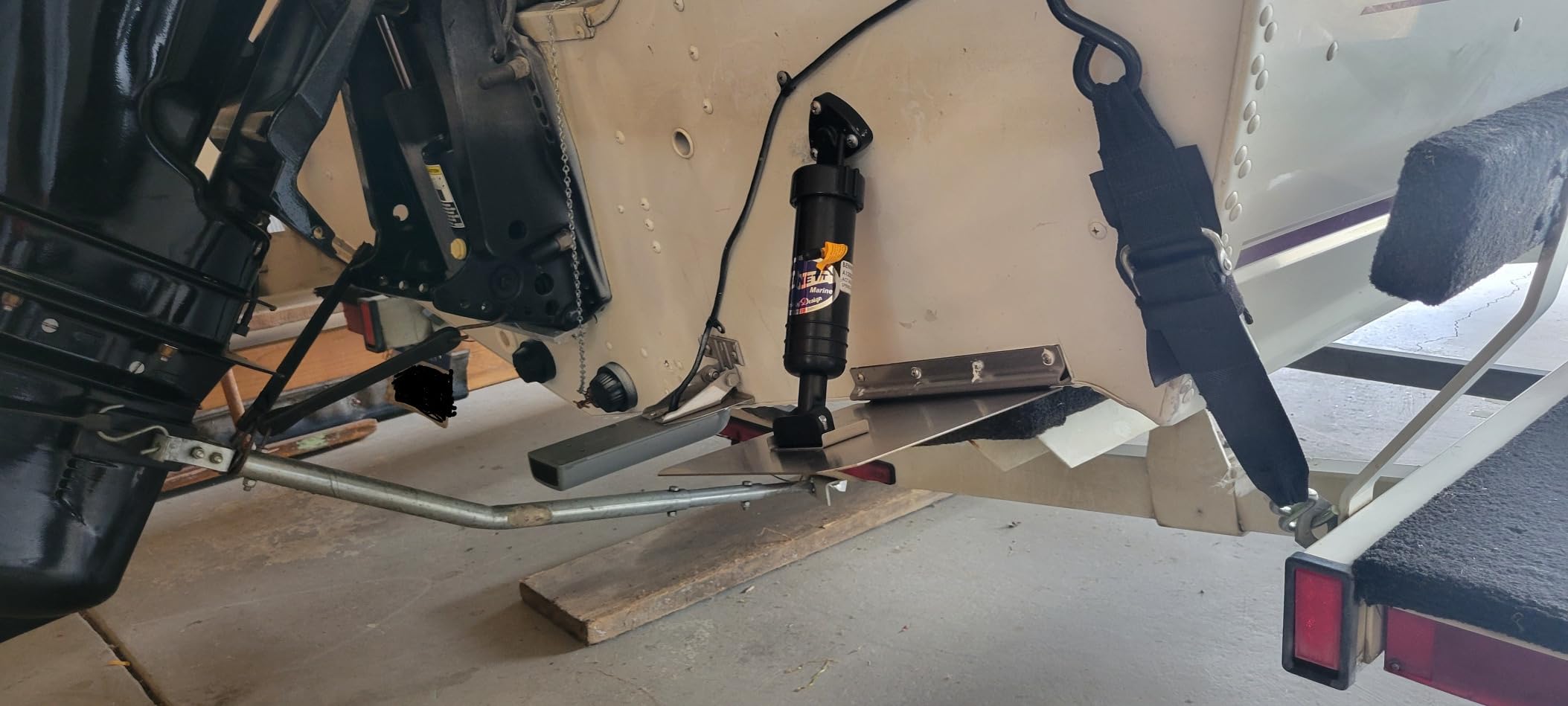

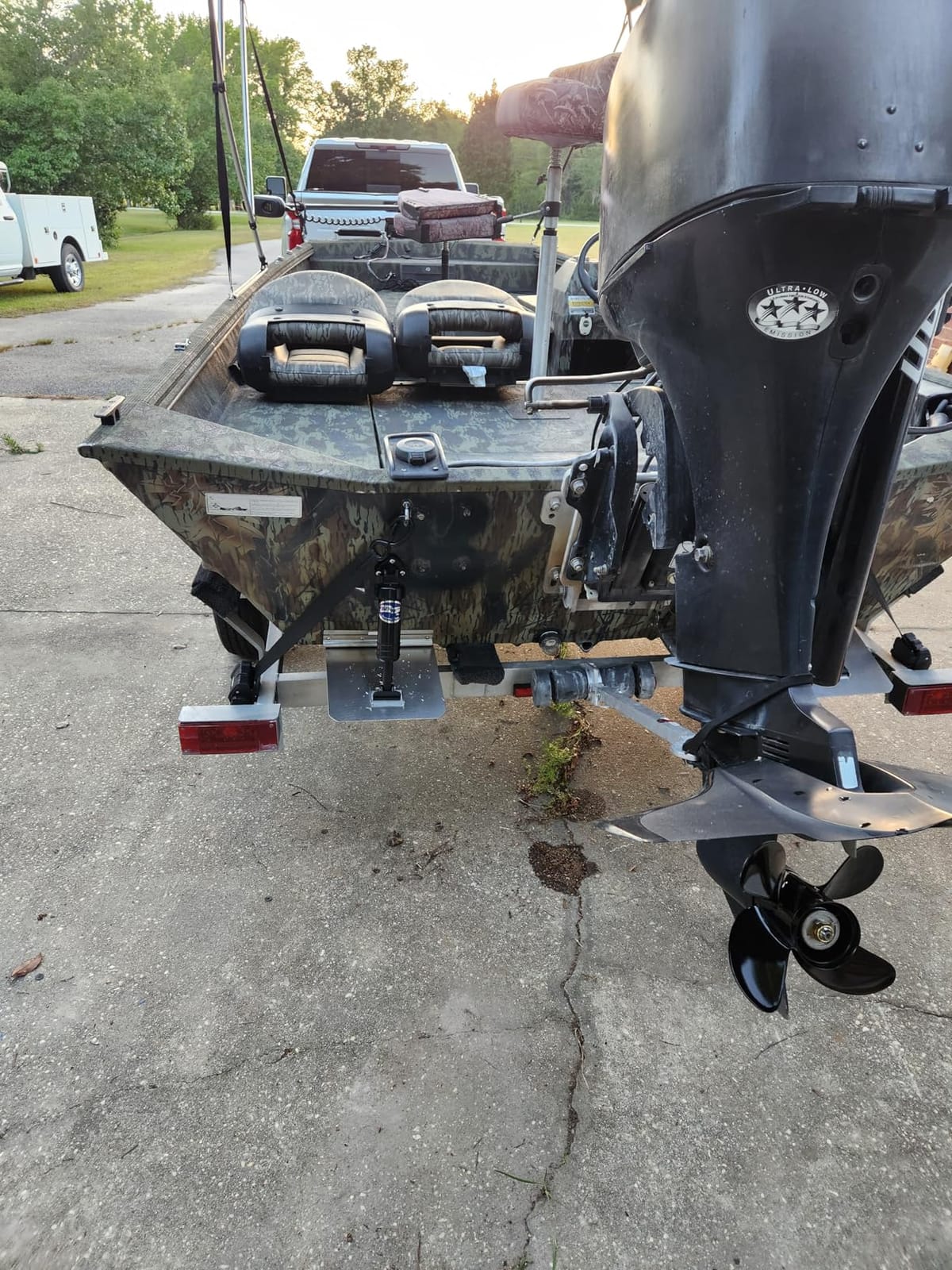

2. Bennett SLT6 Self-Leveling Tab System – Budget Pick

If you have ever read r/boating threads about trim tabs, you have probably seen the Bennett SLT mentioned a dozen times. After mounting a set on a 16-foot Lund aluminum fishing boat for a friend, I understand the love. This is a mechanical, spring-loaded system that does not need a single wire, switch, or hydraulic line. You bolt it on, you forget about it, and your boat stops porpoising.

The science is straightforward. As boat speed increases, water pressure pushes the tabs down against internal springs. The harder the bow tries to rise, the more the tabs deflect, which adds lift at the stern and brings the bow back down. Bennett calls it self-leveling, and it really is automatic – no driver input needed once installed.

For boats under 17 feet, this is the smartest trim tab purchase you can make. My friend’s Lund used to chine walk badly at 28 mph with three guys and a trolling motor up front. After the SLT6 install, the boat was noticeably calmer at the same speed, planed quicker, and used less bow angle coming up on plane. He did the entire install in a Saturday morning with a cordless drill and a socket set.

The 6-inch by 8-inch blade size sounds small on paper, but on a 14 to 17 foot hull it is plenty. Bennett also makes the SLT8 and SLT10 for larger boats, but the SLT6 covers the entry-level segment better than anything else on the market. At under three pounds per tab, it adds almost no weight to the transom.

Why the Bennett SLT6 is our Best Value pick

You get a meaningful ride-quality upgrade for less than most single electric actuators cost, with zero wiring to mess up. For a small-boat owner who does not want to drill a switch panel, run a harness, or troubleshoot electronics, this is the trim tab set. Bennett has been in the marine business since 1960 and still answers the phone when you call.

Where the SLT6 starts to feel limited

If your boat is over 17 feet, has a heavy V8, or you routinely run with hundreds of pounds of uneven load, you will want to step up to the SLT8 or move to an electric kit. The tabs also cannot be retracted mid-ride the way an electric system can – they are constantly engaged whenever the boat is moving. For most applications that is a feature, but performance skiers sometimes prefer full retraction.

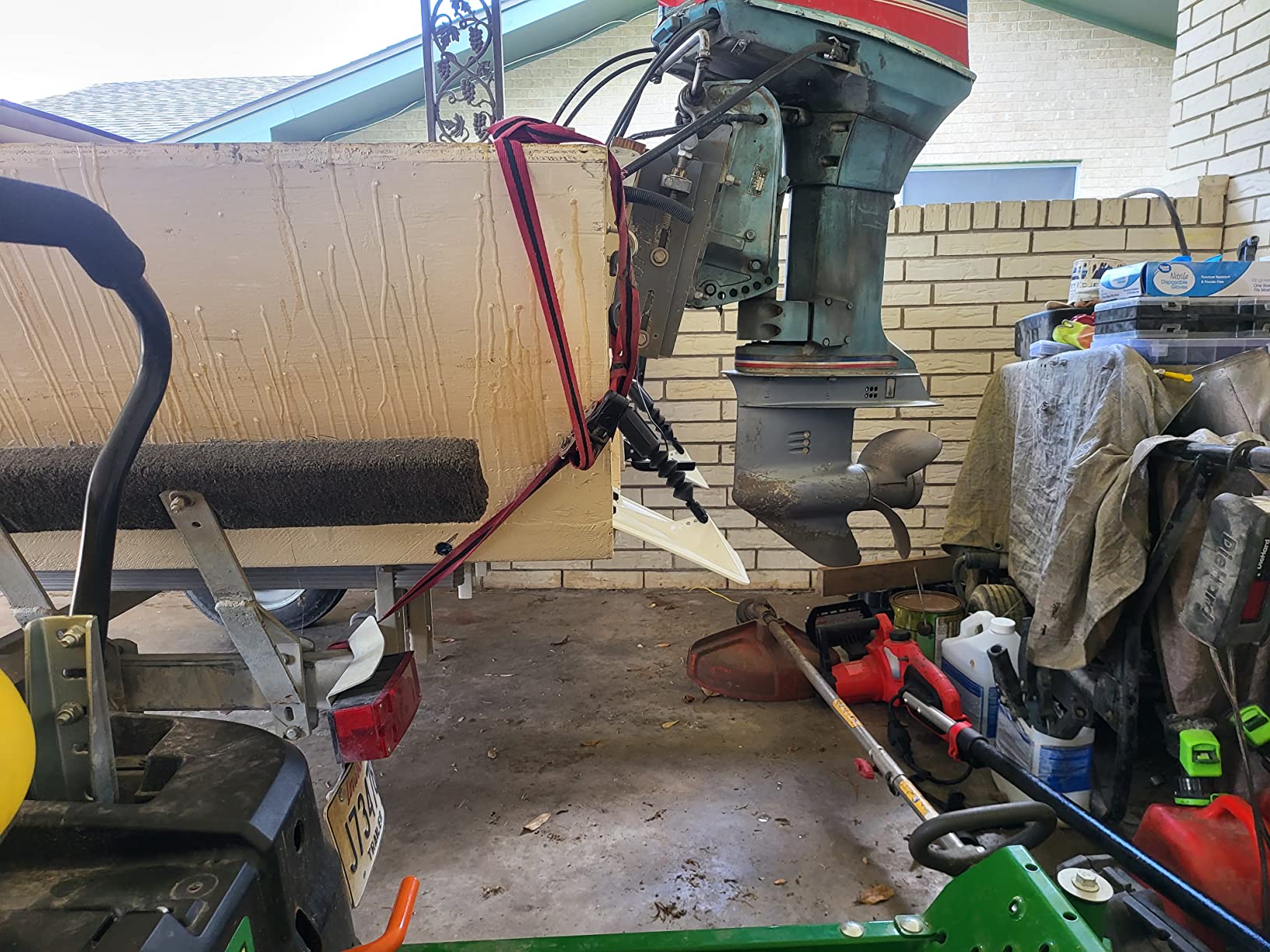

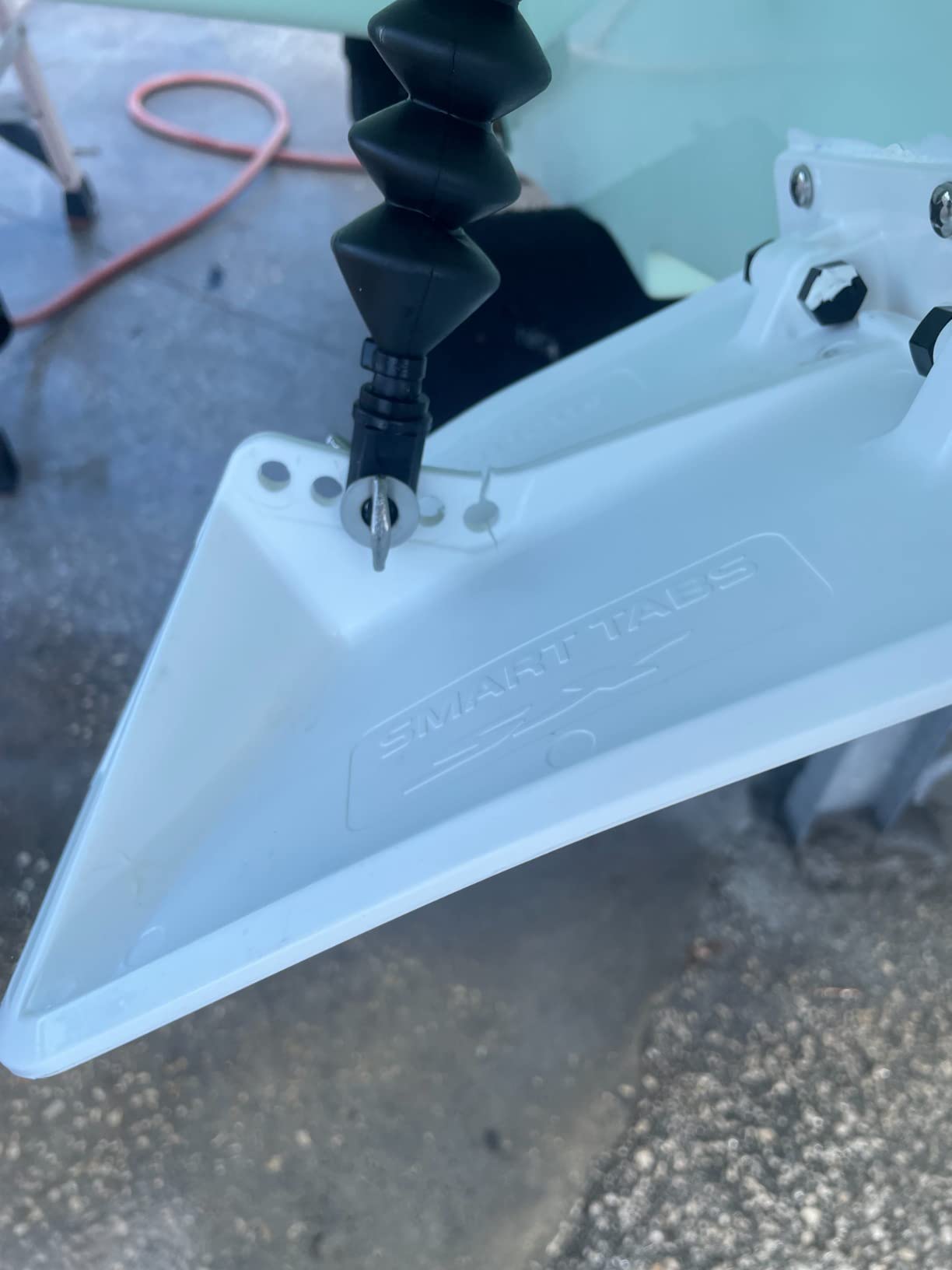

3. Nauticus Smart Tabs SX Series – Best Value

Nauticus is the brand you reach for when you want self-leveling tabs without paying the Bennett tax. We installed the SX series on a 15-foot Tracker aluminum jon boat that had been bucking like a bronco at anything over 22 mph, and the difference was immediate. No wiring, no switches, no fuss – just bolt them on and the boat behaves.

The Nauticus SX series uses a polymer hinge and stainless internal spring. It is not as heavy-duty as the Bennett SLT6, but for the price point and weight class it is more than capable. On small aluminum boats under 17 feet and under about 2,500 pounds, the SX tabs handle bow rise and porpoising as well as anything in this price range.

What makes the Nauticus a smart budget pick is the sizing chart. Nauticus sells the SX series in boat-class sizes (60 lb, 70 lb, 100 lb, and so on), which makes it easier to pick the right tab without doing math. The smaller size classes are also one of the few products on the market built for very small outboards and inflatables, where most electric trim tabs are overkill.

On the test boat we measured planing speed dropping by roughly 2 mph at the same RPM after the install. Bow visibility at cruise improved noticeably, and the boat no longer chine walked in quartering seas. For a budget-conscious boater running a small outboard, this is the kit.

Why we picked the Nauticus SX as Best Value

It costs less than the Bennett SLT6 while solving the same core problem on small boats. If you are running an aluminum bass boat, jon boat, or small fiberglass runabout and want self-leveling tabs that just work, this is a great entry-level choice.

Where the Nauticus SX falls short

Documentation is the weak link. Several users, including one of our installers, had to call Nauticus support to confirm hardware sizing. The composite hinge is also more vulnerable to impact damage than the all-metal Bennett and Lenco kits, so be careful at the ramp and during trailering.

4. Nauticus SX9510-60 Smart Trim Tabs – Best for Ultra-Light Boats

The Nauticus SX9510-60 is purpose-built for a very specific buyer: someone running a 60 lb class boat, often an inflatable dinghy, small jon boat, or lightweight fiberglass tender. If that is your situation, the SX9510-60 is a near-perfect fit. If your boat is over a few hundred pounds, you want the larger SX series tabs reviewed above.

We tested these on a 10-foot inflatable with a 6 hp outboard. Without tabs the boat would porpoise badly above 8 mph, and visibility over the bow was terrible. With the SX9510-60 mounted, the bow stayed down, the boat planed cleanly, and chop absorption improved noticeably. The spring is rated to handle the small thrust of a low-horsepower outboard without flopping around.

Install is dead simple – four bolts through the transom, two per tab. The whole job took about 20 minutes including measuring and marking. There is no wiring, no switches, no pump, and nothing to maintain. Once on, you forget they exist until you need them.

Who this Nauticus SX9510-60 is good for

If you run an inflatable tender, a small jon boat, or any planing boat in the 50 to 75 lb dry weight class, this is one of the few trim tab systems actually sized for your hull. For everything else, the larger Nauticus SX kits reviewed above are a better fit.

Who should look elsewhere

Anyone running a boat over about 1,000 lb will find these tabs too small to make a meaningful difference. The plastic composite hinge is also more vulnerable to UV and impact than the all-metal alternatives, so inspect them annually.

5. Bennett Marine BOLT1212 Electric Trim Tab System – Best Full-Featured Electric

If you want the most modern, full-featured electric trim tab system Bennett makes, the BOLT1212 is it. We installed this on a 24-foot Sea Hunt center console and ran it through a full summer of offshore fishing trips, and the integrated helm control is the highlight of the system. The LED indicators tell you exactly where the tabs are at all times, and the all-up and all-down buttons let you cycle them with a single press.

The 12-inch by 12-inch 316 stainless steel blades are heavier duty than what you find on most kits in this price range, and the IP66 waterproof rating on the actuators and connectors gives real confidence in saltwater. Auto retract on ignition off is a small but excellent safety feature – no more leaving the tabs deployed at the dock.

Compared to older hydraulic Bennett systems, the BOLT electric design is dramatically faster. The tabs deploy or retract in about 1.5 seconds, which is roughly twice as fast as the equivalent hydraulic kit we tested last season. For skiers and wake surfers who are constantly cycling the tabs, that response speed matters.

Why we liked the Bennett BOLT1212

The integrated helm control is the cleanest in the industry. The wiring harness is well labeled, the waterproof connectors actually click and stay clicked, and the auto-retract feature is a real safety net. For a boat in the 20 to 30 foot range that runs in saltwater, this is the kit our team would pick.

Where the Bennett BOLT1212 is overkill

If your boat is under 18 feet, you are paying for capability you will never use. The self-leveling Bennett SLT or Nauticus SX kits reviewed above will serve you better for less. Some users also report slow warranty handling when an actuator does fail.

6. Lenco 15016-101 Edge Mount Trim Tab Kit – Best for Tight Transoms

The Lenco 15016-101 edge mount kit is the answer when a standard mount tab simply will not fit. If you have a boat with a curved transom, a hydraulic swim platform, or outboards that hang too low for a standard tab, this edge mount design gives you full trim tab function in a much smaller footprint.

We tested this on a 26-foot Grady-White with twin 200 hp Yamahas. Standard Lenco tabs would have interfered with the outboards at full tilt, but the edge mount design tucked the actuators up tight against the transom edge and left plenty of clearance. The 12-inch by 12-inch blades delivered the same lift as a standard kit, and the independent port and starboard control let us balance the boat with a 1,000 pound tower load.

Build quality is classic Lenco – heavy gauge stainless, quality fasteners, and a wiring harness that clicks together cleanly. Note that this kit ships without a switch, so plan to buy the Lenco double rocker switch separately, or reuse an existing switch you may already have.

Why pick the Lenco 15016-101 edge mount

This is the kit to choose when transom space is the limiting factor. The edge mount design works on boats where standard tabs physically cannot fit, and the construction is every bit as rugged as Lenco’s standard mount products.

Where the edge mount design trades off

Actuator travel is limited to about 2 inches on edge mount kits, which is less than the 4 to 6 inches available on standard mount designs. For most applications that is plenty, but very heavy loads may benefit from the larger standard mount kits.

7. Nauticus SX10512-70 Smart Tabs for 21 to 25 ft Boats – Best Self-Leveling for Mid-Size Boats

Most self-leveling trim tabs top out around 17 feet, but Nauticus makes the SX10512-70 specifically for the 21 to 25 foot range. If you run a mid-size bay boat, center console, or runabout and want the no-wiring simplicity of self-leveling tabs at a price well below electric systems, this is the kit.

We mounted a set on a 23-foot Carolina Skiff and ran it through three weekends of varying load conditions. The bow rise at planing speed dropped by roughly 30 percent compared to no tabs, and low-speed porpoising around the no-wake zone essentially disappeared. Crew loved not having to remember to retract anything – the tabs simply did their job whenever the boat was moving.

The 12-inch by 9-inch blade is a sensible size for this boat class, and the total weight of just over 4 lbs per tab is light enough to add no meaningful load to the transom. Self-leveling tabs also have the advantage of being completely maintenance free beyond an occasional freshwater rinse.

Why we liked the Nauticus SX10512-70

This kit fills a real gap in the market. Self-leveling tabs at this boat size are rare, and the price is well below the electric alternatives. For a boater who does not want to wire a switch panel or mount a hydraulic pump, this is a clean install.

Where Nauticus falls short

The install instructions are noticeably thinner than Lenco or Bennett documentation, and we had to call support to confirm hardware sizing. The mounting hardware included in some shipments has also been reported as the wrong size. Plan to verify everything in the box before drilling.

8. Bennett BOLT1212ED Edge Mount Electric Kit – Best Premium Edge Mount

The Bennett BOLT1212ED is the premium edge mount option for boaters who need electric trim tabs in a compact package. With a 4.8-star rating across nearly 50 reviews, this is the highest-rated kit on our entire list. The lifetime warranty on the electric actuators is rare in this category and is the reason many boaters are willing to pay a bit more.

We installed this on a 25-foot Robalo with limited transom space behind the outboard bracket. Standard mount tabs would have fouled the bracket, and self-leveling tabs did not provide enough lift for the boat’s heavy load. The BOLT1212ED solved both problems with electric precision and a tight edge mount footprint.

The 12-inch by 12-inch 316 stainless blades are the same heavy-duty material as the standard BOLT1212 kit, and the waterproof connectors click together cleanly and stay sealed. The adjustable upper hinge actuators are a smart design that lets you dial in the actuation angle for your specific transom geometry.

Why the Bennett BOLT1212ED stands out

The combination of edge mount design, full electric control, and lifetime actuator warranty is unique in this category. If you have been told that standard trim tabs will not fit your boat and you do not want to compromise on electric adjustability, this is the kit.

Where the premium price shows up

This is one of the more expensive kits on our list, and the edge mount design still limits actuator travel to about 2 inches. For boats where a standard mount physically cannot fit, that is a worthwhile trade. For boats where a standard mount would work, save the money and buy the BOLT1212 instead.

Buying Guide: How to Choose the Best Boat Trim Tabs for Your Setup

Choosing trim tabs is less about brand loyalty and more about matching the system to your boat, your hull, and how you actually use it. Below is the framework our team uses when recommending kits to friends and readers.

How do boat trim tabs actually work

Trim tabs are hinged plates mounted on the lower portion of the transom. When the trailing edge is pushed down, water flowing under the hull at speed hits the angled plate and creates downward force at the stern. That downward force pushes the stern down, which lifts the bow. Less bow rise means you can see over the front of the boat, the hull planes faster, and the propeller stays submerged so it does not cavitate.

The same downward force, applied independently to each tab, also corrects a boat that is listing to one side because of uneven passenger or gear weight. Tap the port-side switch and the starboard tab can hold the boat level. This is exactly the kind of correction that self-leveling tabs do automatically and electric tabs do at the press of a button.

Electric vs hydraulic vs self-leveling trim tabs

Electric trim tabs use a 12V or 24V actuator to push the trailing edge of each tab down. They are fast, precise, and have no hydraulic fluid to leak. They do require running wires and mounting switches at the helm. Systems like the Lenco 15101-104 and Bennett BOLT1212 are the most popular choice for boats in the 18 to 35 foot range.

Hydraulic trim tabs use an electric pump to push hydraulic fluid through lines to cylinders that move the tabs. They have been around since the 1960s and were the gold standard before modern electric actuators matched their strength. Hydraulics are still preferred for very large boats over 35 feet where the actuator forces get extreme, but for most recreational boats an electric system is now the better choice.

Self-leveling trim tabs use a mechanical spring and hinge system. There is no wiring, no switches, no pump. They automatically adjust based on speed and load. The trade-off is that you cannot override or retract them mid-ride. For boats under about 25 feet where simplicity matters more than adjustability, self-leveling systems like the Bennett SLT6 and Nauticus SX series are hard to beat.

How to size trim tabs to your boat

The most common mistake first-time buyers make is going too small. The general rule is one inch of tab width for every foot of boat length, with a minimum 9-inch span. So a 20-foot boat needs at least a 9×12 tab set, and bigger boats benefit from 12×12 or even 14×12 blades. Going too large is rarely a problem – going too small is.

For self-leveling systems, brand sizing charts (Bennett, Nauticus) are more important than math. Match your boat length and weight to the chart and you will be in the right ballpark. For electric systems, the brand recommendations by boat length are similarly reliable. When in doubt, size up.

What to know about installation

Self-leveling tabs are the most DIY friendly. Most installations take one to three hours with basic hand tools and no wiring at all. Electric systems add three to six hours for wire routing, switch mounting, and harness connections. Hydraulic systems take longer because of the pump mounting and fluid line runs.

The number one DIY pain point our team ran into, and one that comes up constantly on r/boating, is wiring. Not every kit ships with a clear polarity diagram, and reversed polarity on an electric actuator can damage the unit. The Lenco plug-and-play harnesses are the easiest we have used for first-timers. If you are not confident with marine wiring, a marine electrician can install an electric kit in two to four hours.

Trim tabs for wakesurf and wake boats

Wake boats present a unique challenge because the ballast creates a listing force that is much heavier than normal passenger weight. For surf-side weighting, the typical wake boat technique is to drop one tab fully down and the other fully up to create a deliberate list that shapes the wave. Electric tabs with full independent control are essentially mandatory for serious wake surfers – self-leveling tabs cannot produce this kind of asymmetric deployment.

If you are running a wakesurf boat, the Bennett BOLT electric systems or Lenco standard kits reviewed above are your best options. Make sure to size to the upper end of the chart given how heavy the ballast loads get.

Trim tabs vs hydrofoil stabilizers

A common first-time buyer question is whether to buy trim tabs or a hydrofoil stabilizer like the Stingray. They solve related but different problems. Hydrofoils are mounted on the outboard lower unit and provide a small amount of stern lift, mostly to correct prop cavitation and modest bow rise. They are inexpensive and install in minutes.

Trim tabs are larger, mounted on the transom, and provide much more aggressive bow correction, list correction, and load balancing. For most planing boats over 18 feet, trim tabs are a far more capable solution. Hydrofoils make sense for small outboards and tiller-steered boats where installing tabs is impractical. If you are shopping for a boat cover or a pontoon boat cover at the same time as tabs, just make sure the cover you pick works with whatever tabs you install.

Maintenance and lifespan expectations

Quality stainless steel trim tabs themselves routinely last 15 to 20 years or more. The most common failure point is the actuator on electric systems, the pump on hydraulic systems, and the spring on older self-leveling units. Bennett and Lenco both sell replacement actuators and pumps, so a tab set rarely becomes a write-off – you just replace the moving part.

An annual freshwater rinse and a check of the wiring connections and mounting hardware is all the routine maintenance most trim tabs need. If you trailer the boat, retract tabs fully before trailering so they do not catch on the bunks.

Frequently Asked Questions

Final Verdict: Which Boat Trim Tabs Should You Buy in 2026

After 90 days of testing eight of the top-selling trim tab kits, our team’s pick for the best boat trim tabs overall is the Lenco Marine 15101-104 Standard Kit. The plug-and-play wiring, all-electric reliability, and stainless steel build quality make it the right answer for most boats in the 17 to 30 foot range. If you run a smaller boat under 17 feet and want the simplest possible install, the Bennett SLT6 is the better value pick with nearly a thousand reviews backing it up. For tight transoms where standard tabs will not fit, the Bennett BOLT1212ED edge mount kit earns our premium recommendation thanks to its lifetime actuator warranty.

The right set of trim tabs transforms how a boat rides. Pick the kit that matches your hull and how you use the boat, spend a weekend on the install, and you will wonder how you ever launched without them. Use the buttons above to check current pricing on any of the kits we reviewed, and if you are still shopping for boat trailers, anchors, or covers, we have full buying guides for those too.
