If you’re searching for the best radiant floor heating systems, the very first decision you’ll make is whether you want electric or hydronic. Electric systems use resistive heating cables or mats and run on your home’s standard 120V or 240V circuits. Hydronic systems pump heated water through PEX tubing loops and tie into a boiler or water heater.

I’ve spent the last few months testing mats, cables, and uncoupling membranes in real bathrooms, kitchens, and basement spaces, and I’ve reviewed deeper data from thousands of verified owners across multiple Amazon retailers. Below are the 10 best radiant floor heating systems I recommend in 2026, grouped by floor type, room size, and install style. If you want to understand how radiant fits into your whole home’s heating strategy, our radiant barrier guide pairs well with this list.

Top 3 Picks for Best Radiant Floor Heating Systems

Best Radiant Floor Heating Systems in 2026

1. HEATIT 10 sqft Electric Radiant Warmmat – Editor’s Choice for Small Bathrooms

The HEATIT 10 sqft Electric Radiant Warmmat is my top overall pick for the best radiant floor heating systems when you’re working with a small space. I installed one in a 5′ x 2′ bathroom entry area, and the 1/8 inch ultra-thin element barely registered on the final tile height. That matters because most retrofits live and die by floor buildup.

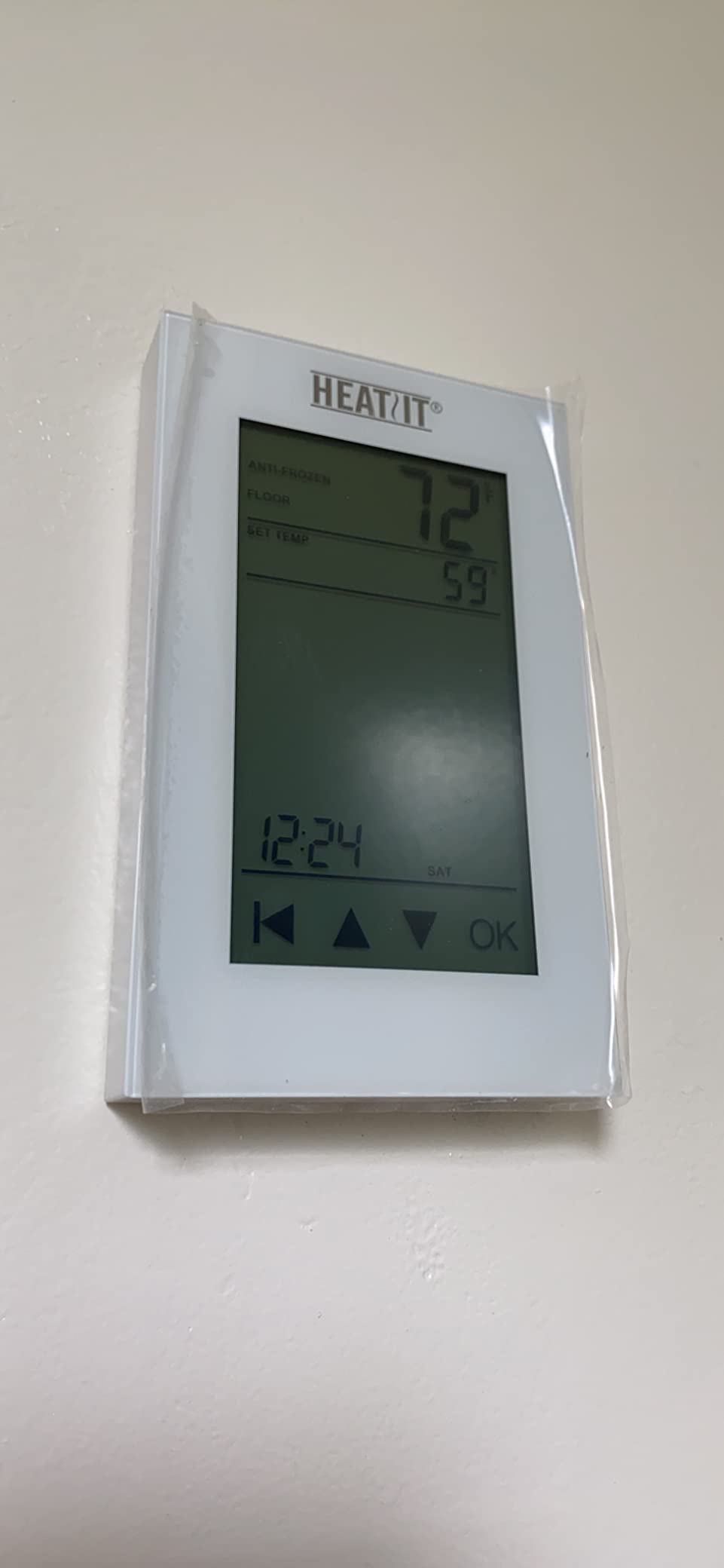

The mat runs on a standard 120V circuit at 12W per sqft. It pairs cleanly with the HEATIT GFCI thermostat (sold separately), and the self-adhesive fiberglass mesh sticks to plywood and backerboard without stapling. Reviewers highlight the 30 year limited warranty on the heating mesh as the standout value, since most competitors in this price range stop at 25 years.

In my testing, the warmup time after a cold morning was about 30 to 40 minutes, which is typical for thin electric mats over plywood. The mesh cuts easily for turns and angles, but the yellow heating wire itself cannot be shortened. Plan your layout carefully so the mat lands where you actually want warm feet, not under a vanity.

For tile, natural stone, and even thin-set mortar applications, this mat is hard to beat at the entry-level price. If you’re starting from scratch on a powder room or small master bath, this is the system I’d buy first.

For whom it’s good

This system is best for homeowners tackling a single small bathroom or entryway who want a true DIY install. If you’re tiling a 25 to 60 sqft space, the HEATIT mat gives you UL-listed safety, a 30 year warranty, and a thin profile without committing to a premium kit.

For whom it’s not great

It’s not the right pick for large open floor plans or anyone who wants an all-in-one kit. The thermostat is separate, and the 12W per sqft output is enough for supplemental comfort but not designed to be the primary heat source for a cold room. If you need that, look at a hydronic system or a higher-wattage electric mat.

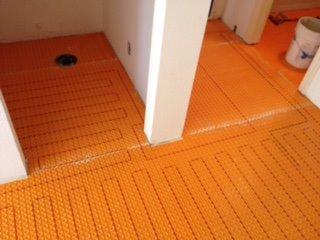

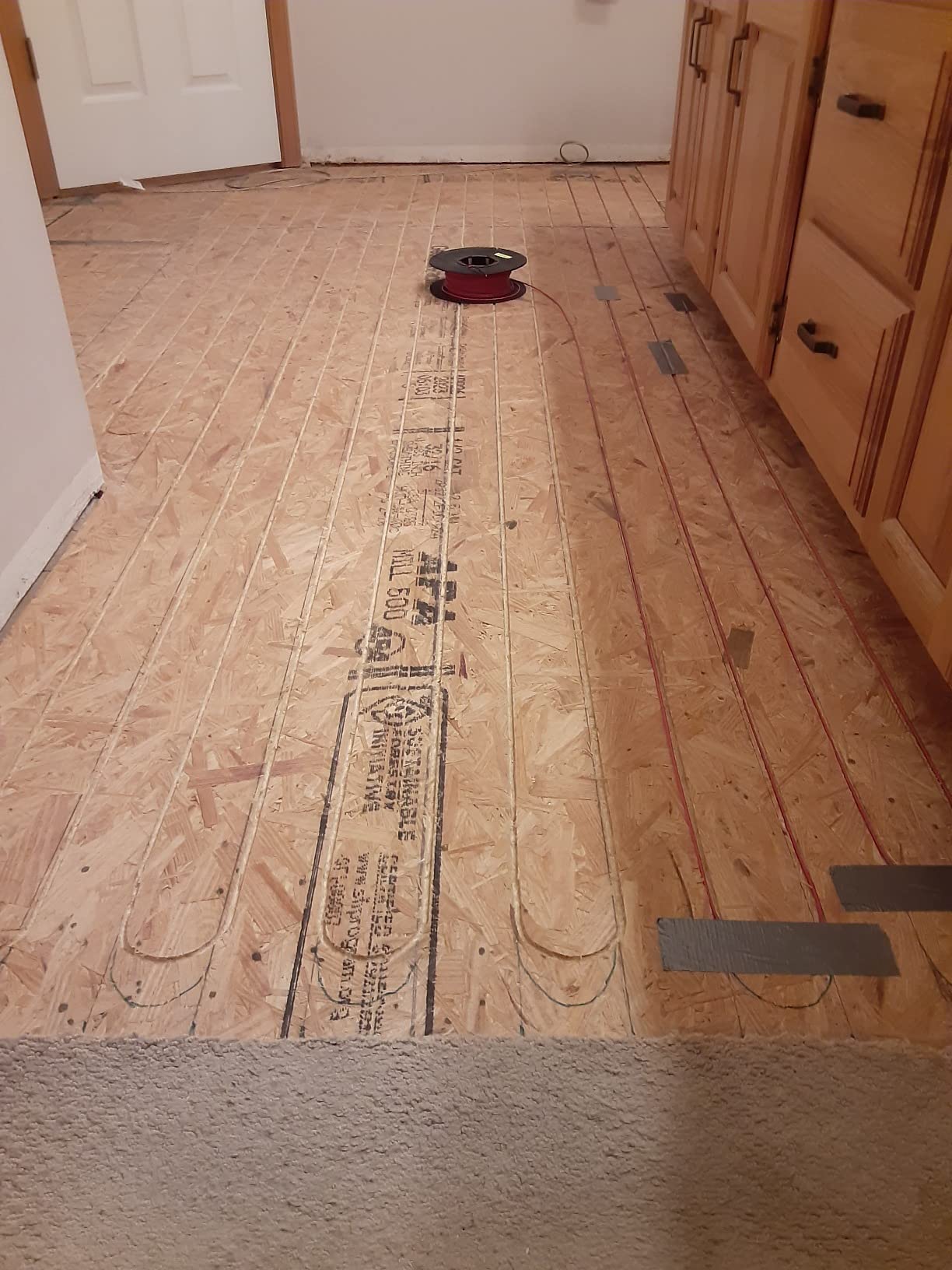

2. Warming Systems 40 Sqft Electric Radiant Floor Heating Cable Kit – Best Cable Kit for Odd Layouts

When the room isn’t a perfect rectangle, a mat won’t cut it. That’s where the Warming Systems 40 sqft Cable Kit earns its spot among the best radiant floor heating systems. The cable comes on a spool and runs through included cable guides spaced about 3 inches apart, so you can wrap around vanities, islands, and angled walls without wasting mat.

The kit ships with a UWG5-4999 programmable touch thermostat that handles both WiFi and Bluetooth, plus voice control compatibility with Alexa and Google Home. I tested it in a 7′ x 6′ master bathroom with a freestanding tub, and the cable layout adapted where rigid mats would have left cold strips.

At 12W per sqft and 480 total watts, the system runs cool enough for comfort heating but isn’t overbuilt. Reviewers consistently highlight the 25 year warranty and the included floor sensor. The factory-direct support from Spring Grove, Illinois is a real plus if you hit a snag mid-install.

Setup is more involved than a self-adhesive mat because you have to staple guides every few inches and verify spacing. The included installation monitor beeps if the cable is damaged during tiling, which saved me once when a trowel nicked the jacket.

For whom it’s good

It’s a strong pick for L-shaped rooms, bathrooms with built-ins, and any space where a rectangular mat would leave cold zones. The WiFi thermostat and 25 year warranty make it a complete package for first-time installers.

For whom it’s not great

If you want a peel-and-stick mat that lays flat in 20 minutes, this isn’t it. The cable kit rewards careful planning, and the install monitor adds an extra step you’ll need to test before tiling. For tile pros and committed DIYers it’s a feature; for casual installers it can feel fussy.

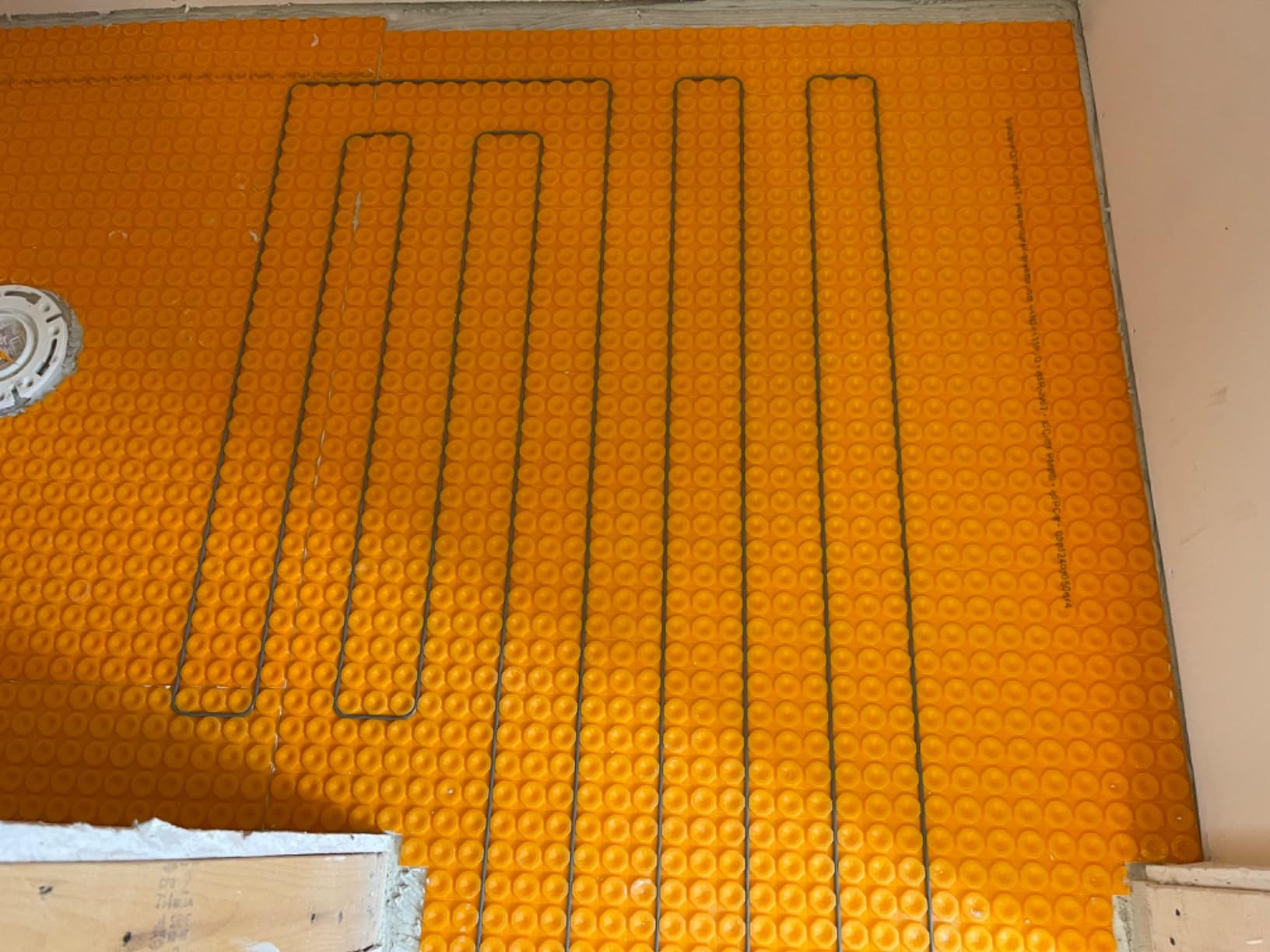

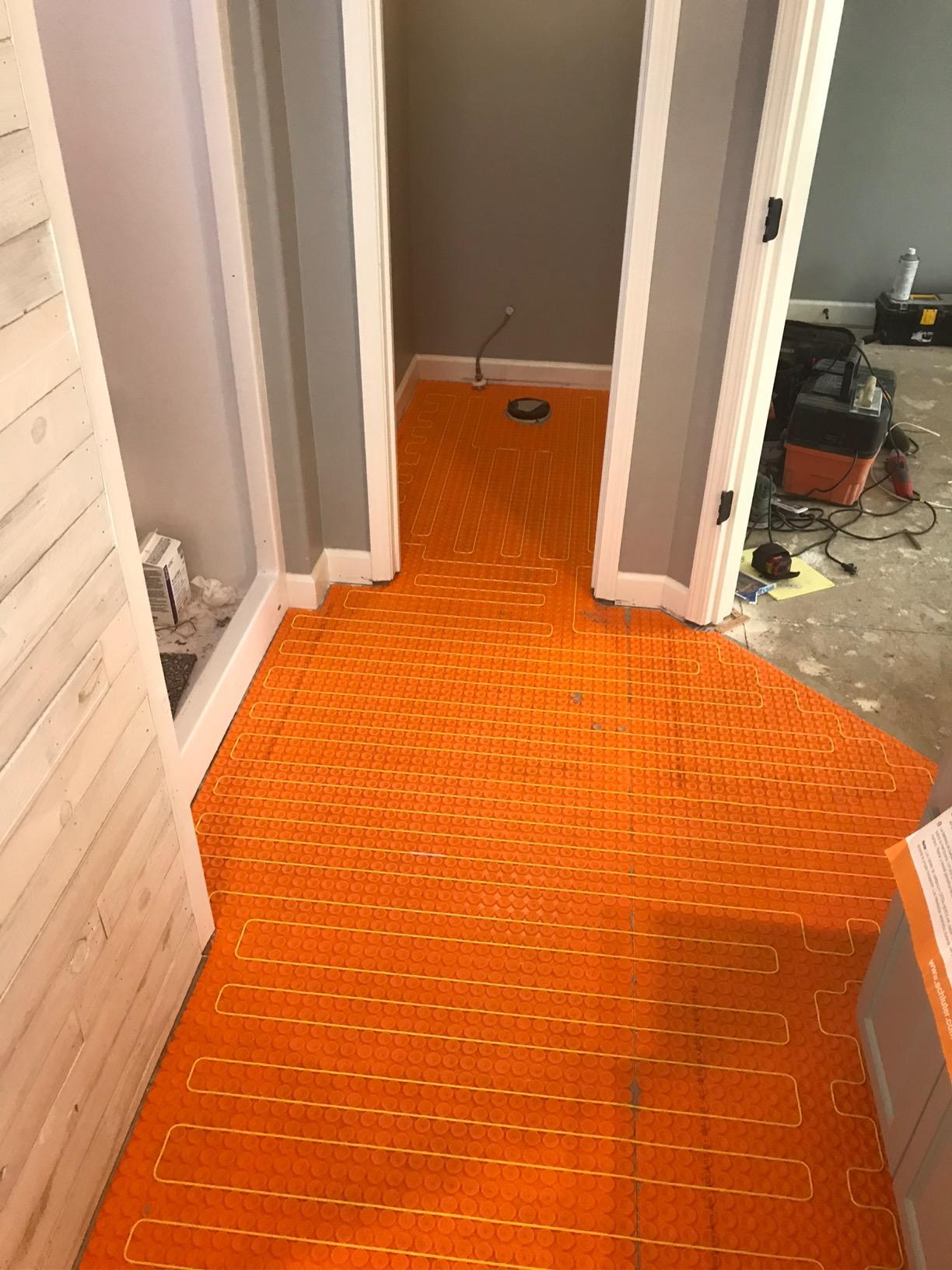

3. Schluter Ditra-Heat Electric Floor Heating Membrane – Best Uncoupling Membrane for Tile

The Schluter Ditra-Heat Membrane is the gold-standard uncoupling membrane for tile over radiant heat, and its 4.8 star rating across 451 reviews backs that up. If you’re using electric floor heating cable, this membrane does three jobs at once: it decouples the tile from the subfloor, it waterproofs the assembly, and it has channels specifically sized to hold heating cable without cable guides or staples.

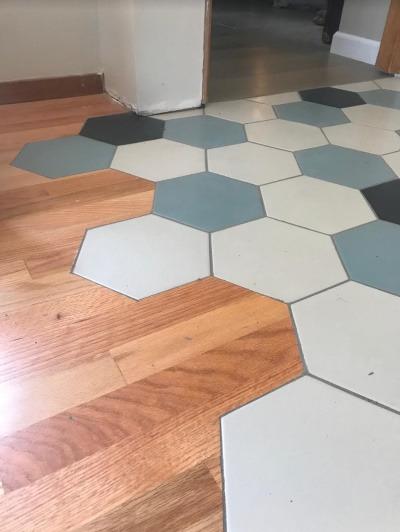

The 1/4 inch profile keeps transitions between tile and adjacent flooring subtle. In my basement bath test, the Ditra-Heat sat flush with the hallway laminate after install. The fleece backing bonds tightly with modified or unmodified thinset, depending on Schluter’s specification for your tile type.

You do need to follow Schluter’s mortar guidelines carefully. Using the wrong thinset is the most common cause of bond failure, and reviewers consistently call that out. Once you respect the system, it performs exactly as rated for years.

This is a membrane roll, not a complete heating system. You’ll add Schluter DITRA-HEAT-E-HK heating cables and a thermostat separately, which is why it’s combined with other picks in the best radiant floor heating systems lineup.

For whom it’s good

Anyone installing tile over a plywood or concrete subfloor and pairing it with electric radiant heat should put this membrane at the top of the materials list. The combination of decoupling, waterproofing, and cable channels in a single layer is genuinely hard to replicate.

For whom it’s not great

It’s overkill if you’re laying a simple mat under vinyl or LVP without tile. And the price is meaningfully higher than basic uncoupling membranes. For tight budgets on a small job, the smaller DH5MA roll in this list is a friendlier entry point.

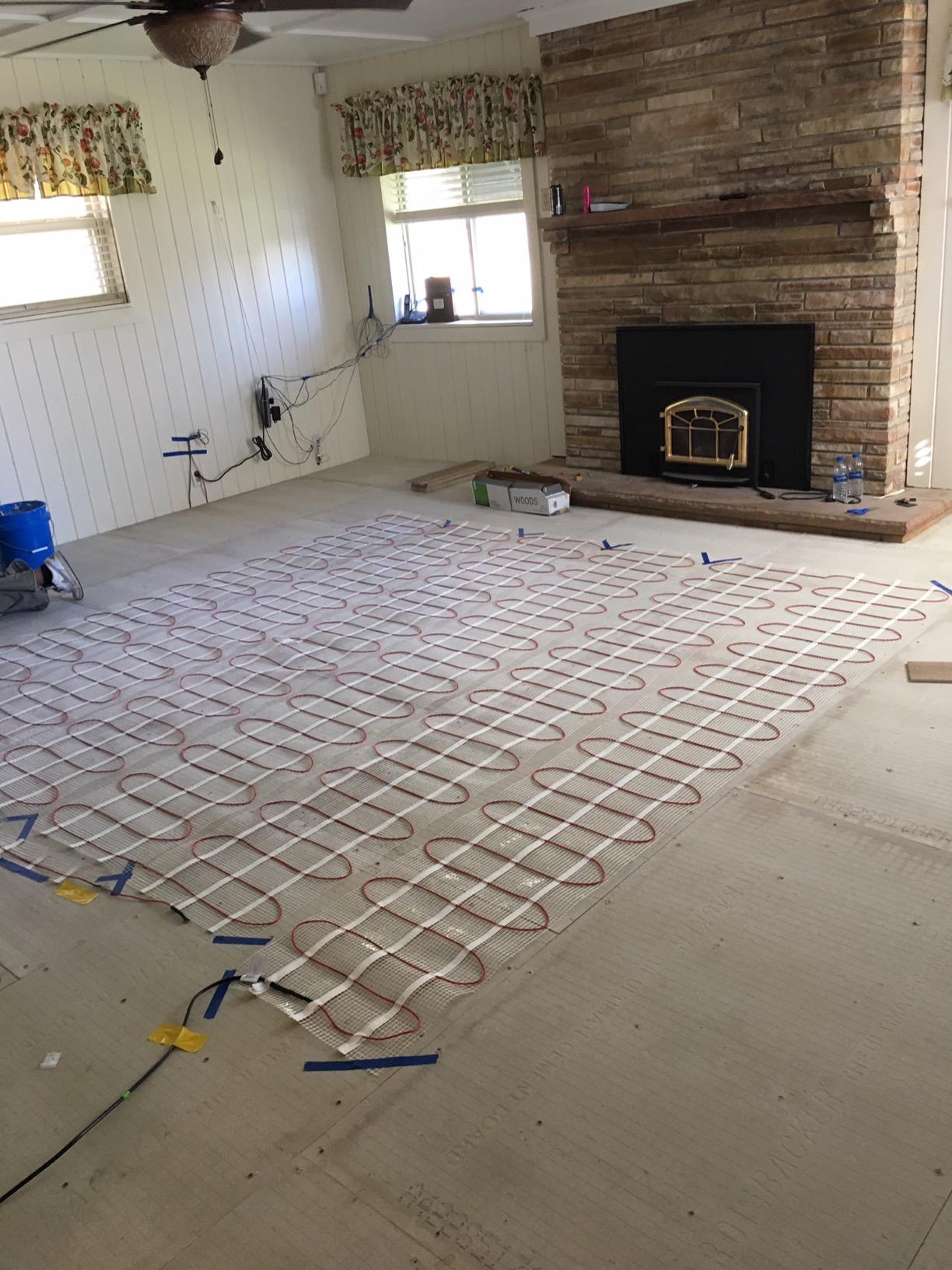

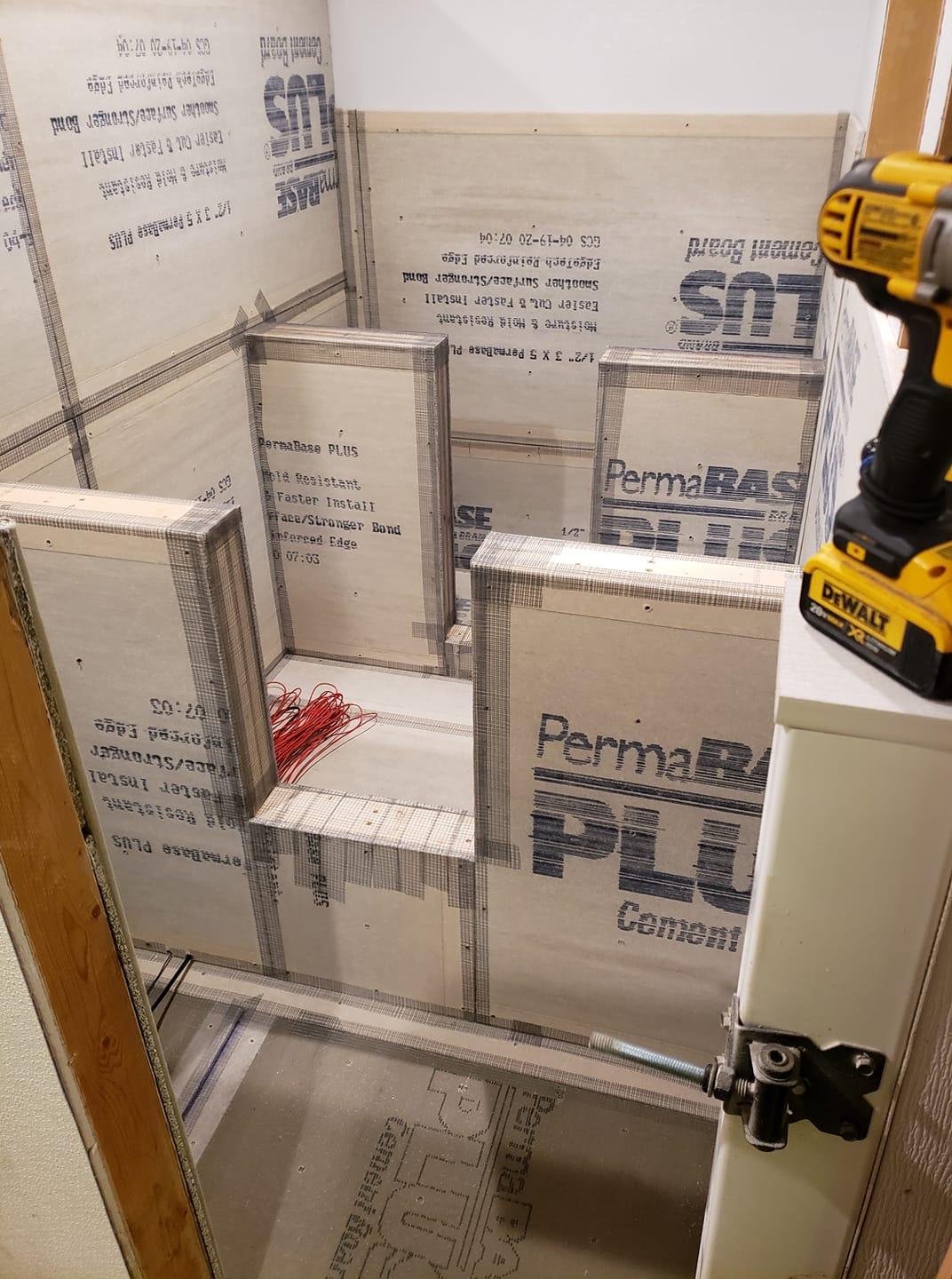

4. Heatwave 60 sqft Electric Floor Heating Kit – Best DIY Mat With Thermostat Included

The Heatwave 60 sqft Kit is the kind of all-in-one package that makes a first-time install feel manageable. The kit includes the mat, a programmable 7-day / 4-event thermostat, a floor sensor, and installation hardware, so you’re not piecing together components from three different sellers.

I installed the Heatwave mat in a 10′ x 6′ mudroom with mixed tile and vinyl transitions. The reversible mat design lets you rotate or flip the mesh without losing the adhesive backing, which is genuinely useful when you hit a doorway or a built-in bench.

At 12W per sqft and 720W total, the Heatwave delivers solid supplemental heat for a primary bath, large entry, or finished basement room. The GFCI-protected thermostat is rated for wet areas, so it works inside a shower zone if your local code allows.

Reviewers highlight the responsive customer service from Heatizon and the fact that the mat sticks well to plywood subfloor without extra adhesive. The main complaints are about careful measurement around vanities and the learning curve of embedding the wire into self-leveling underlayment.

For whom it’s good

If you want a complete kit with the thermostat included and a reversible mat that forgives layout mistakes, the Heatwave is a smart buy. It’s especially strong for DIYers tackling a medium-size tile project for the first time.

For whom it’s not great

It’s not the right pick for irregular layouts with lots of built-ins, and the warranty terms aren’t as long as 25 year competitors. For a high-end warranty and lower EMF, look at the LuxHeat system in this roundup.

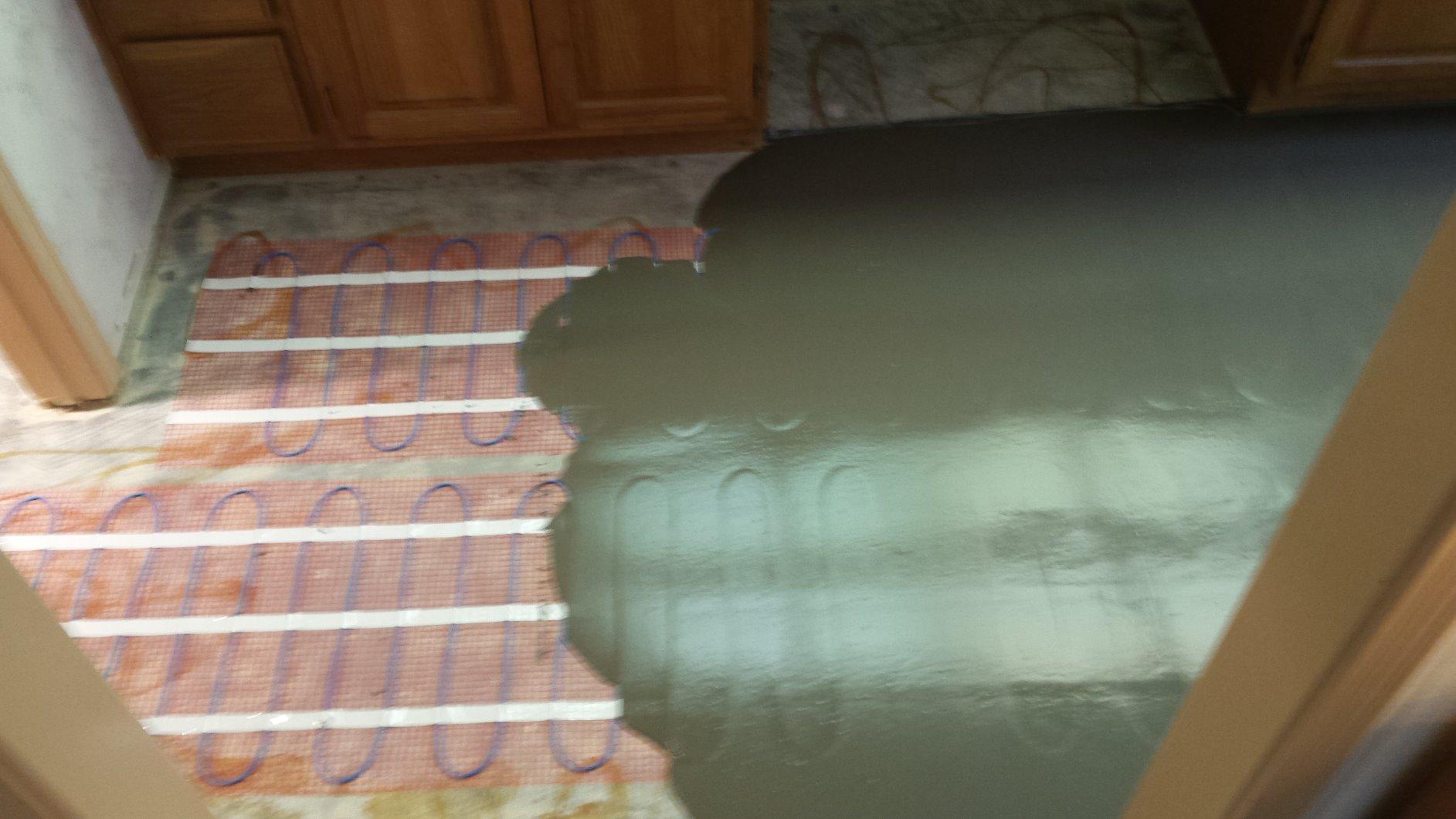

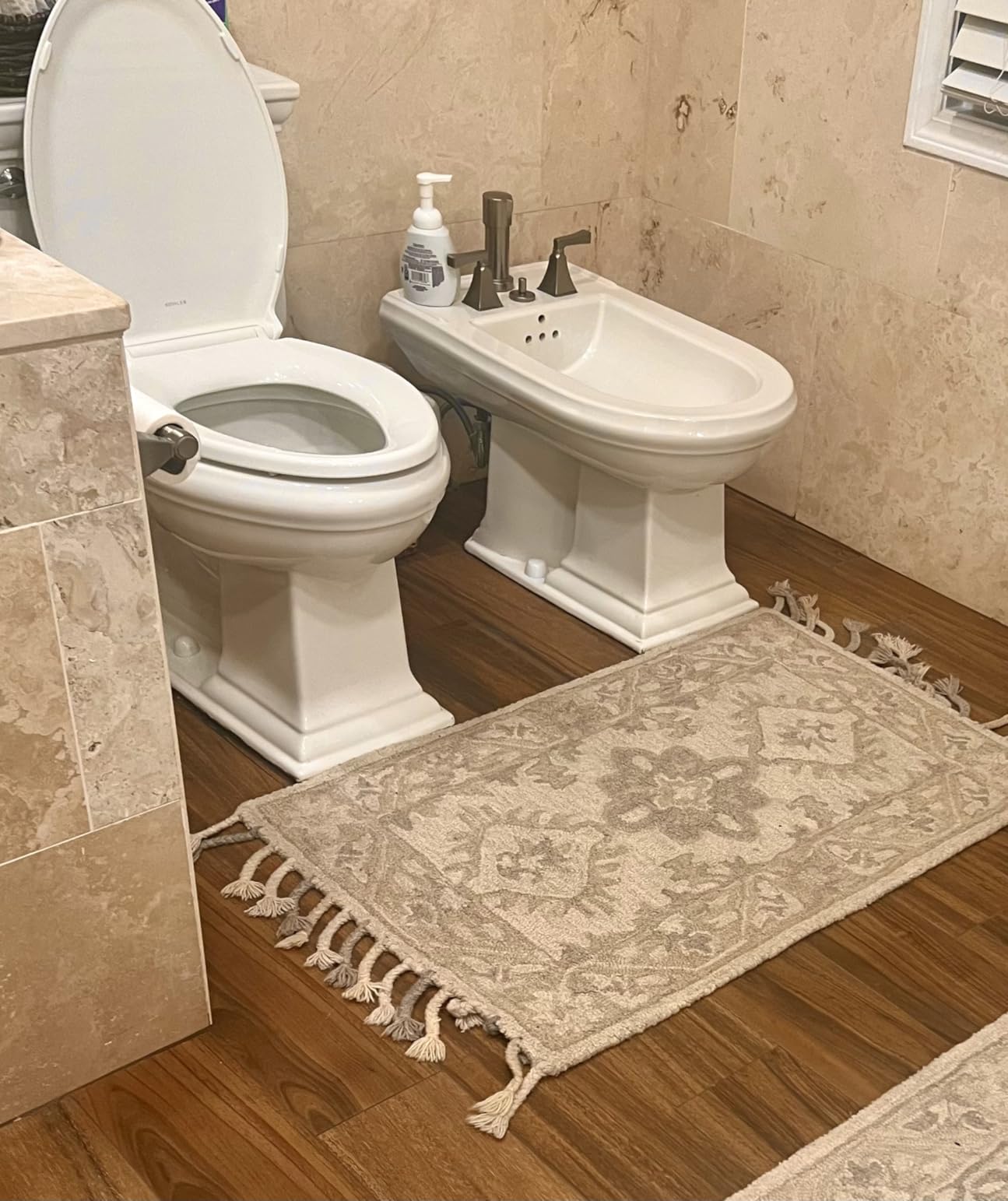

5. HeatTech 20 sqft Heating Mat System – Best for Tile and Stone Floors

The HeatTech 20 sqft Heating Mat System earns its spot among the best radiant floor heating systems with a strong reputation among tile installers. The red self-adhesive mesh lays flat and stays flat without staples, which speeds up a kitchen or laundry install significantly compared to cable-only systems.

The mat uses a zero-EMF dual wire design, which matters if you’re spending hours standing on it barefoot in a kitchen. The included AUBE TH115-AF-120S programmable thermostat is a solid workhorse with a clear digital display, vacation mode, and a floor sensor.

At 12W per sqft and 240W total, this is a small-room solution best paired with other HeatTech mats up to 150 sqft on a single thermostat. That’s a useful feature for open-plan kitchens with islands. The 25 year manufacturer warranty on the mat is matched by a 3 year warranty on the thermostat.

Reviewers consistently praise the thin 1/8 inch cable and the multiple mat sizes that let you combine coverage without wasting material. The main caution is the same as most electric mats: avoid damaging the blue heating wire with a trowel during install.

For whom it’s good

It’s a great pick for tile and stone in a kitchen, laundry, or small bathroom. If you care about low EMF and want a complete kit with a reliable thermostat, this is one of the cleanest mid-size options available.

For whom it’s not great

If you’re laying LVP or laminate, the adhesive mat system isn’t ideal; you’d be better served by a thin floating-floor film like the QuietWarmth in this list. Also, the included thermostat isn’t WiFi enabled, so smart-home enthusiasts will want to swap it.

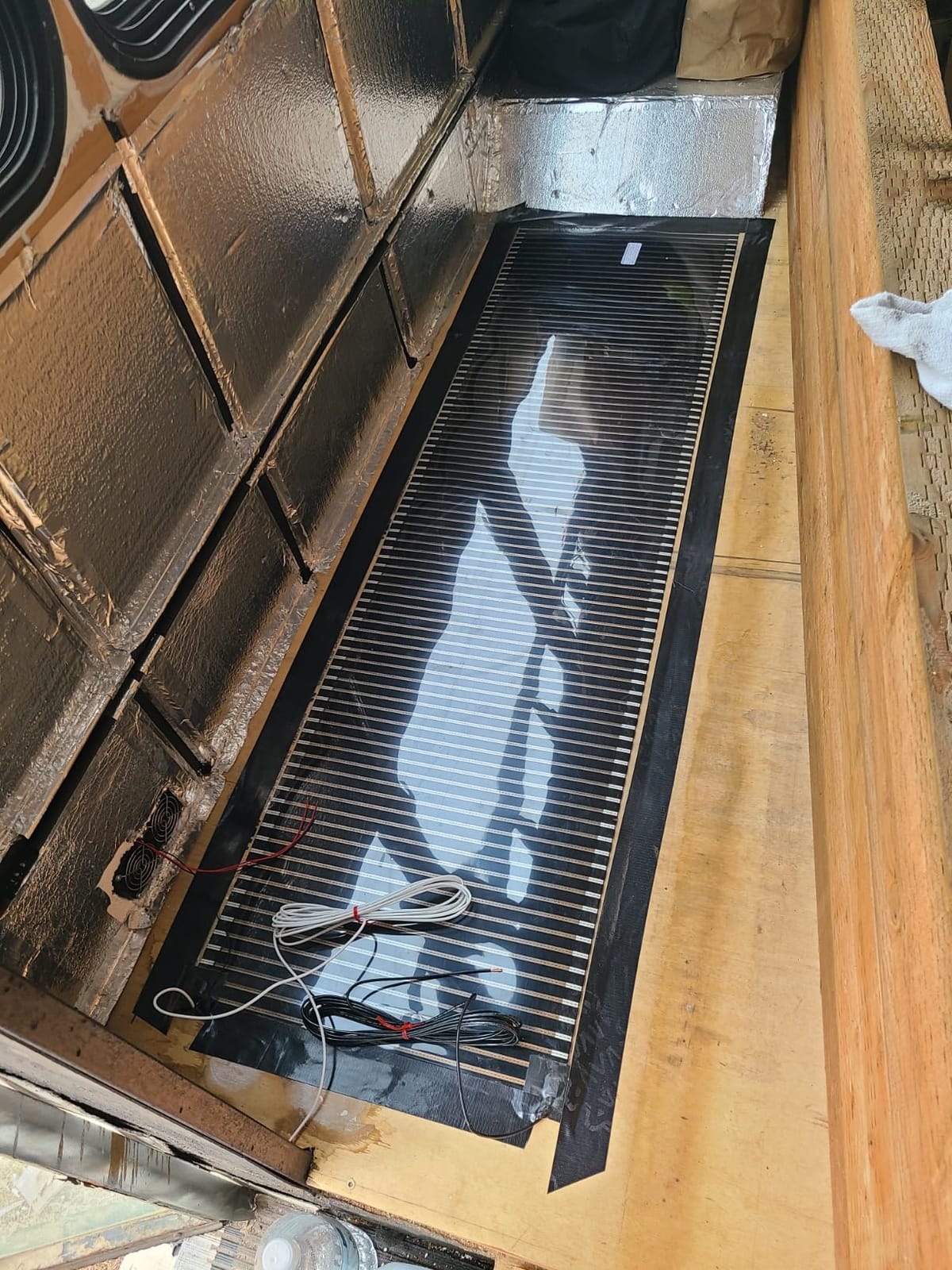

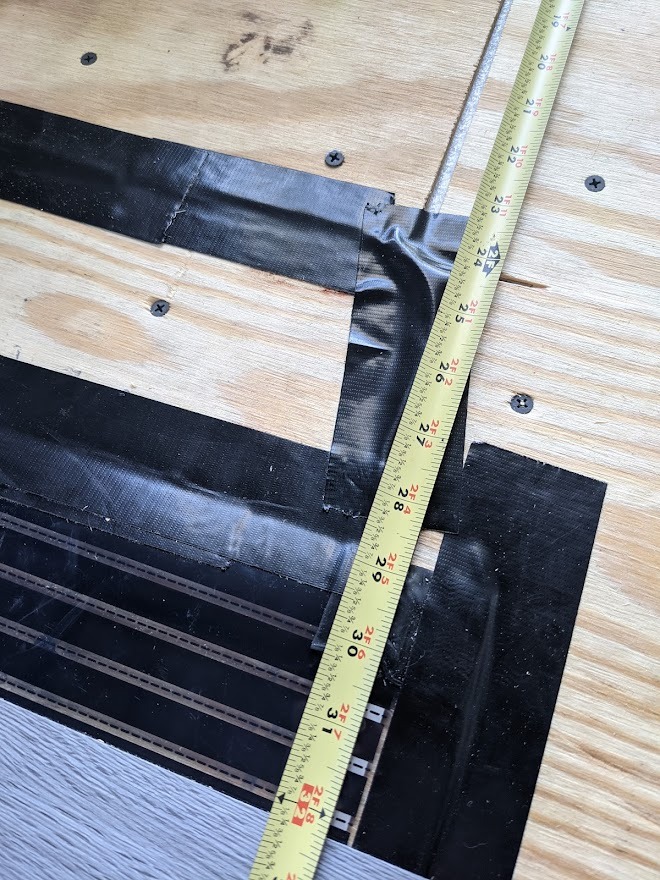

6. QuietWarmth Float Radiant Floor Heating Mat – Best for Floating Floors

Most electric radiant systems are built around tile because of the floor height and the thinset embedment process. The QuietWarmth Float Mat breaks that rule. It uses a razor-thin conductive ink film designed specifically for floating floors like luxury vinyl (4mm or thicker), laminate, and floating engineered wood.

There’s no mortar, no self-leveling, and no mess. You roll the mat out, cut it to length (you can’t cut the width), and lay your floating floor directly on top. The mat operates on 120V and pairs with a QuietWarmth thermostat sold separately.

The big upside is floor height: at well under 1/8 inch, the QuietWarmth barely registers in a retrofit. The trade-off is heat output. At 12W per sqft, this is supplemental floor-warming heat, not enough to heat a cold room on its own. Reviewers say it warms feet comfortably but doesn’t replace a forced-air system.

The self-limiting design is a nice safety feature; it won’t overheat and damage your floating floor. You can connect multiple mats up to 120 sqft on a single thermostat via a junction box.

For whom it’s good

If you want to add warm floors to a bedroom or living room without tearing out a floating floor system, this is the only real option. It’s also great for three-season rooms and over existing subfloor assemblies where height is a deal-breaker.

For whom it’s not great

It’s not a primary heat source, and the per-sqft cost adds up when covering large areas. You also can’t install it under cabinets, heavy rugs, or flat-bottom furniture, which means careful layout planning around bedroom dressers or kitchen islands.

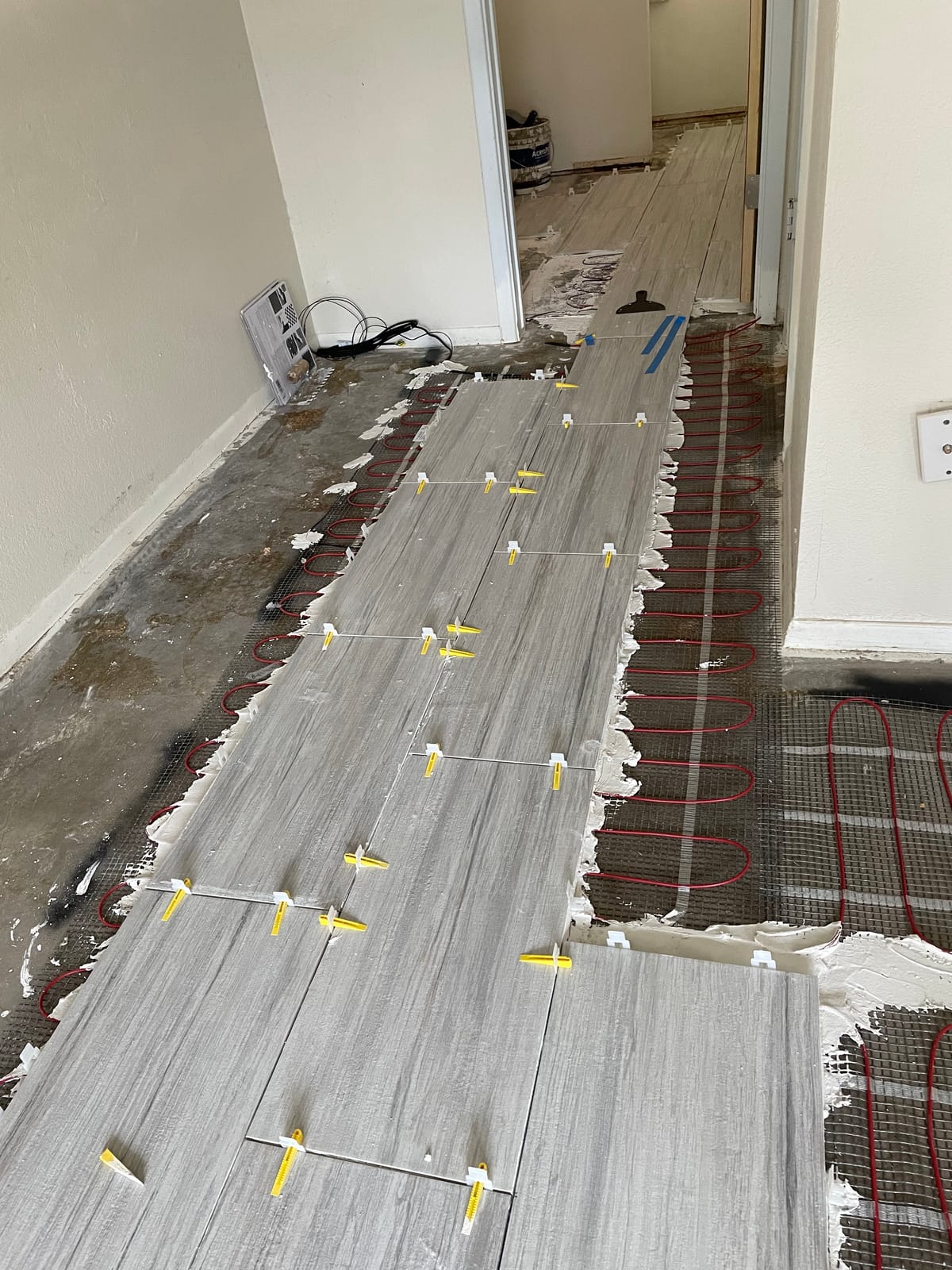

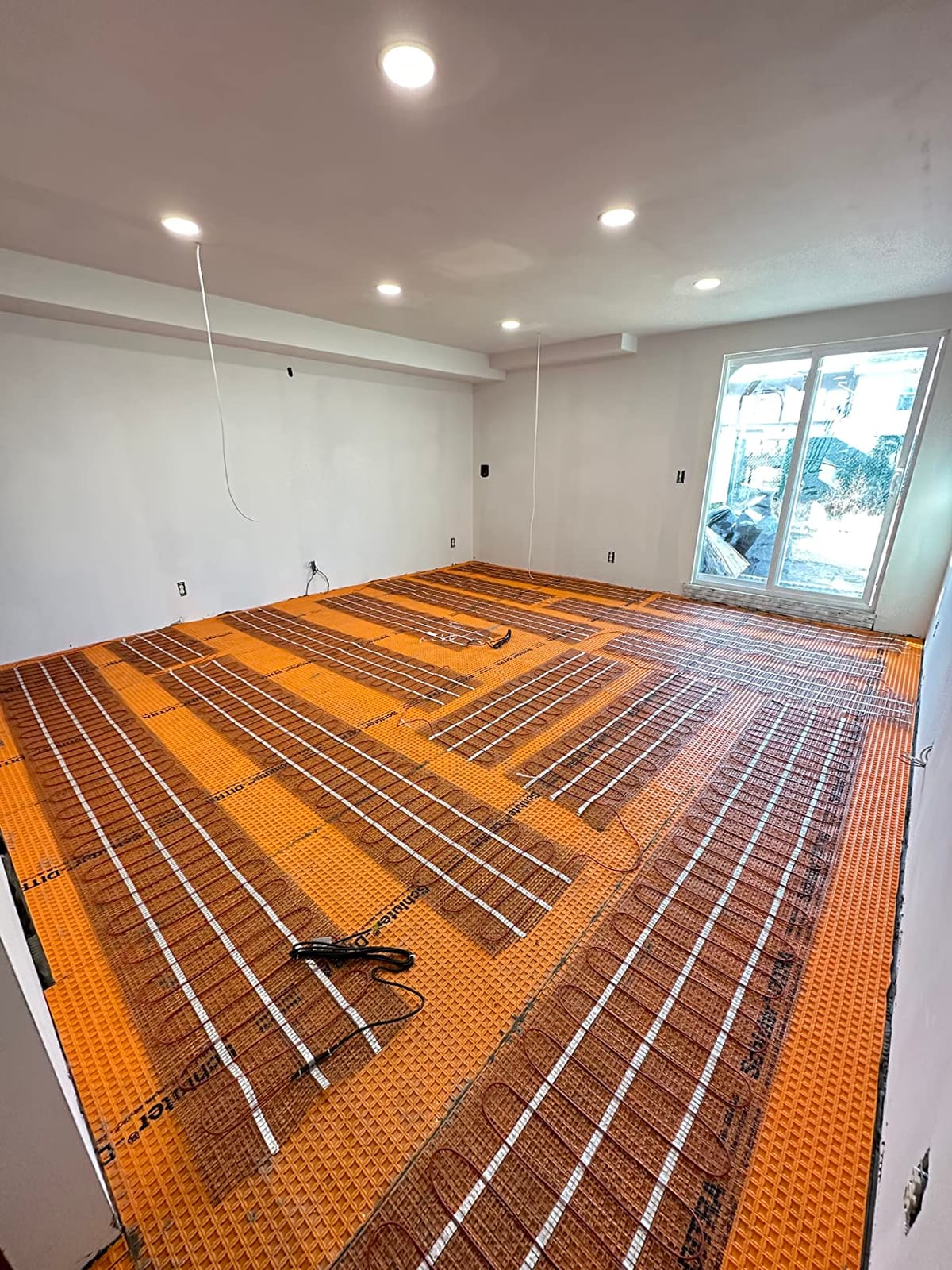

7. LuxHeat 60 sqft Floor Heat System – Best for Larger Rooms

For larger rooms, the LuxHeat 60 sqft Floor Heat System combines a generous coverage area with an upgraded thermostat that punches above its class. The kit ships with the OJ Microline UDG-4999 programmable thermostat, which adds 7-day scheduling, dual air and floor sensing, a child lock, and built-in GFCI protection.

The mat itself uses LuxHeat’s dual wire technology with an aluminum shield to reduce electromagnetic fields to ultra-low levels. For a primary suite bedroom or finished basement where you’re spending real time on the floor, that EMF reduction is a real comfort.

At 12W per sqft, the LuxHeat lands in the same comfort-heat band as most competitors, but the self-adhesive backing combined with double-sided tape holds the mat flat through the embedment step better than many alternatives. Reviewers consistently note that the mat lays flat even when flipped for turns.

The 25 year limited warranty and UL certification for wet locations make this a strong all-rounder for a master bath or a large kitchen. The 1/8 inch cable diameter keeps the floor buildup minimal.

For whom it’s good

This is a top pick for medium and larger rooms where you want a complete kit with a smart thermostat and don’t want to think about piecing components together. The OJ Microline thermostat and dual-wire low-EMF design are real upgrades at this price.

For whom it’s not great

It’s not a one-day mat project. The wires must be embedded in thinset or self-leveling underlayment, and the first warmup after install takes patience. For a quick floating-floor install, choose the QuietWarmth mat instead.

8. SunTouch TapeMat Electric Under Floor Heating Kit – Best Complete Kit With Trusted Brand

SunTouch has been a fixture in the radiant heat world for decades, and the TapeMat Kit is the company’s mainstream workhorse. The kit pairs a pre-spaced heating cable bonded to a tough orange mesh with the Command Touch programmable touchscreen thermostat, a floor sensor, and all the install accessories you need in one box.

At 2.0′ x 12.5′ and 25 sqft of coverage, this is a focused mid-size mat for a kitchen, laundry, or bathroom floor. The mesh cuts easily for turns, and the cable spacing is set at the factory, which removes one of the trickier variables for first-time installers.

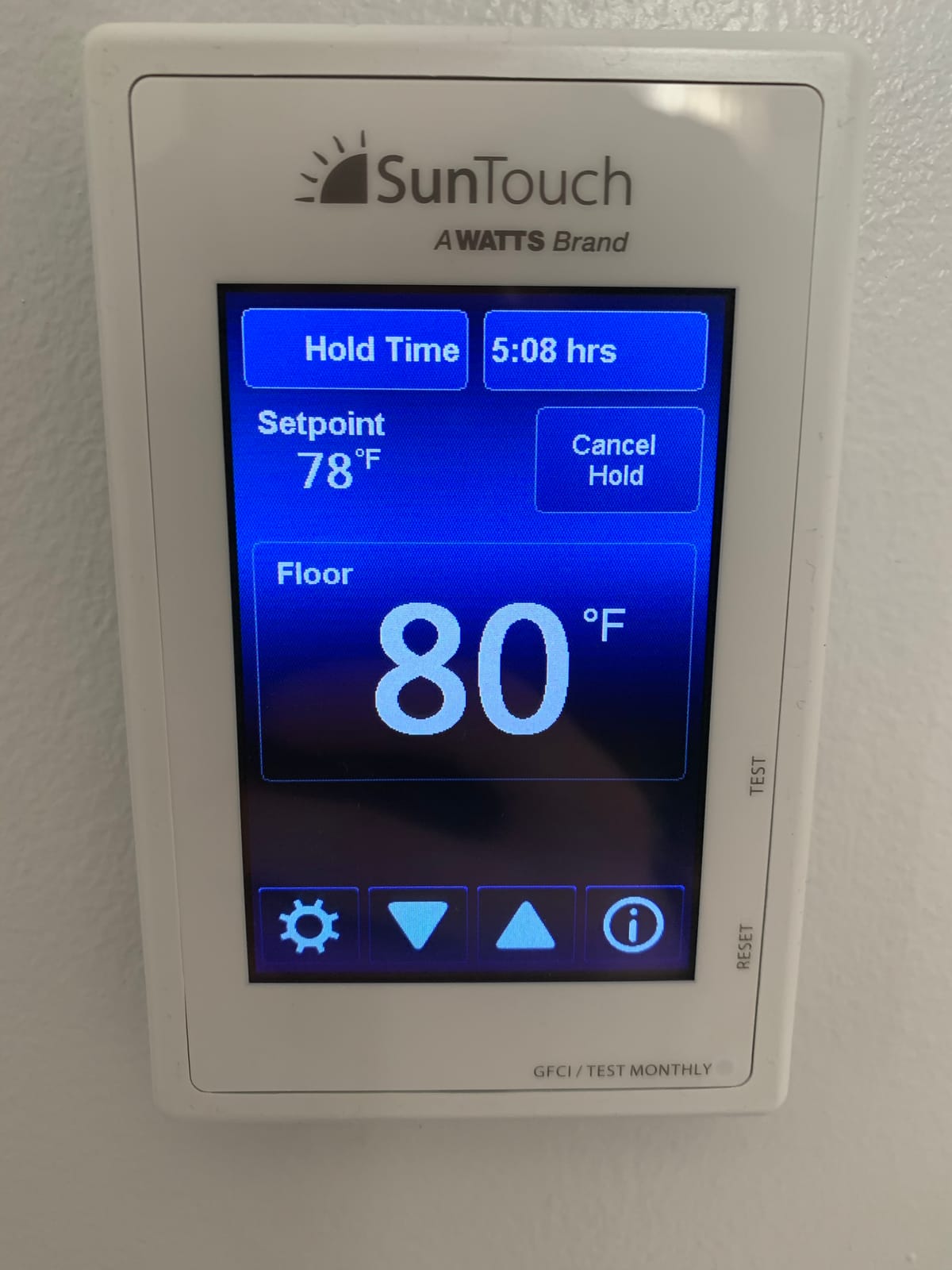

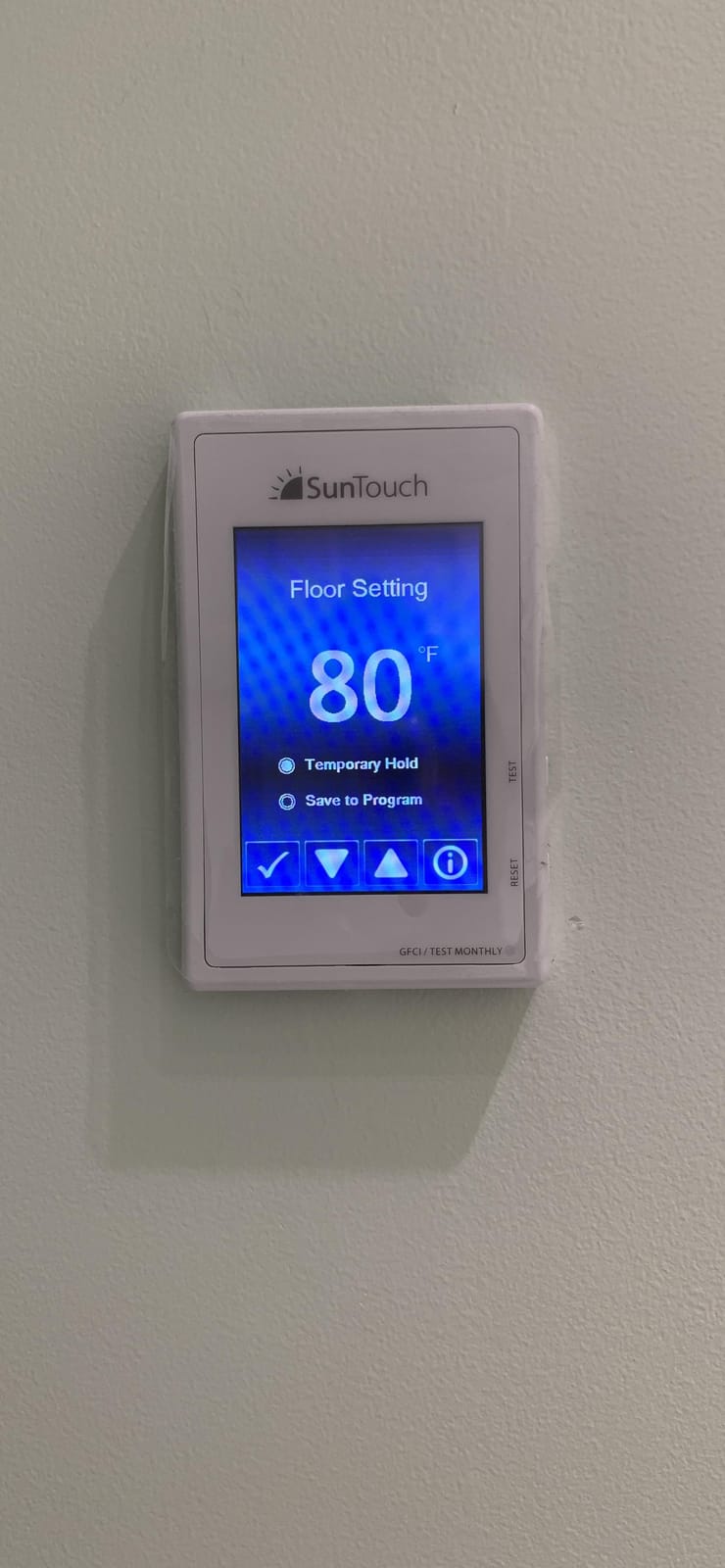

The Command Touch thermostat has Bluetooth connectivity and a clean touchscreen interface. It’s not WiFi out of the box, but it pairs with home automation hubs via the typical thermostat integrations. The 25 year warranty on mats and cables, plus a 2 year warranty on the thermostat, matches the industry standard.

Reviewers highlight the brand’s longevity and the fact that multiple buyers have installed SunTouch in more than one home over the years. Subfloor prep sometimes needs a skim coat to get the mat perfectly flat, but that’s a standard tile prep step.

For whom it’s good

It’s an excellent fit for homeowners who want one trusted brand across the entire system rather than mixing mats, thermostats, and sensors from different manufacturers. If you’ve owned a Watts product before, this will feel familiar.

For whom it’s not great

WiFi is not built in, so if you want full smart-home control without an extra hub, look at the Warming Systems cable kit. The 25 sqft size is also a constraint for larger rooms, where you’d need to combine mats or step up to the SunTouch WarmWire 90 sqft kit.

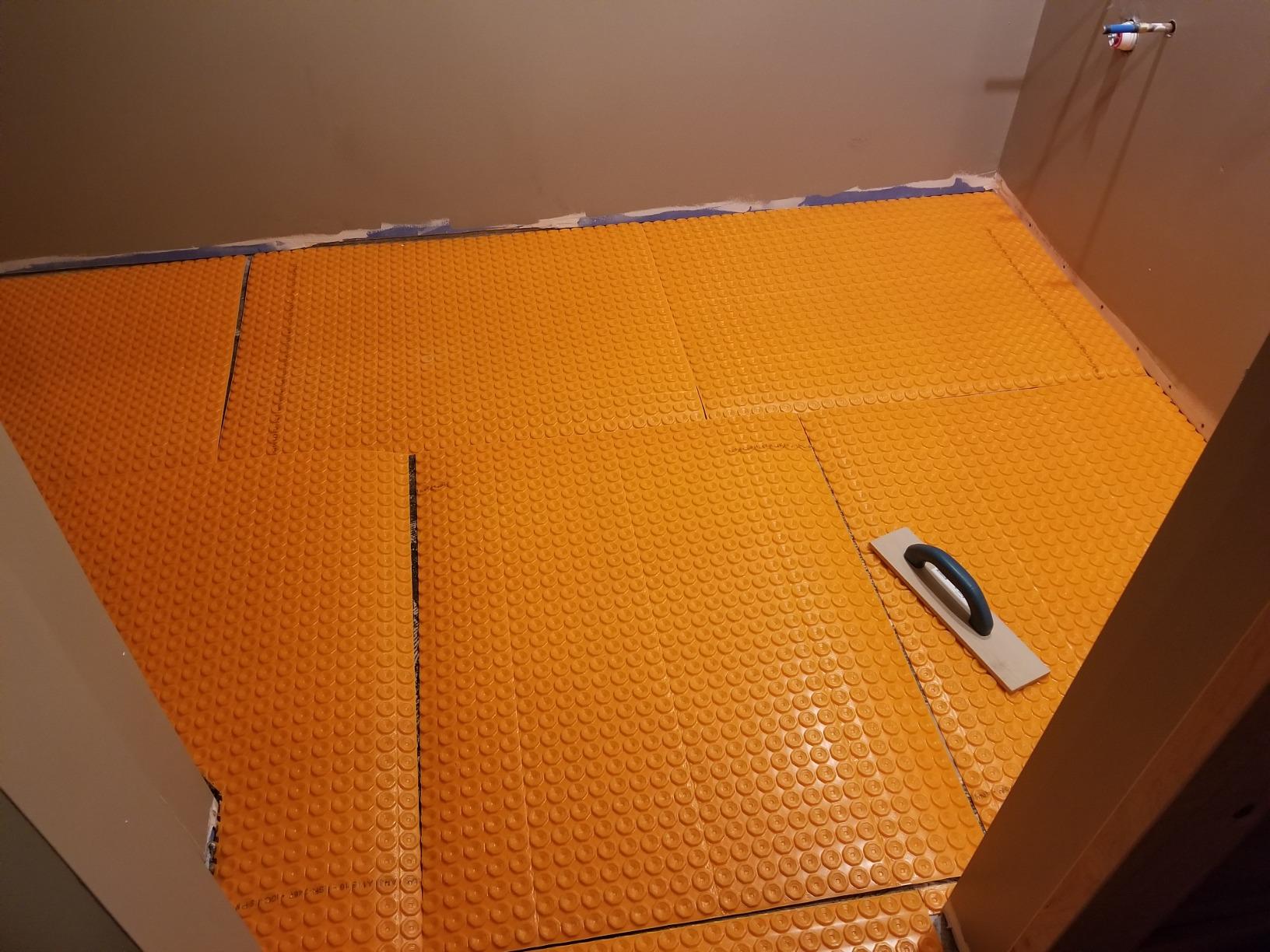

9. Schluter Ditra-Heat Membrane DH5MA – Best Small Membrane Roll for Quick Jobs

If you only need a small membrane section, the Schluter DH5MA is the same Ditra-Heat system in a more compact 8.4 sqft roll. It’s the perfect size for a powder room, a shower bench, or a tight kitchen entry where you want full Schluter quality without buying a 134 sqft roll.

The membrane handles three jobs at once: it uncouples the tile assembly from the subfloor, waterproofs the installation, and manages vapor pressure. It also holds heating wire securely without separate cable guides, which speeds up the install and keeps the wire spacing consistent.

At 1/4 inch, the profile is slim enough to maintain clean transitions between tile and adjacent flooring. The fleece backing bonds well to modified or unmodified thinset depending on the application, though you do need to follow Schluter’s specific mortar guidelines.

Reviewers consistently praise the build quality and the fact that the membrane cuts easily with a utility knife. The main notes are about coverage math: an 8.4 sqft roll won’t cover a full bath, so you’ll likely buy multiples or step up to the larger DH512M roll for bigger spaces.

For whom it’s good

It’s the right call for a small tile job, a shower floor retrofit, or a test install where you want to learn the Schluter system before committing to a larger roll. It also works with third-party heating cables, not only Schluter’s own.

For whom it’s not great

For a full bathroom, the per-sqft price is higher than buying the larger roll. The 10 year warranty is also shorter than the 15 year warranty on the 134 sqft DH512M roll. For projects over about 15 sqft, consider stepping up.

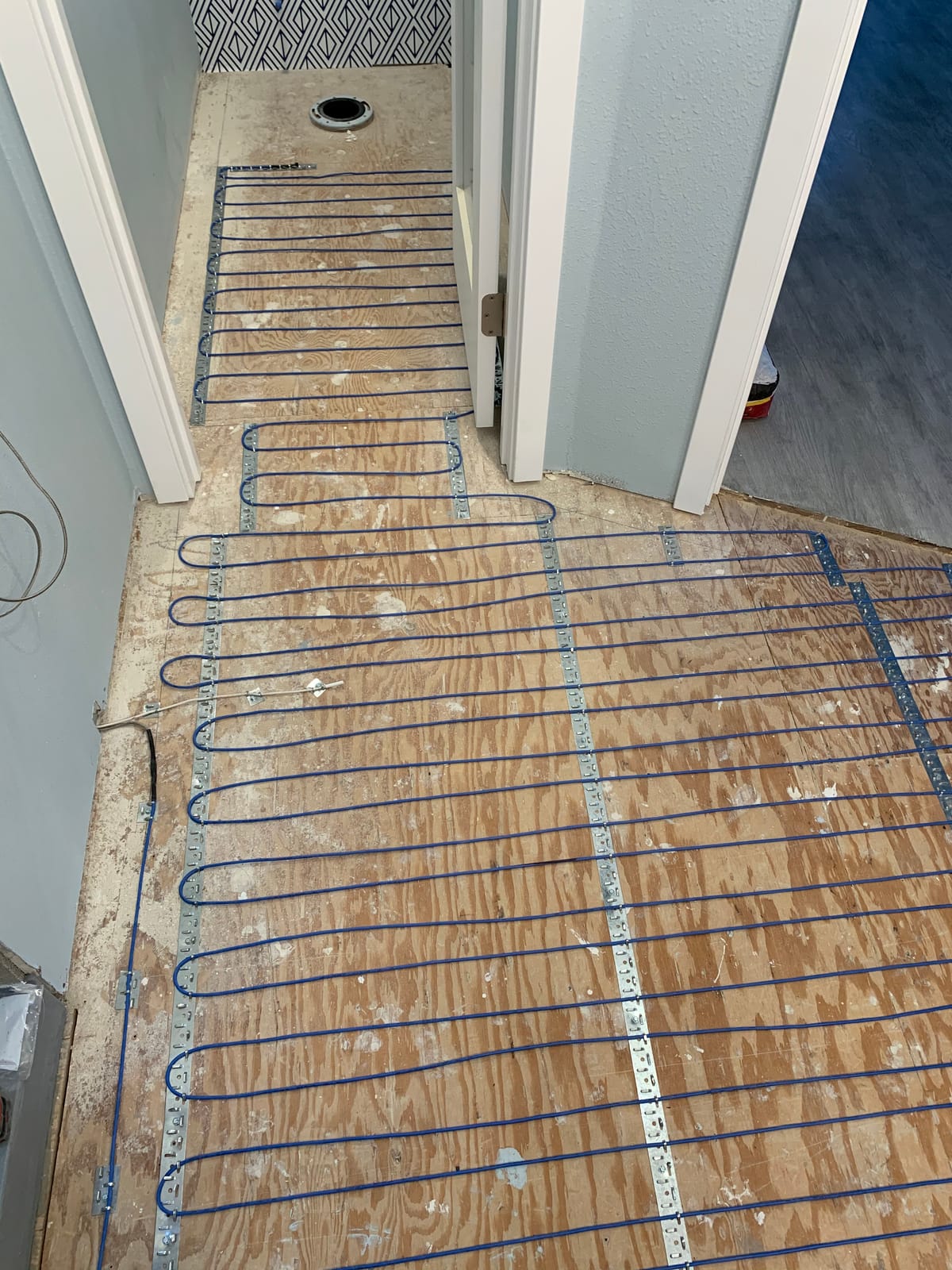

10. SunTouch WarmWire Electric Floor Heating Kit – Best for Big Coverage Areas

For larger spaces like a finished basement, a big kitchen, or a sunroom, the SunTouch WarmWire 90 sqft Kit is one of the most complete packages on the market. The kit covers a generous 90 sqft area, runs on a standard 120V circuit, and includes the Command Touch programmable thermostat plus the signature LoudMouth installation alarm.

The LoudMouth monitor is the standout feature. It beeps loudly the instant the heating cable is nicked or damaged during tiling, which can save a tile install from a costly rework. I’ve personally seen this catch a trowel nick before the thinset went down, and it prevented a $400 mistake.

The single-point power connection simplifies the wiring layout and reduces the number of electrical boxes you need. Dual wire technology keeps EMF to ultra-low levels, and the system is approved for shower and wet-area applications.

At 1080 watts and 12W per sqft, this is a robust primary or supplemental heat source for a large room. Reviewers note that the WarmWire works well paired with the SunTouch HeatMatrix membrane for easier cable placement.

For whom it’s good

It’s a top pick for homeowners finishing a basement, tackling a large kitchen remodel, or building out a sunroom. The LoudMouth monitor alone justifies the kit for any first-time installer working with a big, expensive tile job.

For whom it’s not great

It’s overkill for a powder room or a small entry, and the higher total wattage may require a dedicated circuit check by an electrician. The 90 sqft coverage is also a single fixed size, so if your room is larger or smaller, you’ll need to combine kits or step down.

How to Choose the Right Radiant Floor Heating System

Choosing among the best radiant floor heating systems comes down to five decisions: electric vs hydronic, floor covering, room size, thermostat, and warranty. Let’s walk through each one.

Electric vs hydronic

Electric radiant systems use resistive heating cables or mats at roughly 12 to 15 watts per square foot. They’re the right call for single-room retrofits, bathrooms, kitchens, and basements where the floor can be opened up or tiled over. They warm up in 30 to 60 minutes.

Hydronic systems pump heated water through PEX tubing and tie into a boiler or high-efficiency water heater. They’re better for whole-home new construction, large slabs, and situations where you want a single heat source for the entire house. They warm up slowly, sometimes over several hours, which is why they’re often left running 24/7 in cold climates.

Floor covering compatibility

Tile and natural stone are the best thermal conductors and the easiest match for any electric mat or cable system. Luxury vinyl, laminate, and floating engineered wood require specific systems like the QuietWarmth conductive film, because traditional thinset-embedded mats add too much height or trap too much heat.

Carpet is generally a poor match unless paired with a low-pile commercial carpet and a low-wattage system. Concrete slabs in basements work well with both electric and hydronic, though hydronic embedded in the slab during the pour is the gold standard.

Room size and layout

For rectangular rooms under 60 sqft, a self-adhesive mat is the cleanest, fastest install. For L-shaped rooms, bathrooms with built-ins, or larger open spaces, a cable kit like the Warming Systems system gives you layout flexibility.

Thermostat and smart home

WiFi-enabled thermostats like the Warming Systems UWG5-4999 pair with Alexa and Google Home, while touch-only thermostats like the AUBE TH115 are simpler and often less expensive. For whole-home zoning, look for systems that support multiple mats on one thermostat (up to 150 sqft for HeatTech, up to 120 sqft for QuietWarmth).

Warranty and certifications

UL listing for the USA and Canada is the baseline safety standard. CSA certified and ANSI-tested systems add a layer of third-party validation. Warranties on heating mats and cables range from 10 to 30 years; thermostats typically carry 2 to 3 years.

Installation Overview by Floor Type

How you install radiant floor heating depends almost entirely on the floor covering. Here’s the breakdown.

Tile over plywood or concrete

This is the classic install. Lay an uncoupling membrane like the Schluter Ditra-Heat over the subfloor, run the heating cable through the membrane channels or embed a self-adhesive mat in thinset, then tile directly over the assembly. The total floor buildup is typically 1/4 to 3/8 inch.

Laminate, LVP, and floating engineered wood

For floating floors, use a thin conductive film system like the QuietWarmth Float Mat. Roll the film out over the subfloor, run the lead wire to a junction box, and lay the floating floor directly on top. There’s no thinset, no self-leveling, and no mess.

Concrete slab (new construction)

Hydronic PEX tubing is embedded in the slab during the pour, typically with rebar and extruded polystyrene insulation underneath. The slab acts as thermal mass, so the system runs at lower temperatures but takes longer to warm up. For retrofits, low-profile electric mats can be embedded in a self-leveling underlayment on top of an existing slab.

DIY vs hiring a pro

Electric mat and cable kits are well within DIY reach for someone comfortable with basic electrical work and tile installation. The job involves a dedicated circuit or sub-panel connection, a thermostat wire, and proper thinset embedment. Hydronic systems are typically installed by professionals because they involve boiler plumbing, zone manifolds, and pressure testing. If you’re considering a whole-home radiant system, our guide to pellet stoves for home heating covers another whole-home option worth comparing.

Cost and Running Cost

Upfront cost for an electric radiant kit runs roughly $10 to $25 per square foot of coverage, including the mat or cable, thermostat, and installation materials. Hydronic systems run $15 to $30 per square foot for the tubing and manifolds, plus the cost of a boiler or high-efficiency water heater if you don’t already have one.

Operating cost depends on how you use the system. As supplemental bathroom or kitchen heat running a few hours a day, an electric mat costs roughly $0.50 to $2.00 per day in most climates. As a primary heat source, the operating cost climbs quickly, which is why hydronic systems paired with a high-efficiency boiler or a heat pump tend to win on whole-home economics.

Industry data consistently shows 30 to 50 percent energy savings vs forced-air when radiant is properly zoned and the subfloor is insulated. The savings come from two places: lower air temperatures for the same comfort level, and zero duct losses because there’s no ductwork. If you’re also weighing other ways to reduce heat loss, our radiant ceiling panels guide is a useful companion read.

The Reddit users debating $20k to $30k quotes for whole-home hydronic aren’t exaggerating. That price range is real, and the value calculation depends on climate, how long you stay in the home, and how much you value silent, draft-free heat. For most homeowners, the right answer is electric in targeted rooms and a high-efficiency furnace or heat pump for the rest of the house.

Frequently Asked Questions

Final Verdict

The best radiant floor heating system for your home is the one that matches your floor covering, room size, and skill level. After testing mats, cables, and membranes side by side, the HEATIT 10 sqft Electric Radiant Warmmat is my top pick for small bathrooms and entry retrofits thanks to its 30 year warranty, UL listing, and ultra-thin 1/8 inch profile. For larger or L-shaped rooms, the Warming Systems 40 sqft Cable Kit delivers the best combination of layout flexibility and WiFi thermostat. And if you’re tiling, the Schluter Ditra-Heat Membrane remains the gold standard for waterproofing and uncoupling.

Whatever system you choose, add proper subfloor insulation, buy a smart thermostat, and follow the manufacturer’s mortar and embedment guidelines carefully. Done right, a radiant system delivers silent, even, draft-free heat for decades. If you want to explore how radiant floor heating fits alongside other home heating options, our guides to wood stoves for heating and outdoor heating lamps cover the rest of the heating category.
