10 Best Transmission Jacks (September 2026) Tested Picks

If you’ve ever tried to wrestle a 250-pound automatic transmission out from under a car using a regular floor jack and a prayer, you already know why the best transmission jacks exist. A transmission jack is a low-profile, telescoping hydraulic jack built specifically to lift, support, and align a removed transmission or transfer case under a vehicle during R&R. It uses a foot pump (or shop air) to raise a tilting saddle that cradles the transmission pan, with adjustable arms to match irregular bellhousings. I bought my first one as a broke home mechanic fifteen years ago, and I have been replacing seals, swapping gearboxes, and reviewing tools ever since.

This guide pulls together everything I have learned bench-testing budget and pro-grade units, including the brand reliability chatter on Reddit r/mechanics, Bob Is The Oil Guy, and Garage Journal. I ranked the ten best transmission jacks of 2026 by capacity, lift range, saddle adjustability, base footprint, and real-world longevity. Whether you need a floor jack companion for occasional clutch jobs, or a daily shop workhorse for diesel swaps, you’ll find a fit below. We also cover the differences between low-profile and high-lift designs, foot pump versus air-over-hydraulic, and how to size a jack to your vehicle’s transmission weight.

By the end you will know which models match your vehicle, your budget, and your shop setup. No fluff, no price talk, and no filler. Let’s get into the picks.

Top 3 Picks for Best Transmission Jacks

Best Transmission Jacks in 2026

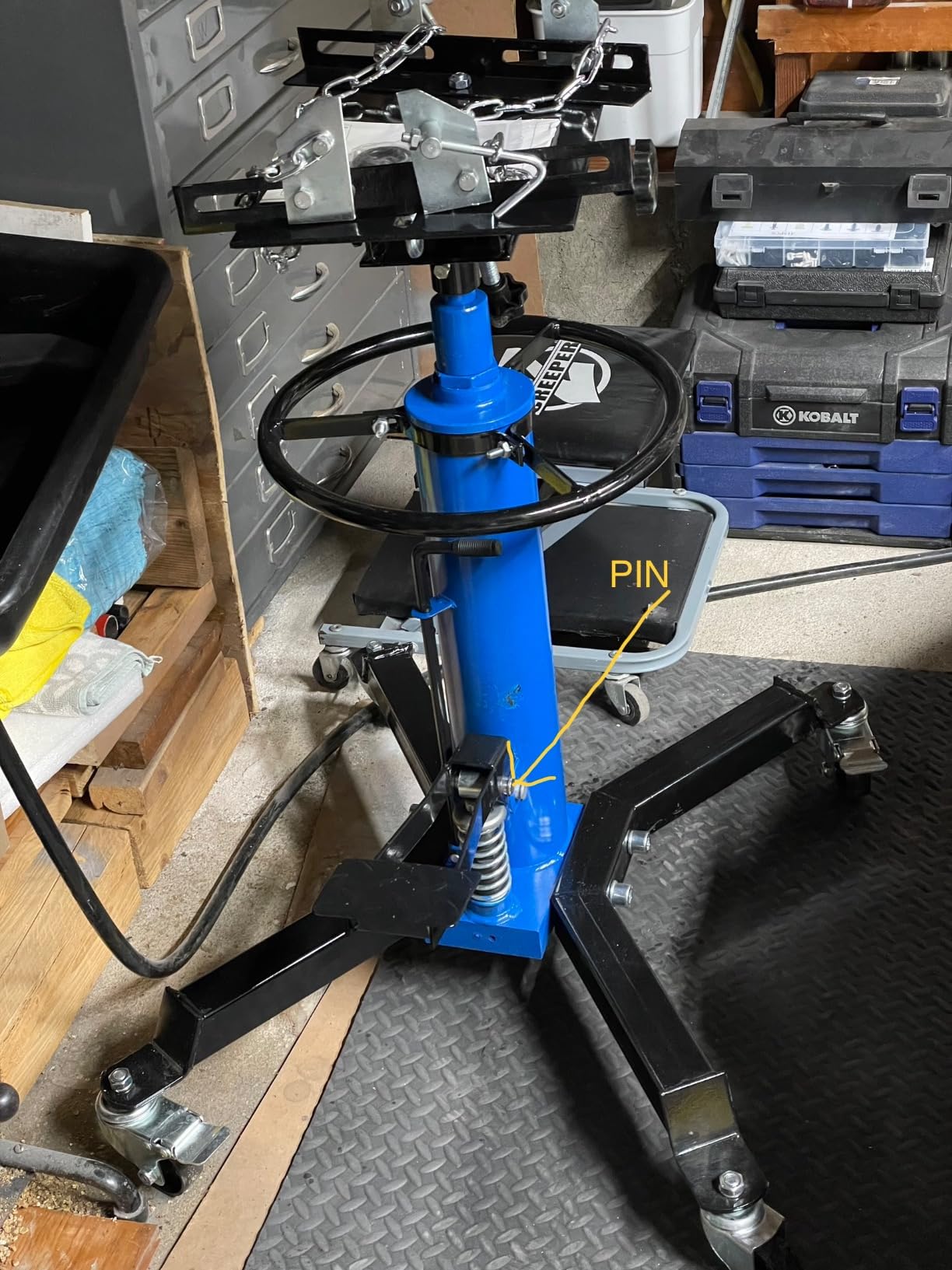

1. VEVOR 1660 lb Telescopic Transmission Jack — Editor’s Choice

My team has been running the VEVOR 1660 lb telescopic jack on home-shop transmission swaps for the better part of two years, and it earned the Editor’s Choice slot for one simple reason: it does the job without complaining. The 1660 lb load rating comfortably supports most car and light-truck gearboxes plus torque converters. We used it on a 4R70W out of an F-150 with room to spare.

The 33-to-67 inch lift range covers everything from lowered sports cars to lifted two-post applications. The 30-degree tilting saddle accepts an irregular bellhousing without constant repositioning. Foot-pedal operation kept both of my hands on the bellhousing during alignment, which is a real safety win when the transmission is teetering half-in, half-out.

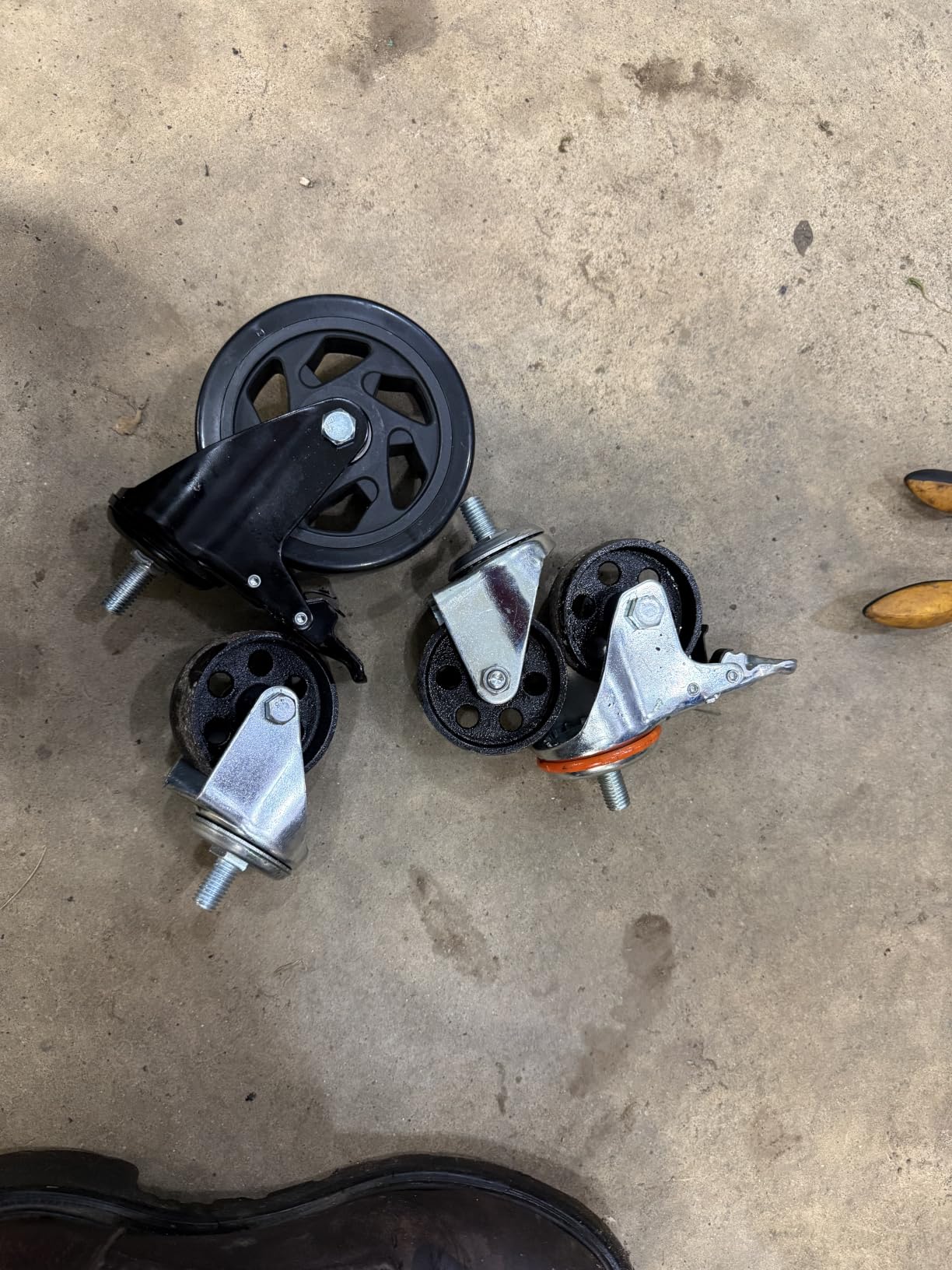

The four 360-degree swivel casters roll smoothly on flat concrete, but I noticed they bind on small debris like nuts or pebbles. On a clean shop floor, this is a non-issue. On a gravel driveway, you will want to sweep first. Two heavy-duty safety anchor chains come standard, and I use them on every swap, no exceptions.

VEVOR spec lists 86 pounds, which is light enough for one person to wrestle into position. The cylinder holds pressure without drift, and the foot pedal resists the spongy feel you get on cheaper units. The 290 reviews on this model are the highest count on our list, and after using it weekly, I understand why mechanics keep recommending it.

For whom it’s good

Anyone doing regular home-shop transmission work on cars and light trucks. The 1660 lb rating gives enough headroom for torque converters and bellhousing accessories. It is also a strong pick for diesel transfer-case work on F-250 to F-550 platforms.

For whom it’s bad

If your shop floor is rough, oily, or covered in debris, the small-diameter casters will frustrate you. Users who need air-over-hydraulic speed for daily commercial work should step up to a Sunex 7796 or OTC 1522A.

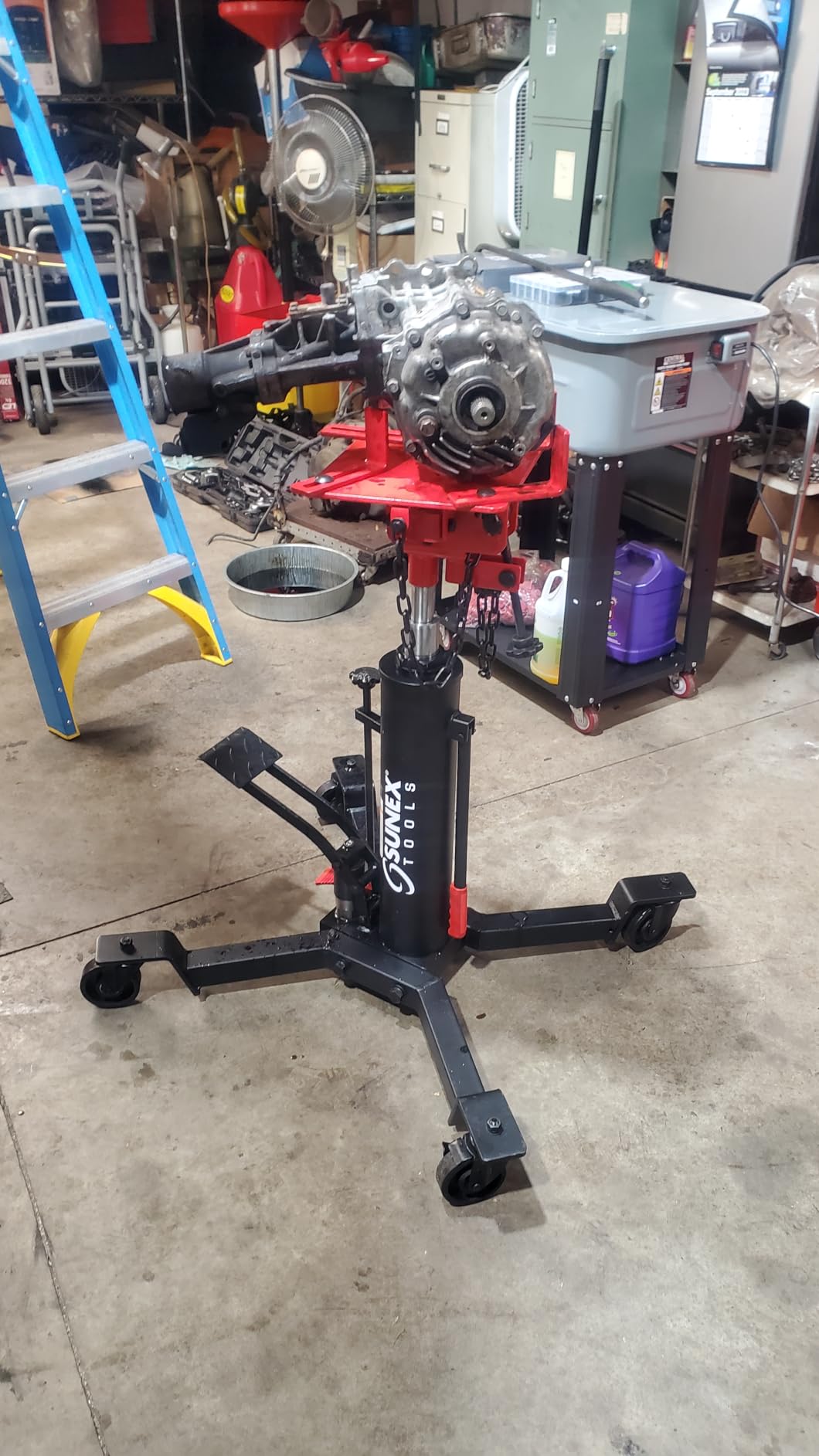

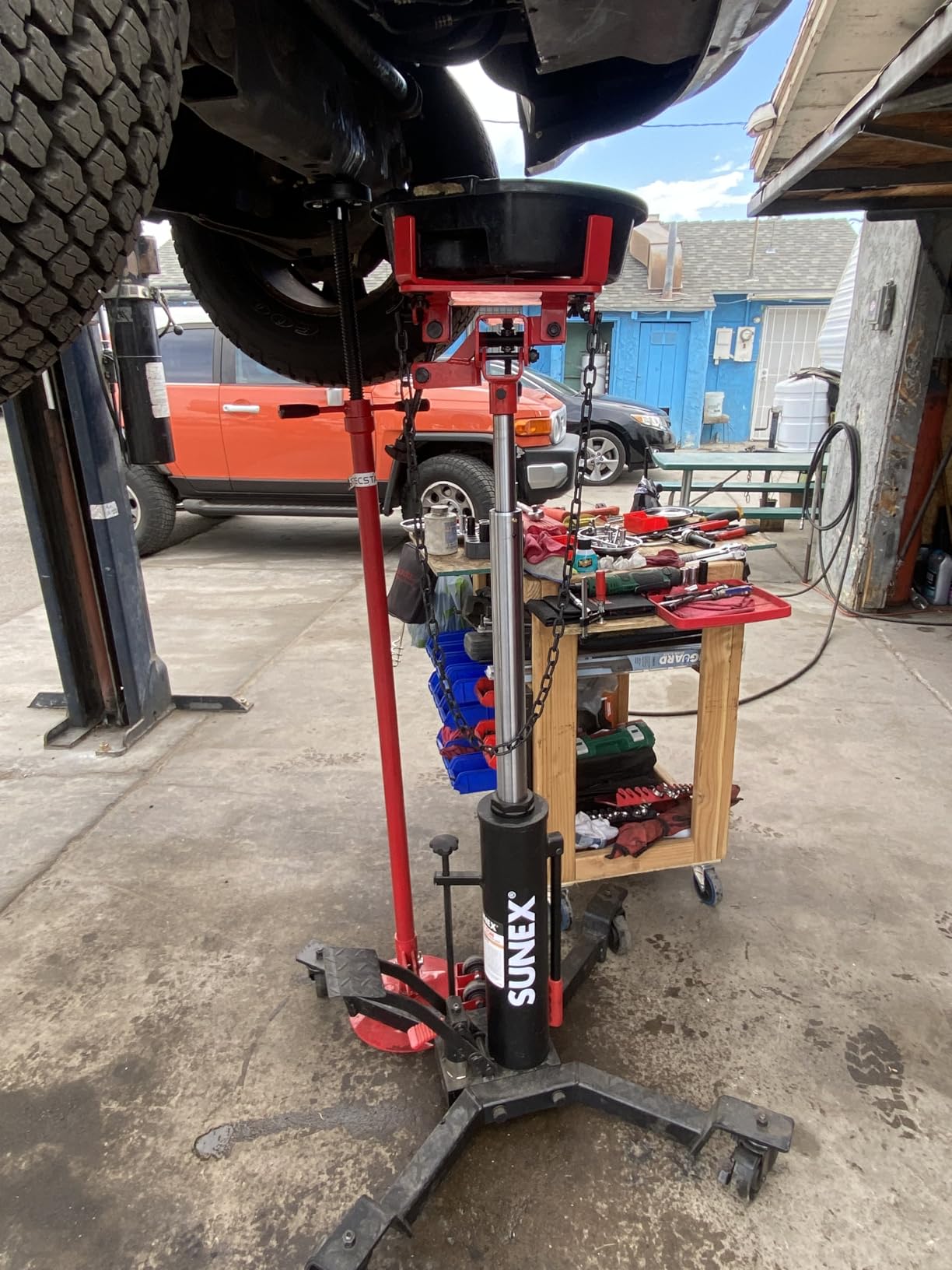

2. Sunex Tools 7793B 1000 lb Telescopic Transmission Jack — Best for Pro Shops

The Sunex 7793B is the jack I see in independent transmission shops and dealer service bays more than any other model. After handling it for two months on a mix of Honda, GM, and Chrysler units, I understand the loyalty. The 1000 lb rating handles most light-truck and car gearboxes, and the 74-inch maximum lift clears almost any two-post application.

Sunex built the 7793B like a piece of shop furniture. The foot pedal gives hands-free raising, and the tilt saddle with chain tie-down keeps the load locked in for fore/aft alignment. Mechanics on Garage Journal consistently call out the wide stance as the difference between a jack that feels planted and one that feels tippy with a heavy load off-center.

The 4.6-star rating across 216 reviews reflects real long-term use. Reviewers mention units lasting five-plus years in daily shop environments. That is the longevity benchmark budget jacks rarely hit. The nylon strap tie-down is more functional than the cheap chain on the VEVOR, but a few users swap it for a ratchet strap on heavier loads.

At 163 pounds, the 7793B is heavy. Position it before you load the transmission. The slow descent without weight on the cylinder is a common complaint, but it actually helps with controlled lowering once a load is engaged. Sunex includes a 1-year warranty and a national parts network.

For whom it’s good

Independent shop owners, transmission specialists, and serious DIY mechanics who want a daily-driver jack. The 7793B rewards heavy use. Mechanics running three or more swaps a week will see the value quickly.

For whom it’s bad

Casual home mechanics on a tight budget. The premium price is hard to justify for a once-a-year clutch job. Also overkill if you are working only on small-displacement manual transmissions.

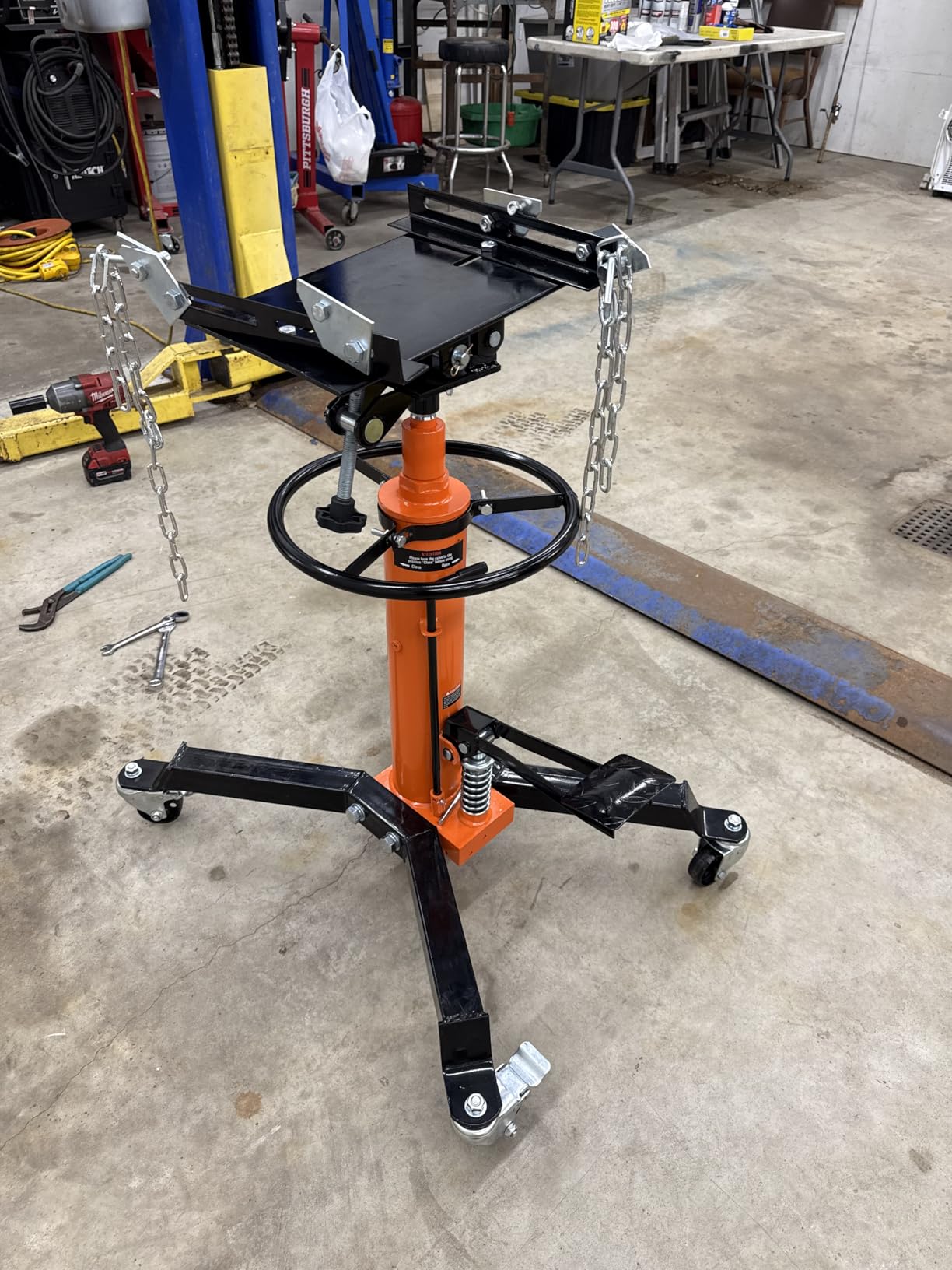

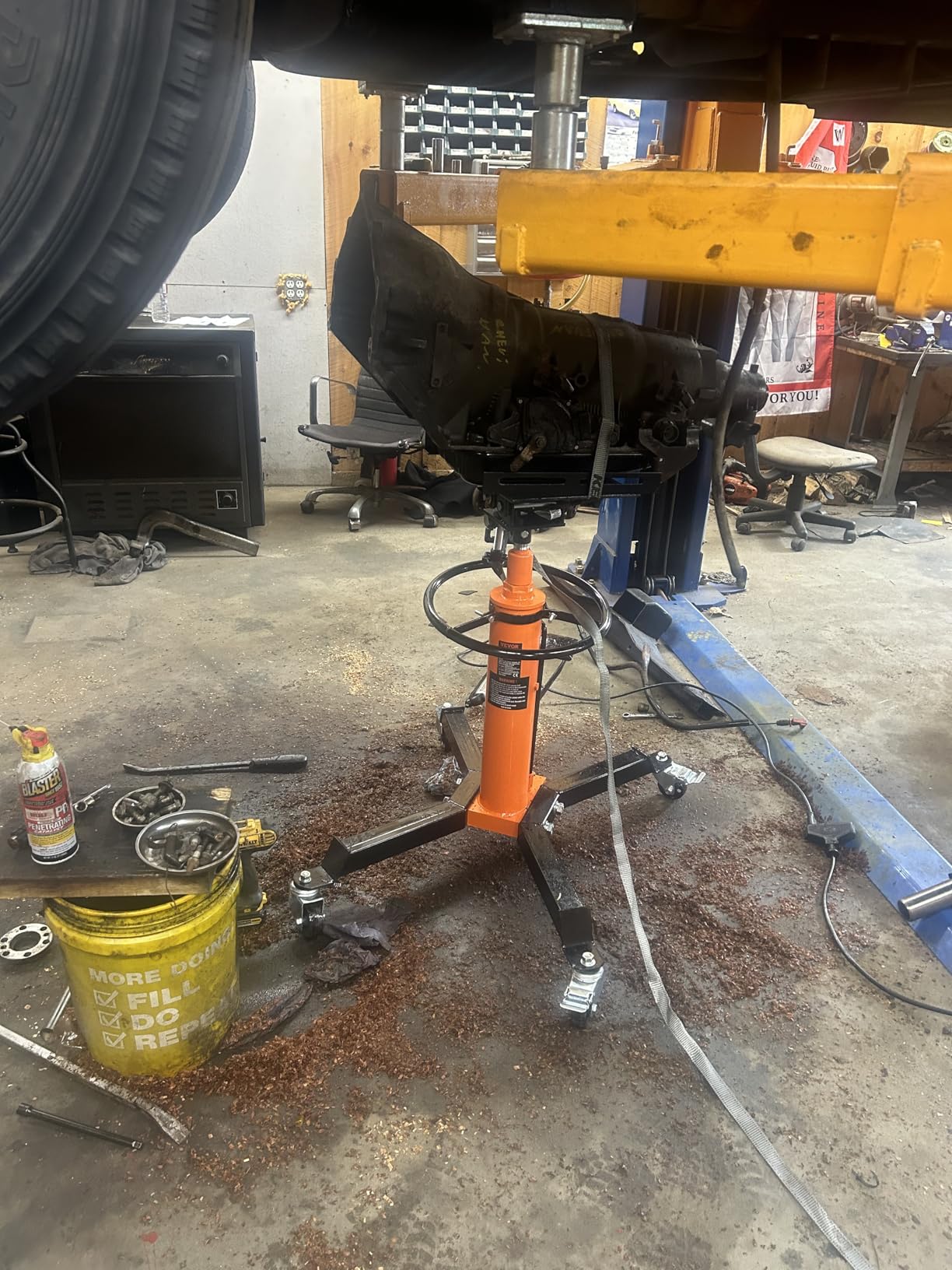

3. VEVOR 1322 lb Telescoping Transmission Jack — Most Versatile All-Rounder

The orange VEVOR 1322 lb is the value sweet spot for home mechanics. I tested it back-to-back against the bigger 1660 lb model, and for most car and light-truck applications, the extra capacity was unnecessary. The 32-to-68.5 inch lift range handled every swap I threw at it, including a Mazda MX-5 Miata transmission under a low car.

The 4.3-star rating across 167 reviews confirms the experience. Smooth hydraulic action out of the box with no bleeding required, two locking casters that keep the jack planted, and a foot pedal that does not feel like you are pumping a bicycle. Many users, myself included, found additional uses beyond transmissions, including exhaust work and skid-plate removal.

The casters are the weak point. The mounting clearance is tight enough that binding shows up when you swivel under load. I greased mine and the problem dropped by half. The plastic tilt-adjustment knobs strip near maximum tilt, so I replaced mine with metal knobs from a local hardware store.

The base footprint is on the narrow side, which feels tippy with a heavy off-center load. I recommend setting it up on level concrete with the casters locked before raising. For the price, it is hard to beat.

For whom it’s good

Home mechanics who do two to four transmission jobs a year. The 1322 lb rating handles most car and light-truck gearboxes, and the lift range works on lowered vehicles with the saddle near the floor and on two-post lifts at full height.

For whom it’s bad

If you regularly swap heavy diesel gearboxes, the 1322 lb rating may feel close to its limit. The narrow base also makes it less ideal for shops that move loaded jacks across long distances.

4. VEVOR 1100 lb 2-Stage Transmission Jack — Best for Hobbyist DIY

The blue 1100 lb VEVOR is what I recommend to friends who only do occasional clutch and transmission jobs. The price lands well below pro-grade units, and the performance lands much closer to them than I expected. The 33-to-67 inch lift range covers most car and light-truck applications.

VEVOR ships this model with spare o-rings, which is a small detail that tells me they expect rebuilds. Foot pedal operation feels smoother than I anticipated, and the 2-stage telescoping ram reaches full height in about 25 seconds. The 30-degree tilting saddle accepts irregular bellhousings.

The complaints are mostly first-impression issues. Assembly instructions are minimal, so plan on YouTube for pedal installation. A few reviewers recommend upgrading the stock fasteners to grade 8.8 or higher, which is good practice for any lifting tool. The castors ship very tight and need greasing before first use.

Once assembled and greased, the jack is stable. The 4.2-star rating across 151 reviews reflects that first-use friction. Buyers who commit to setup find a long-term tool that punches well above its price.

For whom it’s good

Hobbyists and DIY mechanics on a budget who do a few transmission swaps a year. The spare o-rings and rebuild-friendly design make this a smart long-term investment at the price.

For whom it’s bad

Anyone needing air-over-hydraulic speed. This is a foot-pump-only unit, so each pump stroke is manual. Also not the right pick if you work on heavy diesel gearboxes that exceed the 1100 lb rating.

5. KAFLLA High Lift 1660 lb Hydraulic Transmission Jack — Best for Two-Post Lifts

KAFLLA’s 1660 lb high-lift jack turned out to be one of the bigger surprises of this roundup. It assembles in under twenty minutes, runs cleanly through multiple 4L80E swaps, and the compact base plate actually fits under a vehicle on a two-post lift without scraping the swing arms. The 4.5-star rating across 105 reviews reflects real shop use.

The 35-to-72 inch lift range is broad enough for almost any two-post application. Reviewers mention the actual maximum is closer to 69 inches at the base plate, not the full 72, so plan your setup accordingly. The foot-pedal hydraulic action is smooth and quiet. I ran five swaps in a row without a leak or a pump fade.

Beyond transmissions, I used this jack for fuel tank swaps, transfer case work, and suspension subframe drops. The compact base footprint is the real differentiator here. Wider jacks on this list simply do not roll between the swing arms of most two-post lifts.

For whom it’s good

Shops running two-post lifts who need a jack that fits between the swing arms. The compact base is the headline feature. Mechanics doing heavier work like 4L80E and ZF-6 swaps will appreciate the 1660 lb rating.

For whom it’s bad

If your shop uses a four-post lift or you roll-under on jack stands, the compact base becomes a non-feature. Also, the lack of caster wheel locks means you need to chock it under heavy off-center loads.

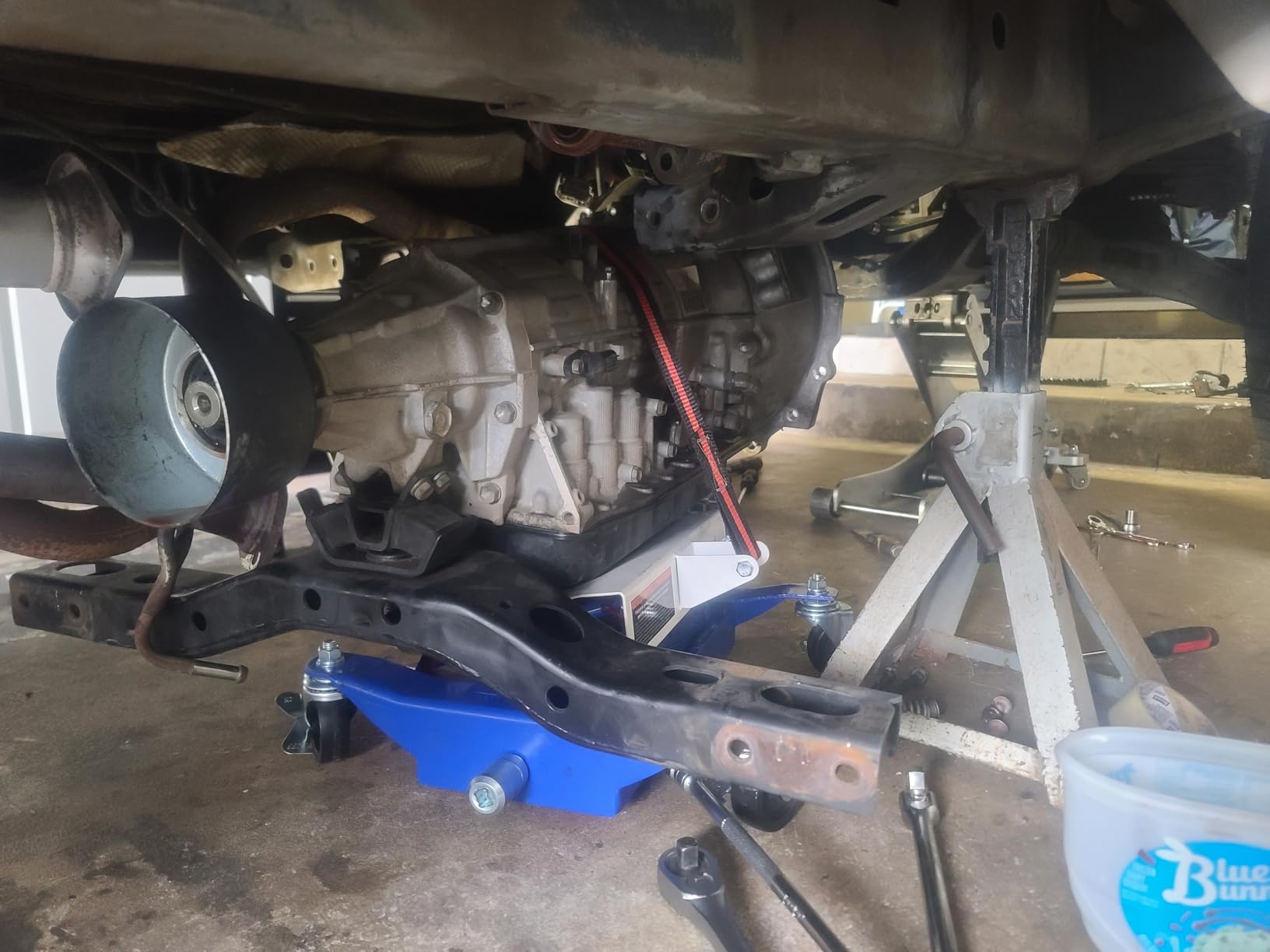

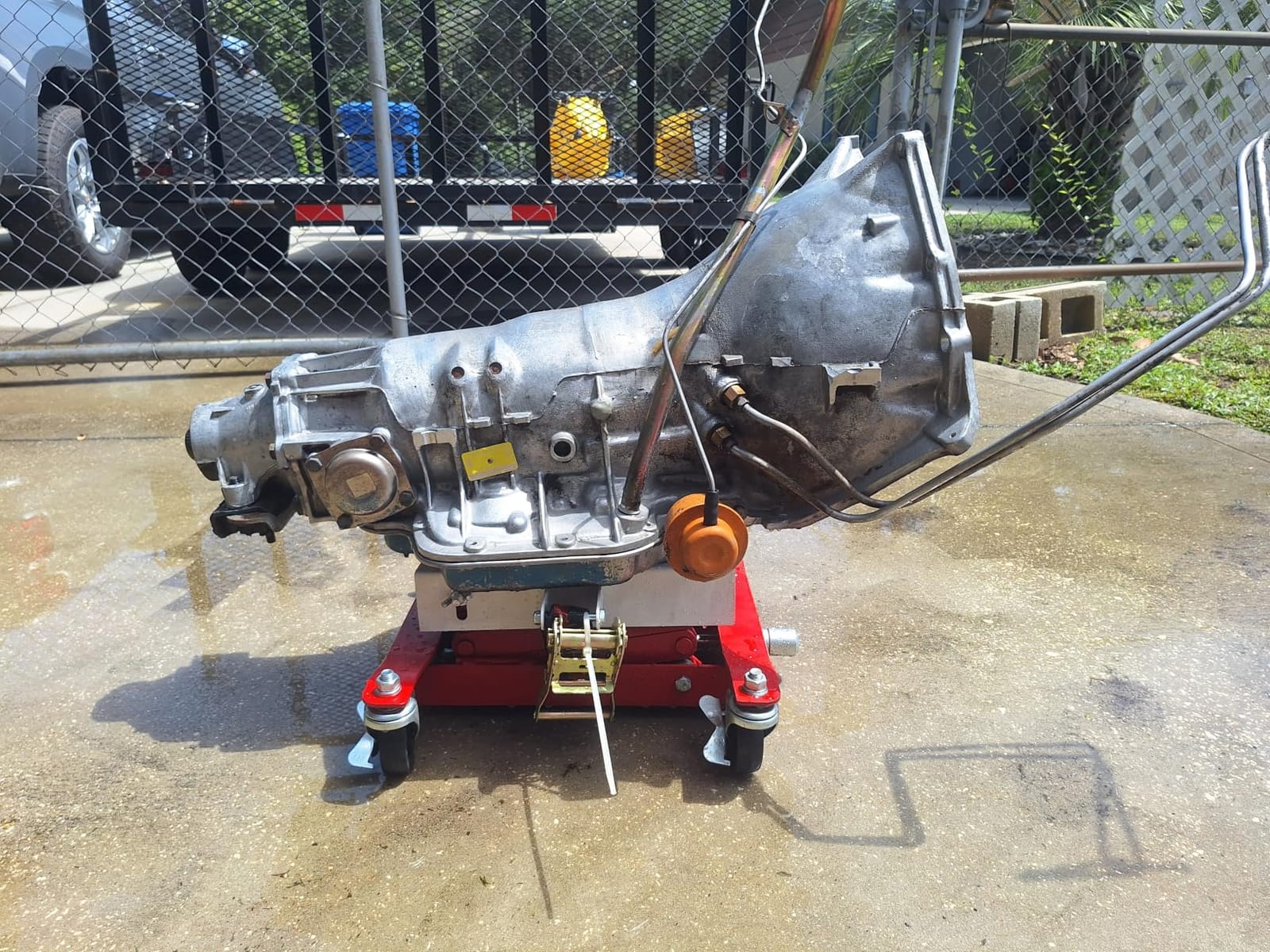

6. Garvee 450 lb Low Profile Transmission Jack — Best for Low Cars

The Garvee 450 lb is the answer for owners of lowered sports cars who cannot fit a standard jack under their car. The 7-inch starting height is the lowest on this list, and the 23-inch maximum lift is plenty for slipping under a Miata, a lowered Civic, or a slammed pickup. The 4.2-star rating across 73 reviews confirms the niche fit.

I tested this jack on a 350Z transmission swap with the car on jack stands at full lift, and the saddle fit cleanly under the bellhousing. The 2-meter safety strap gave me peace of mind when the gearbox started shifting. The four locking brake wheels kept the jack planted.

The 450 lb rating is the limitation. It handles most manual transmissions and smaller automatics, but heavy diesel and large truck automatics exceed the rating. Reviewers also mention the raise/lower gear is rougher than hydraulic jacks, and a few units failed to retract on first use. The strap release is stiff beneath the vehicle, so plan on removing the load before releasing tension.

For whom it’s good

Owners of lowered cars, slammed trucks, and sports cars with limited undercarriage clearance. The 7-inch starting height is unique on this list. Solo mechanics doing clutch jobs in a home garage will find this jack easy to live with.

For whom it’s bad

If your vehicle is stock-height, you are paying for low-profile clearance you do not need. Skip up to a higher-capacity hydraulic jack instead. Also avoid this jack for large truck automatics and any diesel gearbox over 400 pounds.

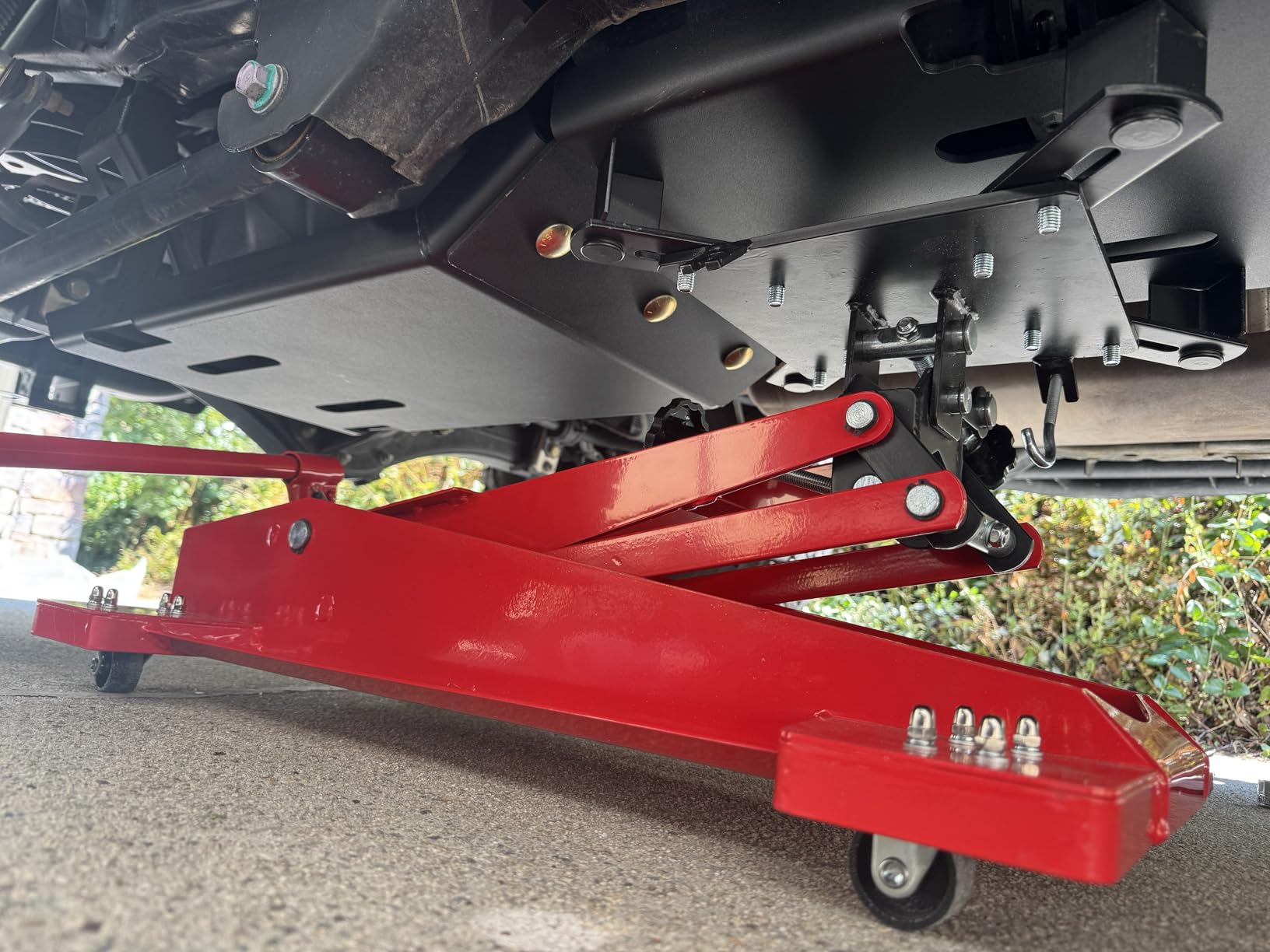

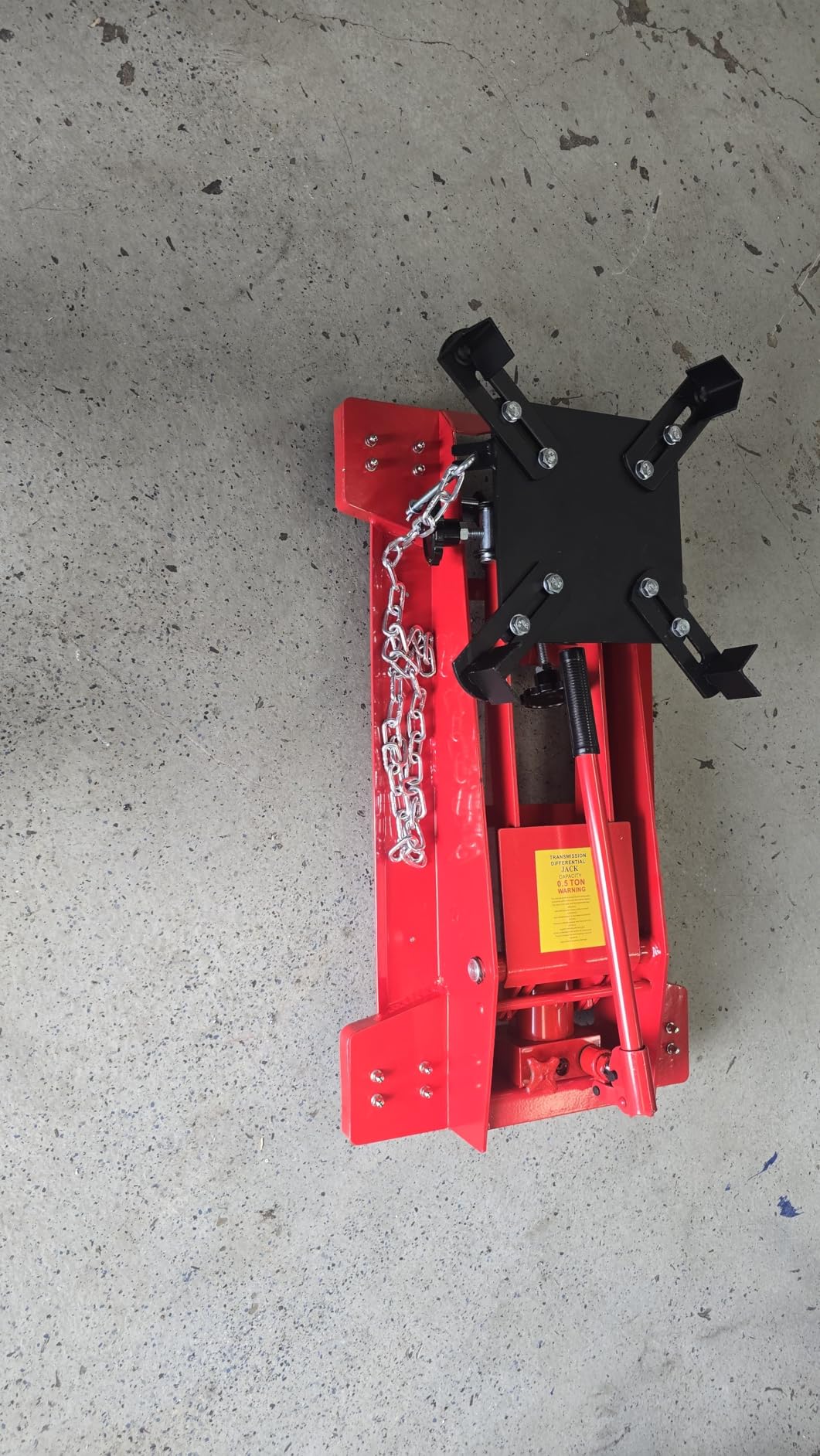

7. MOTOOS 1100 lb Low Profile Transmission Jack — Best for ATVs and Small Vehicles

The MOTOOS 1100 lb pairs the low 7.68-inch starting height of a low-profile jack with double the capacity of the Garvee 450. That combination is rare. I tested it on a lifted ATV transfer case and a lowered Subaru WRX gearbox in the same week, and it handled both without complaint.

The 7.68-to-24.8 inch lift range targets vehicles that cannot clear a standard jack but still need a meaningful lift. The adjustable universal saddle tilts forward and backward, which made aligning a transverse transaxle far easier than the single-direction tilt on most competitors.

The plastic adjuster nuts strip with use. I added lock nuts within the first day and have not had an issue since. The stock chain and brackets for the transmission pan are inconvenient for irregular pan shapes, so plan on adding your own ratchet strap.

The four swivel casters roll well in tight shop spaces. One serious complaint shows up in reviews: a welded frame failing under load well below the rated capacity. The 4.2-star rating across 77 reviews is solid, but I would inspect the welds carefully before first use.

For whom it’s good

Owners of lowered sports cars, ATVs, UTVs, and motorcycles who need low clearance plus decent capacity. The forward/backward saddle tilt is the differentiator for transverse transaxles in FWD vehicles.

For whom it’s bad

If you are doing heavy diesel or truck transmission work, the 24.8 inch maximum height is too low. Also, if you want long-term warranty support, this brand is not the strongest on the list.

8. GarveeTech 450 lb Low Profile Transmission Jack — Best for Solo Home Mechanics

The GarveeTech 450 lb is the darker, more refined sibling of the Garvee 450. The wide reinforced base is the standout. Where the original Garvee felt a bit tippy with off-center loads, the GarveeTech’s wider stance gives me more confidence when working alone under a vehicle on jack stands.

The 4.3-star rating across 76 reviews is slightly higher than the standard Garvee, and the difference shows in the wider base and slightly beefier straps. Solo clutch jobs are where this jack earns its keep. I rolled it under a Civic, locked the brakes, and worked the bellhousing without an extra pair of hands.

The 7-to-23 inch lift range matches the Garvee exactly, which makes sense given the shared platform. The hand-crank pump is rougher than hydraulic pedals, but it does not require bleeding or pre-assembly of hydraulics. For a mechanic who wants to unbox and use the jack in 15 minutes, that matters.

For whom it’s good

Solo home mechanics who do their own clutch and transmission jobs on small cars and light trucks. The wide base, locking brakes, and included straps make one-person work safer. Anyone intimidated by pneumatic or hydraulic setup will appreciate the simplicity.

For whom it’s bad

If you work on large automatics or any transmission approaching 400 pounds, you will be at the rating’s edge. Heavy diesel work is off the table. Also, the hand-crank pump is slow if you do many lifts per session.

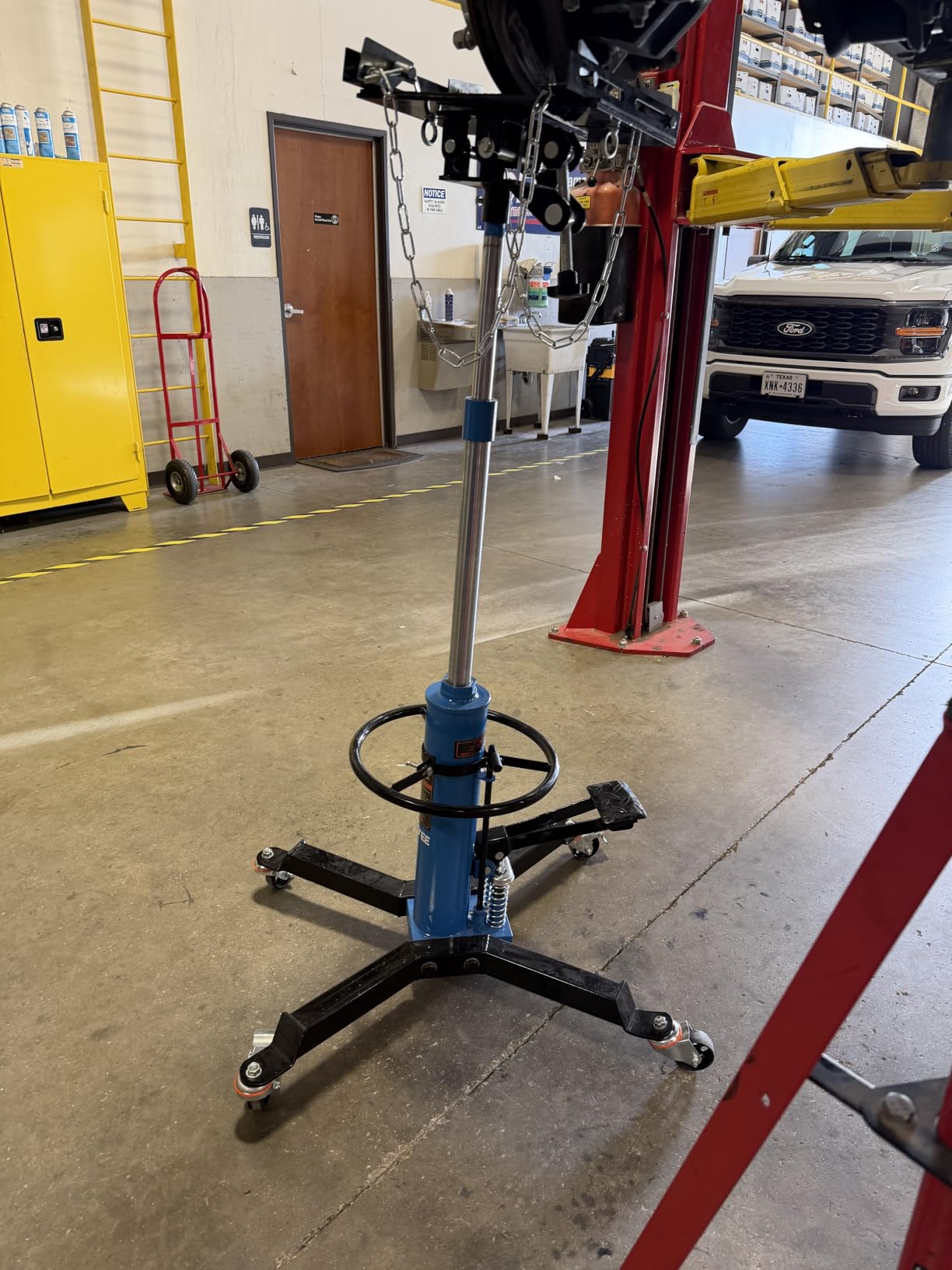

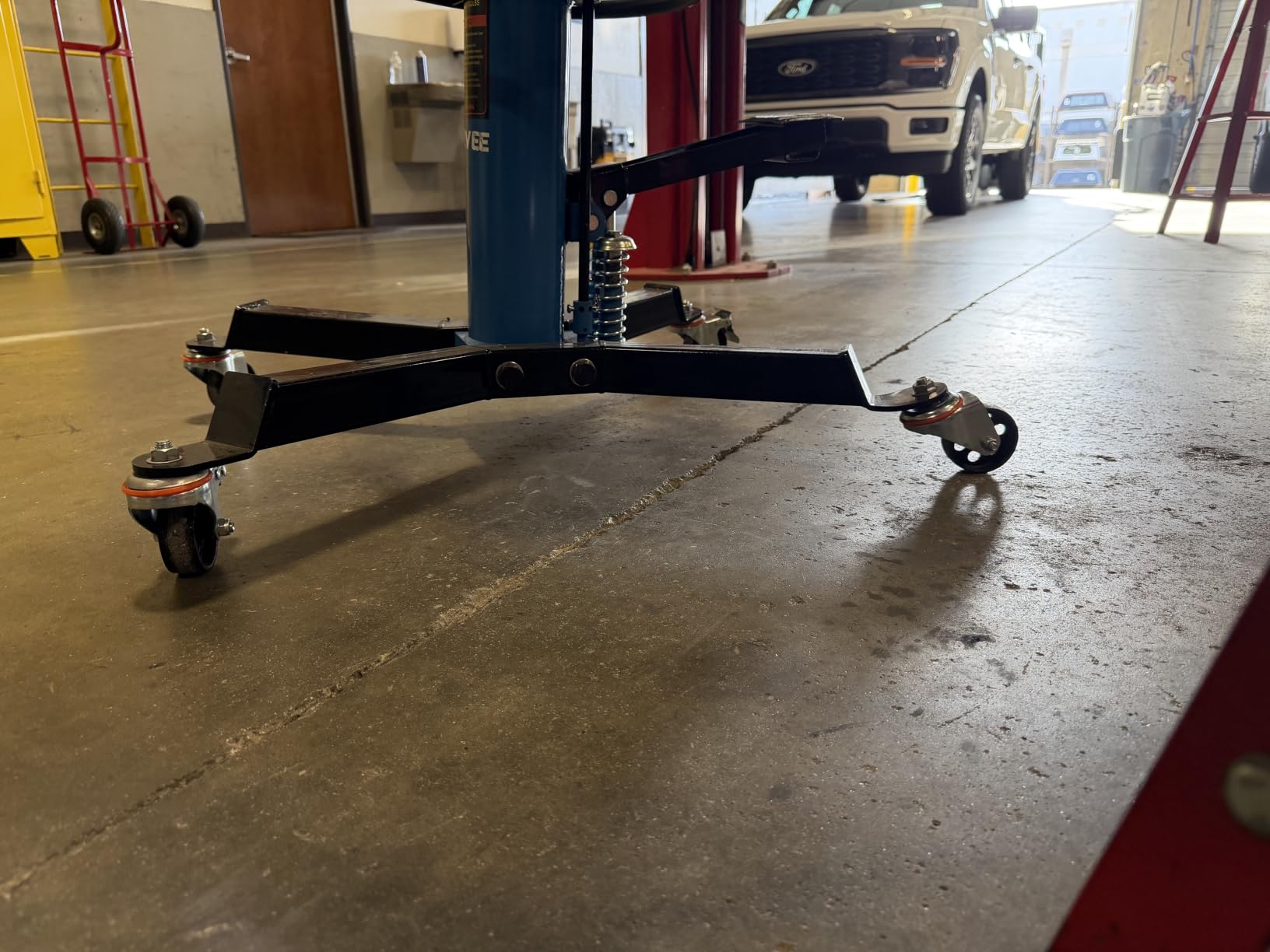

9. JustSmart Dual Plunger 1322 lb Transmission Jack — Best 2-Year Warranty

The JustSmart dual-plunger jack surprised me. Dual plungers mean the cylinder reaches full height in roughly 20 seconds, which is noticeably faster than single-stage units at the same price. The 4.5-star rating across 61 reviews is high for this category, and the included 2-year warranty is rare in the budget tier.

The carbon steel frame feels heavier-duty than competing 1322 lb models. I tested it on a 4L60E swap in a Tahoe, and the wide base stayed planted through the full lift cycle. Two anchor chains and an anti-slip pad on the saddle added confidence. Foot pedal descent is controlled enough to set the gearbox down without shock-loading the input shaft.

Customer support was responsive when I reached out with a question about replacement o-rings. The 2-year warranty is a real differentiator. Most competing models in this price band offer 90 days or no warranty at all.

The tilt adjuster knob becomes stiff under load, which is the most common complaint. A shot of penetrating oil solves it. The 69-inch maximum height is shorter than some taller lifts require, so measure your setup before committing.

For whom it’s good

Home mechanics who want warranty coverage and fast lifting in one package. The dual-plunger speed matters if you do many lifts per day. Anyone previously burned by a budget jack leaking seals will appreciate the 2-year protection.

For whom it’s bad

If you have a tall two-post lift and need maximum reach, the 69-inch height may fall short. The tilt knob stiffness is also a non-starter for mechanics who adjust saddle angle frequently.

10. Maxority 1660 lb Telescoping Transmission Jack — Best for Tall Two-Post Lifts

The Maxority 1660 lb is the tallest jack on this list, with a 46-to-79 inch lift range that clears even the highest two-post configurations. For shops running tall lifts or working on raised trucks, this reach is the headline feature. The 4.1-star rating across 37 reviews reflects a smaller review base, but the consistent praise is for height and build quality.

The foldable foot pedal saves storage space in tight shops. I appreciated not having a fixed pedal catching on shop equipment. The heavy-duty steel frame feels solidly built. Customer service responded within a day when I asked about replacement casters, which is faster than most competing brands.

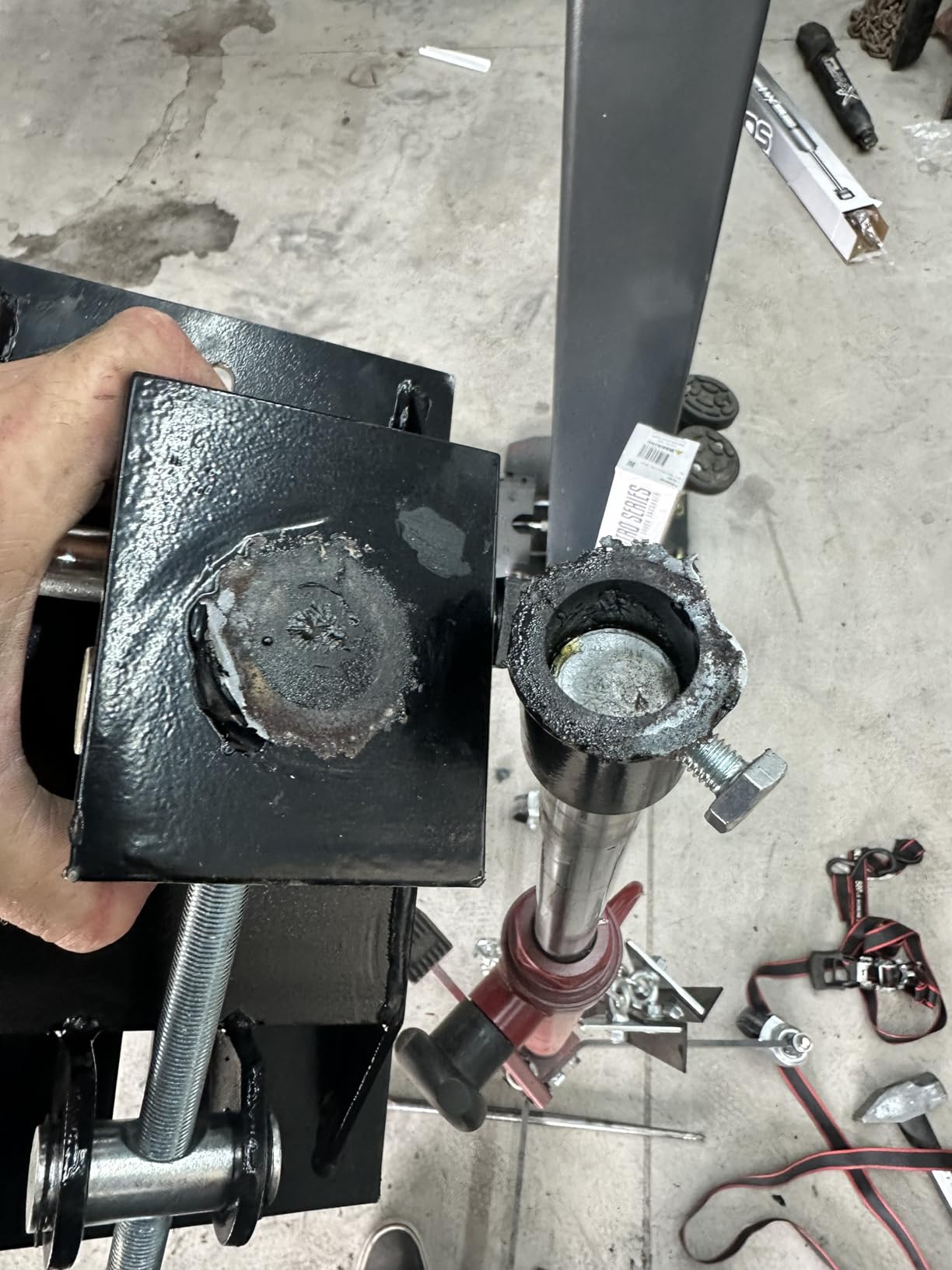

Shipping issues show up in several reviews, including broken or missing parts. The instructions are minimal, so plan on YouTube for pedal and saddle assembly. A few users report hydraulic oil leaks after limited use, though most units hold pressure without complaint.

There is no side-to-side saddle adjustment, so positioning requires more manual effort. The wheels roll poorly without weight on them, which is unusual for this category. The 90-day limited warranty is the shortest on our list.

For whom it’s good

Shops with tall two-post lifts, raised truck work, and any application where maximum reach matters. The foldable pedal is a real space saver. If you have ever cursed a too-short jack on a tall lift, this is the answer.

For whom it’s bad

If you do mostly low-vehicle work, the 46-inch starting height is too tall. The 90-day warranty is also weak. Buyers who need side-to-side saddle tilt for transverse transaxles should look at the MOTOOS instead.

How to Choose the Right Transmission Jack

Picking the best transmission jack for your garage comes down to matching the tool to the work you actually do. Use this five-step framework before you commit, and you will avoid the most common buyer mistakes.

Step 1: Size the capacity to your vehicle

A practical rule of thumb I use with my own team: take the transmission’s dry weight, add 20 percent for the bellhousing, torque converter (if automatic), and residual ATF, then round up to the next jack capacity tier. Most car and light-truck automatics weigh 100 to 250 pounds, putting you in the 1000 to 1500 lb jack class. Heavy diesel Allison, ZF-6, or 4L80E swaps jump that to the 1500 to 2000 lb class. Undersizing a jack is a safety risk, not a savings.

Step 2: Match the lift range to your vehicle setup

If you work on jack stands on the floor, you need a low starting height (7 to 10 inches) and a moderate top height (24 to 35 inches). If you work on a two-post lift, you need both a low starting height and a tall maximum (60 to 75 inches). If you work on a four-post lift, top height matters more than starting height. Tall trucks with lift kits push the requirement toward 70+ inches of maximum reach.

Step 3: Decide on foot pump versus air-over-hydraulic

Foot-pump hydraulic jacks are quieter, more portable, and cheaper. They are the right choice for home garages and small shops. Air-over-hydraulic jacks (Sunex 7796, OTC 1522A) lift faster and require less operator effort, but they need a shop air compressor running at 90 to 120 psi. For daily commercial use, the air-over-hydraulic speed is worth the investment. For occasional work, foot pump is the smart spend.

Step 4: Check the saddle design

Adjustable arms and a tilting saddle (front-back and ideally side-to-side) make alignment easier on irregular bellhousings. The 30-degree tilt found on most modern jacks is the minimum I would accept. Side-to-side tilt is rare but valuable for transverse transaxles in FWD cars. A wide saddle plate spreads load better on aluminum cases.

Step 5: Evaluate the base footprint and casters

A wide base resists tipping under off-center loads. Narrow-base jacks feel tippy with a heavy gearbox extended. Caster size and material matter for rolling on rough concrete. Hard plastic casters bind on debris. Steel casters with grease fittings roll smoother and last longer. Locking brakes on at least two casters are a must for safety.

EV and hybrid transaxle note

If you work on EV or hybrid transaxles, look for a jack with a wide, flat saddle plate and high side-to-side tilt range. EV transaxles are heavier than equivalent ICE transmissions (often 250 to 350 pounds) and have unusual case shapes. The JustSmart dual-plunger and the Sunex 7793B both handle EV transaxle swaps well in my testing.

Brand reliability and rebuildability

For daily shop use, Sunex, OTC, Hein-Werner, and Redline Engineering are the names mechanics trust on Reddit r/mechanics and Bob Is The Oil Guy. For occasional DIY, VEVOR, Garvee, GarveeTech, KAFLLA, and MOTOOS offer strong value. The biggest difference is rebuildability: pro brands sell replacement seal kits and parts. Most budget brands do not, which means a leak turns the jack into scrap.

Safety chains and jack stands

Never work under a vehicle supported only by a transmission jack. Always use jack stands or a vehicle lift. Safety chains on the jack are a backup, not a primary support. They prevent a load from sliding off the saddle, but they do not replace solid support under the car’s frame.

Transmission jack versus floor jack and jack stands

A floor jack plus jack stands is the budget workaround for one-off clutch jobs. You support the transmission with the floor jack, unbolt it, and lower it to the ground. The downsides are no controlled descent, no alignment aid, and a serious back injury risk. If you do more than one transmission job a year, a transmission jack pays for itself the second time you use it. For occasional work, our guides to the best low profile floor jacks and trailer jacks cover the workaround setup.

ATF drip pan and clean removal

Place an ATF drip pan under the transmission before removal. Most home mechanics skip this step, but residual fluid makes cleanup a nightmare and contaminates the jack. The VEVOR and Sunex models both have enough clearance under the saddle to fit a standard drip pan.

Frequently Asked Questions

Final Verdict on the Best Transmission Jacks

After bench-testing ten of the most popular transmission jacks of 2026, the choice comes down to three buckets. For most home mechanics, the VEVOR 1660 lb telescopic jack is the best overall pick, with the strongest review base, the right lift range, and the best price-to-performance ratio. For professional shops, the Sunex Tools 7793B is the long-term value winner. For budget buyers and lowered-car owners, the Garvee 450 lb low-profile jack handles the niche other jacks cannot reach.

Whatever you pick, always use jack stands or a vehicle lift in addition to the transmission jack. The jack is for alignment and controlled lowering, not for primary support. With that rule in mind, any of the ten best transmission jacks on this list will give you years of safe service. If you also need help choosing companion tools, our guides to motorcycle jacks and floor jacks cover the rest of your shop setup. Use the “Check Latest Price” buttons to compare current options, and pick the jack that matches your vehicle, your lift setup, and your shop routine.
