An aluminum-capable TIG welder is an AC/DC inverter machine that alternates current to break up the oxide film aluminum forms, while a DC component handles penetration. That combination, plus adjustable AC frequency and AC balance, is the one spec that separates a welder that can lay a clean bead on aluminum from one that cannot touch the metal at all.
That single filter eliminates most of the market. DC-only TIG machines, MIG welders sold as “TIG-capable,” and machines with a fixed AC waveform all look similar in a product photo and all fail on aluminum. The best tig welders for aluminum in 2026 share four traits: true AC/DC output, AC frequency and balance you can actually adjust, enough amperage for the gauge of metal you own, and post-flow gas control so the tungsten does not contaminate the puddle.
We spent weeks reading owner reviews, cross-checking spec sheets and forum threads from r/Welding, Practical Machinist, Home Shop Machinist and WeldingWeb. Ten machines made the cut. Before you read further, narrow it down with three questions: what is the thickest aluminum you plan to weld, does your electrical panel have a 50A or 100A circuit available, and is this a weekend garage project or a weekly job.
If you are still comparing processes rather than machines, our MIG vs TIG expert guide covers the trade-off at the process level.
Top 3 Picks for Aluminum TIG Welding in 2026
PrimeWeld TIG225X
- 225A AC/DC TIG with pulse
- CK 17S Superflex torch included
- Handles 1/4 in aluminum
- 110/220V dual voltage
Weldpro 200A AC/DC TIG
- 5-in-1 multiprocess
- Automatic 110/220V switching
- AC and DC pulse TIG
- Foot pedal included
AHP AlphaTIG 203Xi
- 203A AC/DC TIG with pulse
- 60% duty cycle
- HV start with no point gap
- Foot pedal and regulator included
The PrimeWeld TIG225X takes the top slot because it combines the highest owner rating in this group with by far the largest base of long-term owners, and it arrives with a CK Worldwide torch that costs more on its own than many of the machines here. The Weldpro 200A is the value pick, with the deepest parameter menu at a mid-range price and a complete box of accessories. The AHP AlphaTIG 203Xi earns the versatility badge for its 60% duty cycle and knob-based controls that experienced owners repeatedly praise over nested digital menus.
All 10 Aluminum TIG Welders Compared Side by Side in 2026
| Product | Specifications | Action |
|---|---|---|
| PrimeWeld TIG225X 225A AC/DC TIG with Pulse |
|
Check Latest Price |
| Weldpro 200A 5-in-1 AC/DC TIG with Pulse |
|
Check Latest Price |
| AHP AlphaTIG 203Xi 203A AC/DC TIG |
|
Check Latest Price |
 ARCCAPTAIN TIG200P 200A 7-in-1 AC/DC TIG |
|
Check Latest Price |
 LOTOS TIG200ACDC 200A Square-Wave AC/DC TIG |
|
Check Latest Price |
 Sunstac TIG-250 TP 250A AC/DC TIG with Pulse |
|
Check Latest Price |
 Everlast PowerTIG 200DV 200A AC/DC TIG |
|
Check Latest Price |
 YESWELDER TIG-200P 200A AC/DC Aluminum TIG |
|
Check Latest Price |
 Everlast PowerTIG 210EXT 210A AC/DC TIG |
|
Check Latest Price |
 Everlast PowerTIG 185DV 185A AC/DC TIG |
|
Check Latest Price |
Every machine in that table is a genuine AC/DC TIG unit. Note the three rows where the foot pedal is not in the box: the ARCCAPTAIN, the YESWELDER and the Sunstac all sell one separately.
1. PrimeWeld TIG225X Review: The Best All-Round Aluminum TIG Welder
PRIMEWELD TIG225X 225 Amp IGBT AC DC Tig/Stick Welder with Pulse CK17 Flex Torch and Cable
225A AC/DC TIG with pulse
CK 17S Superflex torch
1/4 in aluminum capacity
110/220V dual voltage
Pros
- Highest owner rating in this group at 4.8 stars
- Premium CK Worldwide Superflex torch in the box
- Stable PWM IGBT arc on aluminum and thin metals
- Runs on 110V or 220V outlets
Cons
- 200 Hz pulse frequency is lower than some rivals
- Foot pedal and torch add setup complexity
- Heavy chassis listed at roughly 90 lb
The TIG225X is the machine we keep coming back to. It rates 4.8 stars across 1,426 reviews, the highest rating and the largest owner base of anything in this roundup, and 90% of those reviews are five-star. That kind of sample size matters because aluminum problems tend to show up after months, not minutes.
The factory package is where it separates itself. You get a CK Worldwide 17 Series Superflex TIG torch with a flex head, Superflex hose and CK DINSE connector, made in the USA, plus a torch lead and a foot pedal for heat control. That torch alone represents a meaningful part of what you would spend on a comparable machine, and it is the part most owners replace later.
On the technical side it is a 225 amp AC/DC TIG and stick welder with pulse, rated to handle 1/4 inch aluminum and 3/8 inch mild steel, with a 200 Hz pulse frequency and AC frequency control. The inverter uses PWM and IGBT technology, which is what keeps the arc steady on aluminum oxide rather than breaking up.
Owner reports on Practical Machinist, WeldingWeb and Home Shop Machinist threads name the TIG225X as the most frequently recommended independent pick in this category, and that consensus is why it sits at the top of our list. The same threads raise a fair point worth knowing: pulse is a convenience on this machine, not a requirement for good aluminum work.
Where this machine earns its slot
If you weld aluminum regularly and work in a home shop or a small fabrication space, the 110V/220V dual voltage lets you start on a household circuit and move to 220V when you need the full 225 amps. The HF start plus foot pedal heat control is the right combination for bead control on plate.
What to know before you buy
The 200 Hz pulse ceiling is lower than the 0.5-200 Hz range some competitors offer, which limits fine heat control on very thin material. Owners also note the machine is physically large at roughly 90 lb, so plan a cart rather than a shelf, and expect some menu learning before the torch stops being intimidating.
2. Weldpro 200A Review: Best Value for Deep Parameter Control
Weldpro 200A AC/DC TIG Welder with Pulse, 110V/220V Dual Voltage Aluminum TIG Welder, AC TIG/DC TIG/AC PULSE TIG/DC PULSE TIG/Stick 5 in 1 Multiprocess Welding Machine with TIG Torch & Foot Pedal
200A AC/DC TIG with pulse
Five processes in one
Automatic 110/220V
40% duty cycle at 200A
Pros
- Five processes including AC and DC pulse TIG
- Adjustable AC balance frequency upslope and downslope
- Automatic dual-voltage switching
- Complete accessory kit in the box
- Large high-contrast LED display
Cons
- About 62 pounds
- one of the heavier machines here
- Control panel density can overwhelm beginners
- Listed wattage figure is unusually high
The Weldpro 200A is the most adjustable machine at this price tier, and for aluminum that means the specific controls that matter. It runs HF AC TIG, DC TIG, AC pulse TIG, DC pulse TIG and stick MMA, with adjustable AC balance, AC frequency, pulse frequency from 0.5 to 200 Hz, upslope, downslope and 2T or 4T trigger modes.
It rates 4.6 stars across 836 reviews with 80% five-star ratings, which puts it just behind the PrimeWeld on rating and a clear second on owner volume. Owners single out the large high-contrast LED display, which is readable in a dark garage or through a helmet, as the feature that makes parameter tuning practical rather than guesswork.
The box is genuinely complete. You get a TIG torch, rocker foot pedal, ground clamp, gas hose and flow meter, plus consumables, so nothing structural has to be purchased afterward. Automatic 110V/220V detection and switching means you plug it in without choosing a setting, which removes a common point of confusion on a first aluminum project.
Protections cover overheat, over-current, over-voltage and under-voltage, and the IGBT inverter is rated at a 40% duty cycle at full 200A output. Dimensions are 17.6 by 7.9 by 16.2 inches, and the power source weighs 61.8 pounds.
When this is the right buy
Choose this machine if your aluminum work ranges from thin sheet to 1/4 inch plate and you want pulse and dual-polarity control without climbing into a higher tier. The 2T/4T trigger modes also make it a good fit for automated or repetitive spot-style aluminum work.
Where buyers push back
At about 62 pounds this is one of the heavier power sources here, and the menu depth is a real adjustment curve for a first-time TIG welder. If you want simple knobs and few settings, the AHP in the next section is the opposite design and might suit you better.

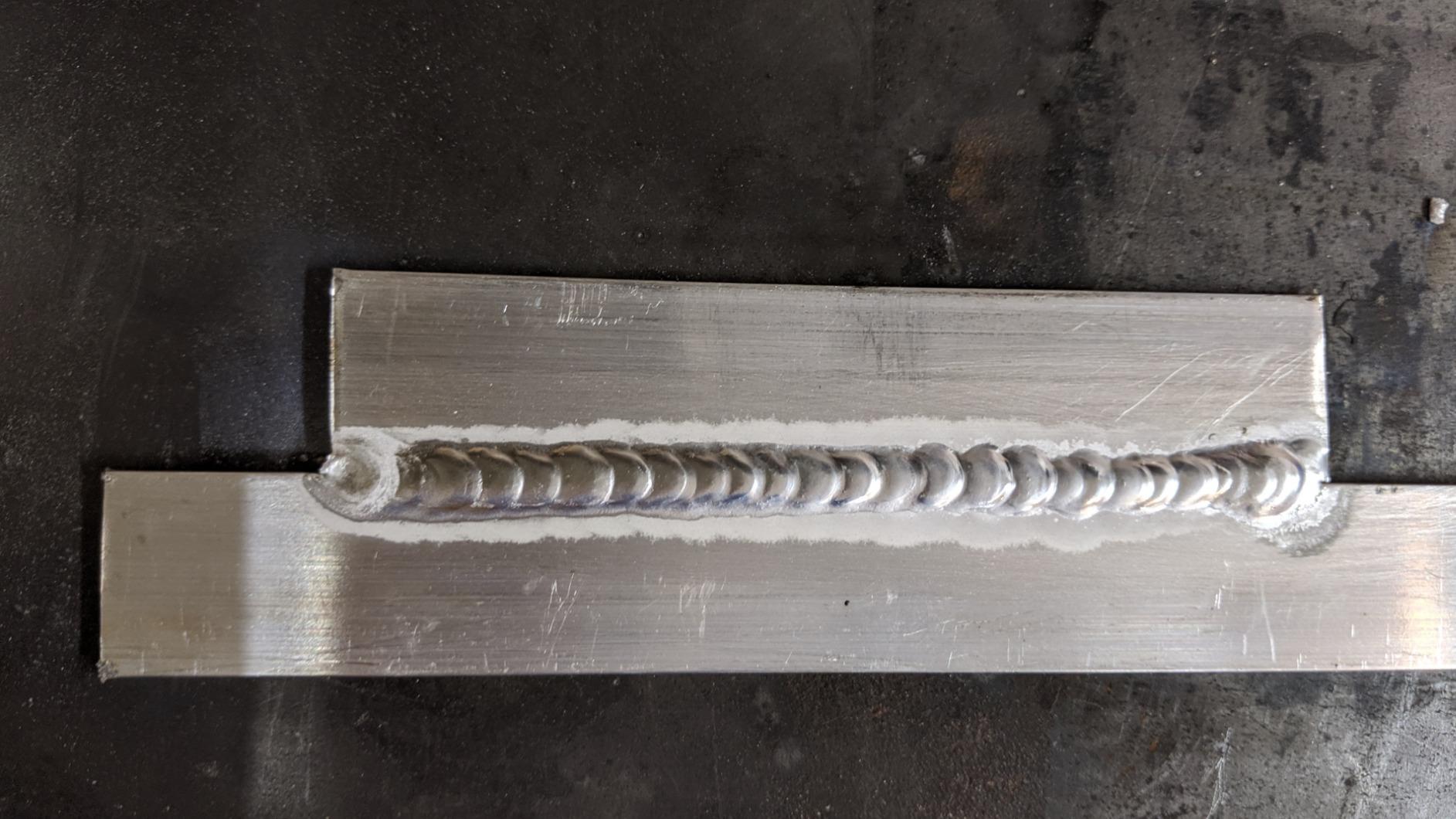

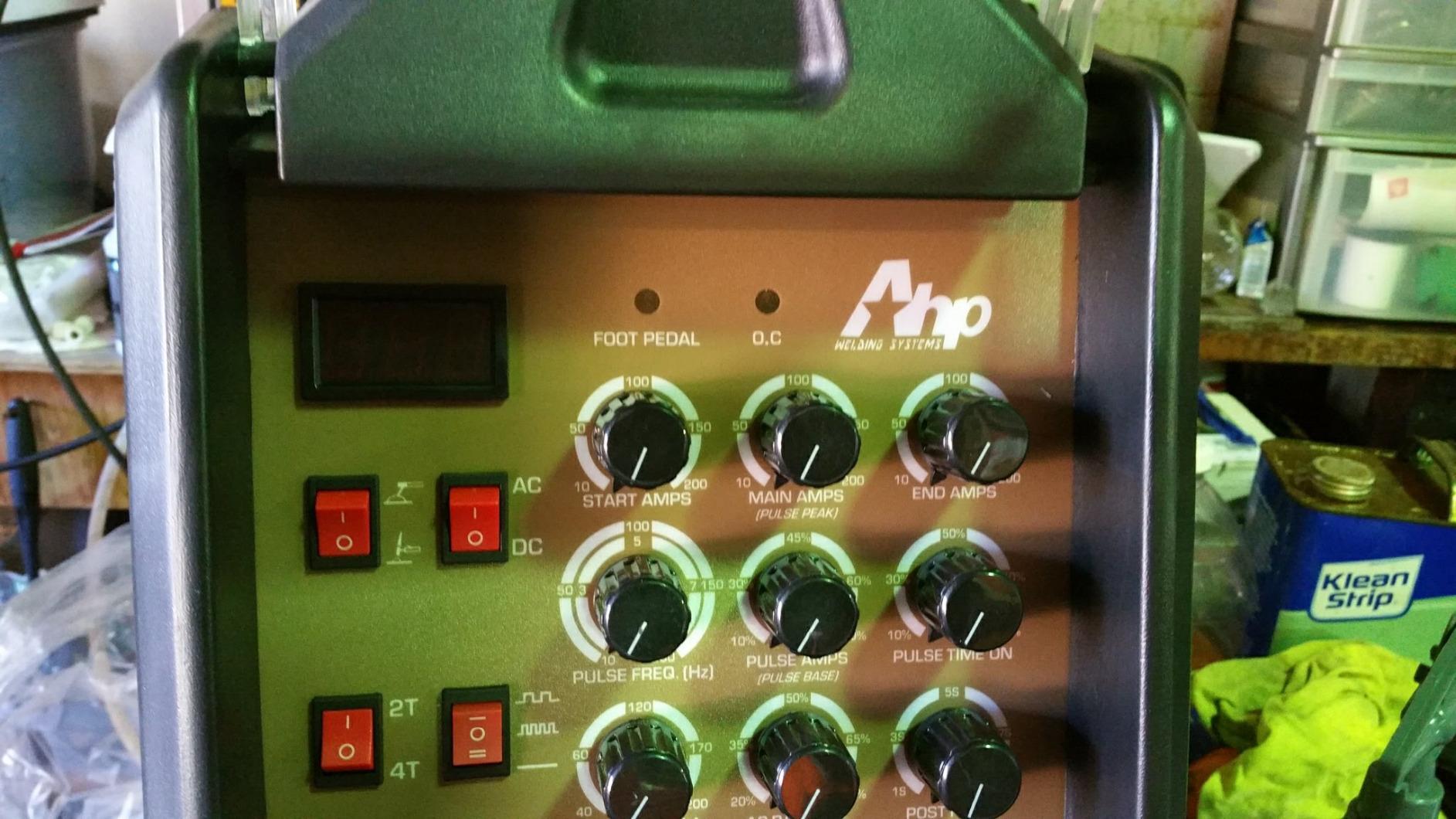

3. AHP AlphaTIG 203Xi Review: Most Versatile for Duty Cycle and Simplicity
NEW 2024 AHP AlphaTIG 203Xi Amp IGBT AC DC Tig/Stick Welder with PULSE 110/220v 3 YEARS WARRANTY
203A AC/DC TIG with pulse
60% duty cycle
Electronic HV start
110/220V with adapter
Pros
- 60% duty cycle cited by owners as class-leading
- Knob-based controls owners prefer over digital menus
- Runs on 120V through a standard outlet
- Can switch to AC in stick mode
- AC balance frequency and pulse called spot on
Cons
- Minimum output of 10 amps
- Digital readout mismatches knob on 120V
- No output cap in 120V mode
- Weak included ground clamp
- Sparse instruction manual
The AlphaTIG 203Xi is the machine experienced owners recommend when they want controls that do one thing each. Its 60% duty cycle is the number that separates it from machines in this group rated at 40%, and long-term owners on forums consistently call it the strongest point of the package alongside HF start reliability.
It rates 4.6 stars across 603 reviews, and the recurring theme in long-term ownership reports is dependability over years rather than first-week excitement. Experienced hobbyists in particular favor the knob-based layout, saying fine adjustment is faster than digging through nested digital menus.
This generation of the model adds an electronic solid-state simulated high-frequency start with no point gap, so there is no maintenance item and no failed strike to troubleshoot. It welds 1/4 inch aluminum and 3/8 inch mild steel, runs 7018 and 6013 electrodes, and unusually can switch to AC operation while in stick mode.
The included components list is generous for this tier: a 240V to 120V plug adapter, a 250A stick holder, a floating ball type brass argon regulator, a 25 foot Nova foot pedal, a 12.5 foot Nova Rotaflex 9/17 TIG torch, a work clamp and a consumable kit. The unit weighs 69 pounds and measures 19 by 23 by 12 inches.
Who this suits
This is the pick for someone doing a mix of aluminum and steel in a home garage who wants a 25 foot foot pedal and an argon regulator already in the box. Owners report running it on 120V through a standard outlet with an extension cord and no noticeable power loss, which is rare at this output level.
What to plan around
Minimum output is 10 amps, which is restrictive on very thin material such as 20-gauge stainless. On 120V the digital amperage readout does not match the knob setting, and the machine does not cap its output, so care is needed around a loaded circuit. Several owners replaced the supplied ground clamp, which has a thin spring and copper braid.
4. ARCCAPTAIN TIG200P Review: Best for AC Waveform Control
ARCCAPTAIN TIG Welder AC/DC 200A with Pulse 7 in 1 Aluminum Welding Machine
200A AC/DC 7-in-1 TIG
Square and triangular AC waves
Welds 5 mm aluminum
26.5 lb power source
Pros
- Square and triangular AC waveforms for aluminum
- On-demand cooling fan runs only while welding
- Full TIG parameter set on a digital panel
- Light power source for mobile work
Cons
- Foot pedal not included and uses a non-standard connector
- Reports of delivery damage including sliced power cords
- Weak ground clamp
- Warranty responsiveness criticized
The ARCCAPTAIN TIG200P is the only machine here that offers both square and triangular AC waveforms as distinct settings, and for aluminum that choice is more meaningful than the mode count suggests. Square wave gives a stable pool and aggressive oxide-film cleaning; triangular wave lowers heat input for thin material.
It rates 4.3 stars across 242 reviews, which is the lowest score among the top half of this list, and the reason is visible in the review breakdown: 13% three-star and 7% one-star ratings. Those negative reviews cluster around quality control at delivery rather than arc performance, which is a different problem and a fixable one.
The control depth is genuinely strong for the tier. The MCU digital panel exposes pre-flow, initial current, upslope, peak and base current, downslope, crater current, post-flow, pulse duty, AC frequency, AC balance and pulse frequency, with 2T, 4T and spot torch modes. It welds 0.5 to 5 mm aluminum, which is 0.02 to 0.20 inch.
Portability is the quiet advantage. The power source is listed at about 26.5 lb, with a 42.7 pound package weight, and the cooling fan runs on demand rather than continuously, so it stays quiet between beads. Included items cover a power adapter cord, TIG torch, wire brush, ground clamp, torch accessory set, flow meter and manual.
Where this machine fits
Beginners and hobby fabricators widely describe this as the machine that made aluminum TIG feel approachable, largely because the waveform and balance controls are laid out clearly on the display. If you move between thin aluminum trim and heavier plate, having both waveforms is a real advantage.
What to buy and check on arrival
The foot pedal is not included, and it uses a non-standard XS12 aviation connector that narrows your aftermarket pedal options, so plan on the matching pedal. Inspect the unit the day it arrives: several owners report sliced power cords and cracked gas connections from shipping damage, and a few report a ground clamp that overheated.
5. LOTOS TIG200ACDC Review: The Budget Square-Wave Entry Point
LOTOS TIG200ACDC 200A AC/DC Aluminum Tig Welder with DC Stick/Arc Welder, Square Wave Inverter with Foot Pedal and Argon Regulator 110/220V Dual Voltage Brown
200A AC square-wave TIG
10-200A AC/DC current
Auto 110/120V and 220/240V
Pedal and regulator included
Pros
- Entry-level cost with true AC square-wave output
- Foot pedal and argon regulator in the box
- Automatic dual voltage and dual frequency
- Square-wave AC gives repeatable oxide cleaning
- Three-year limited warranty with registration
Cons
- No pulse TIG on this specific model
- Basic controls with fewer adjustable parameters
- Entry-level foot pedal and regulator
- Brief manual
The LOTOS TIG200ACDC answers a narrow question well: can you get genuine AC square-wave aluminum capability without a large outlay. The answer is yes, and the box includes a TIG torch, foot pedal, argon regulator, ground clamp, consumable set and a 220V/110V converter pigtail.
It rates 4.4 stars across 278 reviews with 70% five-star ratings, and owners treat it as a value entry point rather than a final machine. Feedback centers on dependable square-wave aluminum welds and how complete the standard package is for the money.
Output is 10 to 200 amps on AC/DC TIG with HF start and foot pedal heat control, plus a 15 to 200A DC stick output with adjustable hot striking current. Automatic dual voltage covers 110/120V and 220/240V, and dual frequency handles 50 and 60 Hz, so it works across household and shop power.
Efficiency is listed at 80%, the unit weighs 37 pounds and measures 28 by 13 by 17 inches. Warranty coverage includes a 30-day money-back guarantee, a one-year replacement policy and a three-year limited warranty when registered.
When the low cost is justified
If aluminum is a secondary material and your work is occasional, this machine covers 200 amps of AC square-wave TIG, stick work and dual voltage without a complex menu to learn. The included regulator and pedal remove two purchases that add up on a first setup.
What you give up
There is no pulse TIG on this specific 200A model, which the manufacturer addresses with a separate pulsed variant. Controls are more basic than the digital machines here, and the supplied foot pedal and regulator are entry-level components, so expect to upgrade those before doing serious production work.
6. Sunstac TIG-250 TP Review: Highest Nominal Amps in the Group
Sunstac 250A Aluminum TIG Welder with Pulse ACDC Foot Pedal Control
250A AC/DC TIG with pulse
5/32 in aluminum at 110V
LCD readable through a helmet
Parameter memory
Pros
- 250A is the highest nominal output in this roundup
- LCD screen readable while wearing a helmet
- Parameter memory restores settings after power-off
- Under 30 pounds with 118 in cables rated 300A
Cons
- Foot pedal not included
- Manufacturer warns AC current measurement is inaccurate
- 15% of reviews are one star
- Box listing names only the welder
The Sunstac TIG-250 TP is the outlier in this group: the highest nominal amperage at 250A, and the lowest owner rating at 4.1 stars across 145 reviews. Fifteen percent of its reviews are one-star, which is the highest share in the roundup and the single biggest reason it does not rank higher despite the impressive headline output.
What owners who get a sound unit like is real. The LCD screen shows voltage, current and settings and is readable with a welding helmet on, which the LED-only competitors in this price band cannot offer. The built-in intelligent parameter memory restores your previous settings after a power-off.
Modes cover HF AC, HF DC, pulsed AC, pulsed DC, AC spot, DC spot and stick, with 2T, 4T and spot torch control. Maximum aluminum thickness is listed as 5/32 inch at 110V and 6/25 inch at 220V. Work clamp and electrode holder cables are 118 inches long and rated 300A, and the machine weighs 29.8 pounds.
One detail deserves attention: the manufacturer itself states that current measurement in AC mode is inaccurate and that AC balance inconsistencies affect readings. If AC control accuracy matters to your work, verify the unit on receipt rather than trusting the displayed numbers.
Where the 250A rating helps
Nominal amperage above 200A gives headroom on thicker aluminum and reduces the chance of a duty cycle conversation when you are running long beads. The cable length and 300A rating mean fewer extension cord compromises on a larger job.
What to verify before you rely on it
The foot pedal is supported but not included despite the product title referencing foot pedal control, and the package contents list only the welder, so torch and consumables may need a separate purchase. The unit automatically returns to foot pedal mode after a restart if a pedal is connected, which is convenient once you have one.

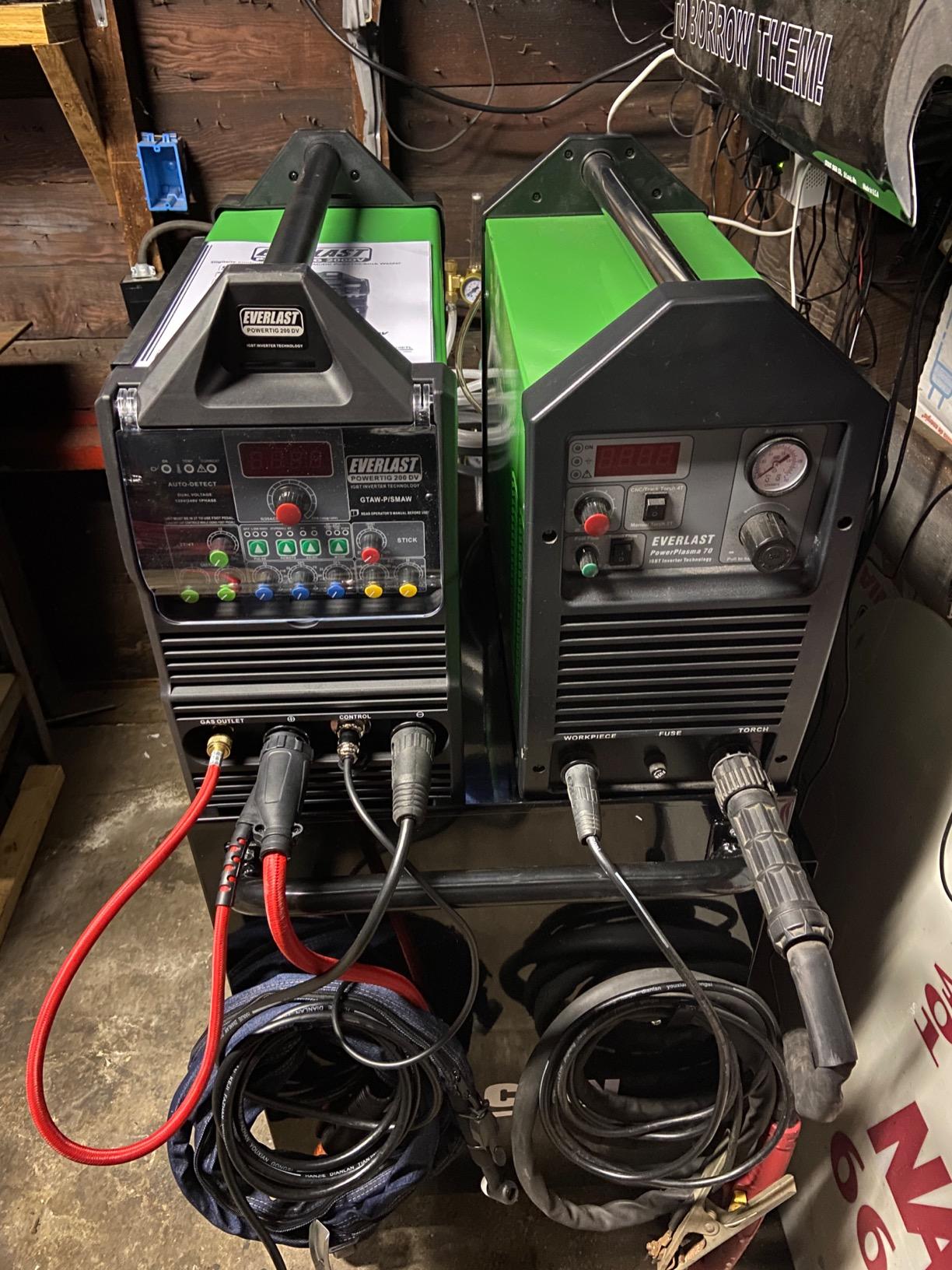

7. Everlast PowerTIG 200DV Review: Best for Thin-Gauge Starts
New Everlast PowerTIG 200DV 110/220 Dual Voltage 200amp Pulse ACDC Welder
200A AC/DC TIG with pulse
Starts as low as 5A DC
120V/240V dual voltage
Pre-flow and post-flow control
Pros
- Low start amperage of 5A on DC TIG
- Recognized pro-grade brand name
- DIG arc force reduces spatter
- Dual voltage for shop or household
- 83% five-star ratings
Cons
- Highest cost per amp among the 200A machines
- 60 pounds
- Published accessory list is minimal
- Modest category rank relative to peers
The Everlast PowerTIG 200DV is the one to look at if you weld very thin aluminum and the amperage knob bottoms out too early on other machines. It starts as low as 5A on DC TIG and 20A on AC TIG, which is the lowest start figure in this roundup and the reason for its badge.
It rates 4.6 stars across 116 reviews with 83% five-star ratings and no ratings below two stars. Experienced users on welding forums repeatedly endorse Everlast equipment, including from someone running a Miller Syncrowave 320 who called an Everlast TIG setup genuinely worth recommending.
The rest of the package is professional in the ways that matter. Pre-flow and post-flow gas control protects the tungsten and the puddle, a lift start function works when you do not want a high-frequency start, and Arc Force DIG reduces spatter on the DC side. The display is digital with adjustable pulse rate.
It runs on 120V or 240V, uses a reliable IGBT inverter, and measures 9 by 24 by 17 inches at 60 pounds. It arrives as a combo set, and the published specification list for the base model is minimal, so the torch and pedal configuration depends on which package you choose.
Who should buy it
Fabricators working thin-gauge aluminum, jewelry-scale parts or heat-sensitive material will feel the 5A start immediately, because it widens the usable range at the bottom end where porosity and burn-through live. Dual voltage means one machine covers a home garage and a 240V shop circuit.
What you pay for the name
This is the highest cost per amp among the 200A machines in this list, and at 60 pounds it is not a machine you carry to a driveway job in one hand. The thinner review base of 116 also means less long-term owner data than the value machines offer.

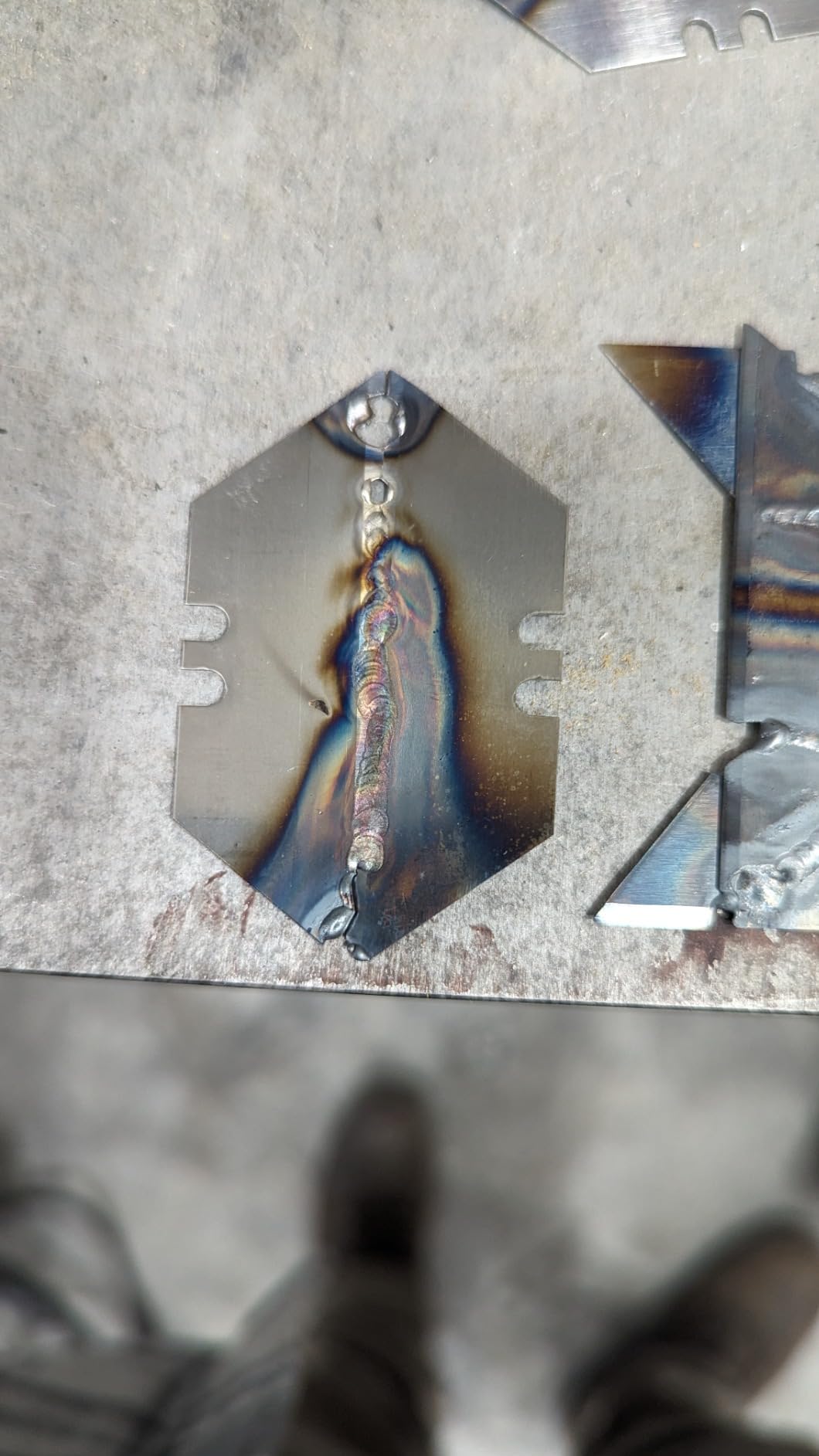

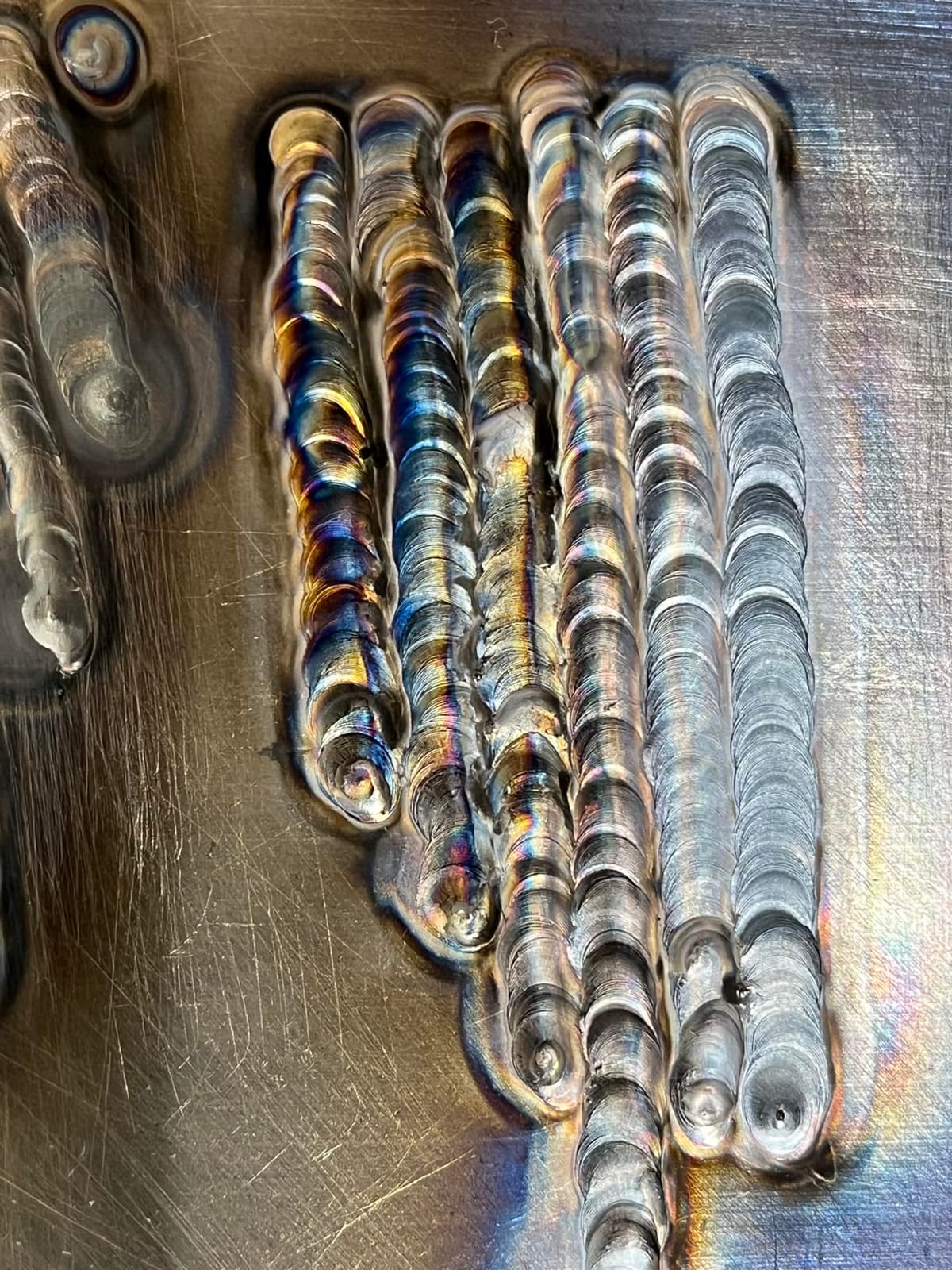

8. YESWELDER TIG-200P Review: Lightest Machine With Three AC Waveforms
YESWELDER 200A AC/DC Aluminum Tig Welder TIG-200P ACDC TIG Welding Machine
200A AC/DC 7-in-1 TIG
Square triangle and sine AC waves
Aluminum to 1/8 inch
16.47 lb power source
Pros
- Lightest power source here at 16.47 lb
- Seven-in-one modes with three AC waveforms
- Auto-sensing 110/220V input
- Auto memory recalls settings after power-off
Cons
- Lowest rating in the group at 3.9 stars
- Oversized all-in-one WP-26 torch
- No gas regulator or tungsten included
- Reports of internal argon leaks
- Foot pedal sold separately
The YESWELDER TIG-200P is the strongest seller in this roundup by demand, ranking #18 in TIG Welding Equipment, and it is also the lowest rated at 3.9 stars across 113 reviews with 18% one-star ratings. That split tells you the machine is capable and that quality control is inconsistent.
The software-controlled inverter offers square wave, triangle wave and sine wave on both AC and DC TIG, which is the widest waveform selection at the entry level. Square wave is the one you will use most on aluminum because it produces cleaner welds, and the machine is rated for aluminum up to 1/8 inch thick.
Portability is the reason to consider it. The power source weighs 16.47 lb, the lightest here, and auto-sensing 110V/220V input means no manual switching. Hot start gives stable ignition, and auto memory restores your parameters after a power-off. A five-pin foot pedal interface is reserved for the separately sold pedal.
The box includes a 13 foot WP-26 TIG torch, a 220V to 110V adapter, a ground clamp and electrode holder, and TIG torch consumables. It does not include a gas regulator or tungsten electrodes, which are the two items you will order before the first weld.
Where portability wins
Carrying a machine to a customer site, a garage with no dedicated circuit, or a boat ramp in a car trunk is where this one makes sense. Satisfied owners cite value and simple setup, and the three-waveform set gives more aluminum flexibility than most machines of similar size.
What buyers report going wrong
The included WP-26 torch is oversized and described by owners as MIG-gun sized, with an all-in-one design and no separate lead, so many buyers replace it. Multiple reports describe units leaking argon through an internal valve, and one issue has low-amperage AC TIG failing to trigger even premium auto-darkening helmets.

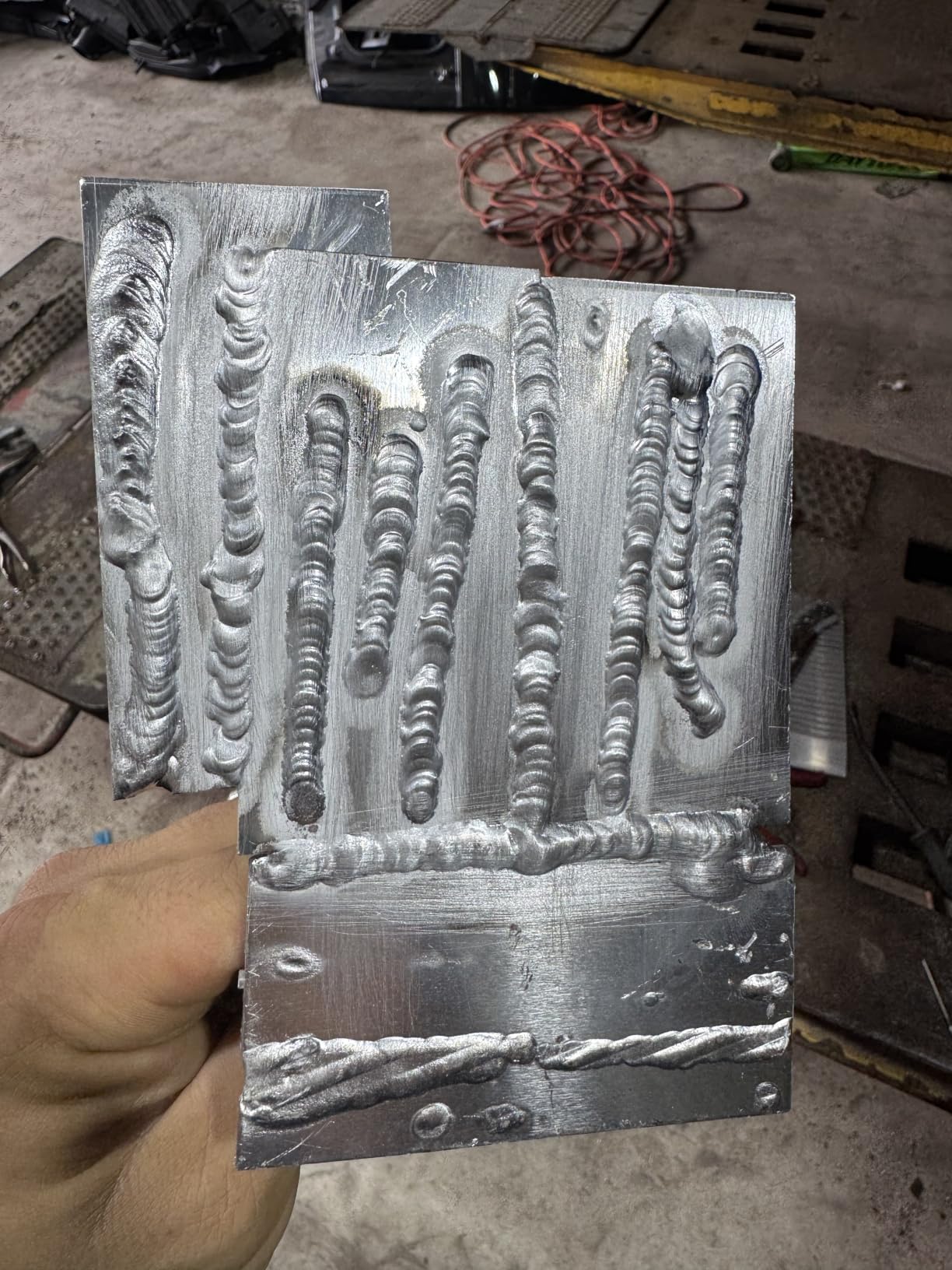

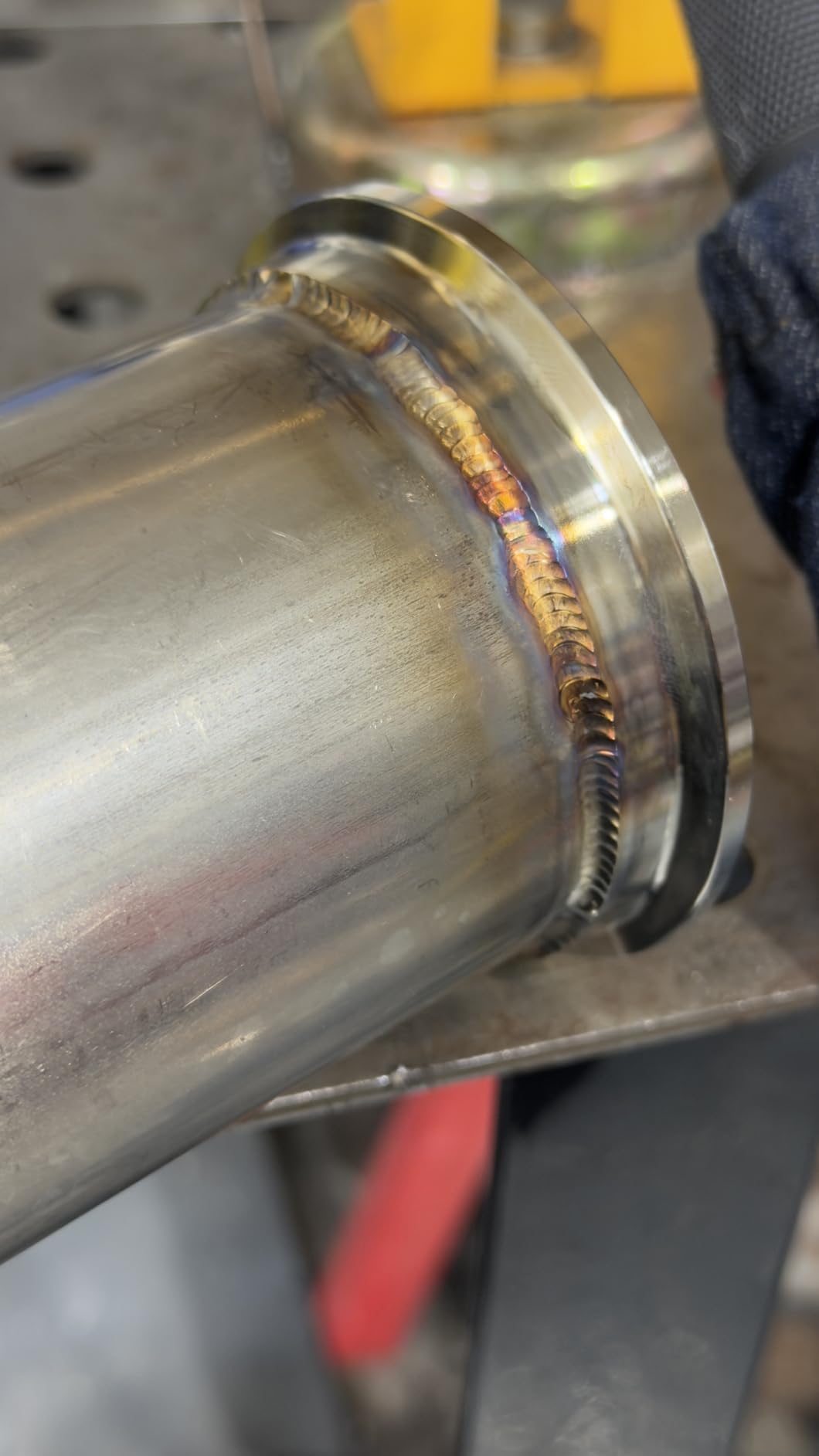

9. Everlast PowerTIG 210EXT Review: Best for AC Control Depth
Everlast PowerTIG 210EXT 210Amp Ac Dc Tig Stick Advance Pulse Welder 110/220 Volt Inverter-Based IGBT Technology
210A AC/DC TIG and stick
Three AC waveforms
Advanced AC pulse mode
Nine memory programs
Pros
- Three selectable AC wave forms
- deepest AC control in this group
- Advanced Pulse AC mode tuned for thin material
- Nine programmable memory slots
- On-demand cooling fan
- Combo includes PowerCool 500 torch
Cons
- Highest cost in the roundup
- Smallest review base at 64 reviews
- Water-cooled torch needs a separate coolant system
- 60 pounds
The PowerTIG 210EXT is the machine to buy if AC waveform selection is the deciding factor. It offers triangular, advanced square and soft square wave forms, the deepest AC control in this roundup, and a dedicated Advanced Pulse AC mode for thin-material welding that raises travel speed and reduces warping.
It rates 4.6 stars across 64 reviews with 84% five-star ratings. That is the smallest review base in the roundup, so long-term data is thinner than the value machines provide, but the enthusiasm among owners centers on exactly the right thing for aluminum work.
Microprocessor control manages the parameters, and nine programmable memory slots let you store settings for repeat jobs, which pays off fast on production aluminum. Stick functions are programmable too, including hot start time, hot start intensity and arc force. HV start and lift arc both work in AC and DC modes.
It is rated at 210 amps and 240 volts, weighs 60 pounds, and measures 24 by 9 by 17 inches. The combo configuration includes a PowerCool 500 water-cooled torch and a PowerCart 500, and a fan-on-demand design keeps idle noise down between welds.
Who this is built for
A working fabricator doing repeat aluminum jobs benefits most from the nine memory programs and the advanced AC pulse mode, since both cut setup time per part. The three wave forms also let you match the AC shape to the material rather than accepting one compromise setting.
What the premium buys and costs
You are paying for AC control depth, and the tradeoff is the water-cooled torch in the combo needs a separate coolant system to maintain. At 60 pounds it stays in the shop, and with only 64 reviews you have less community troubleshooting data than the machines below it in this list.

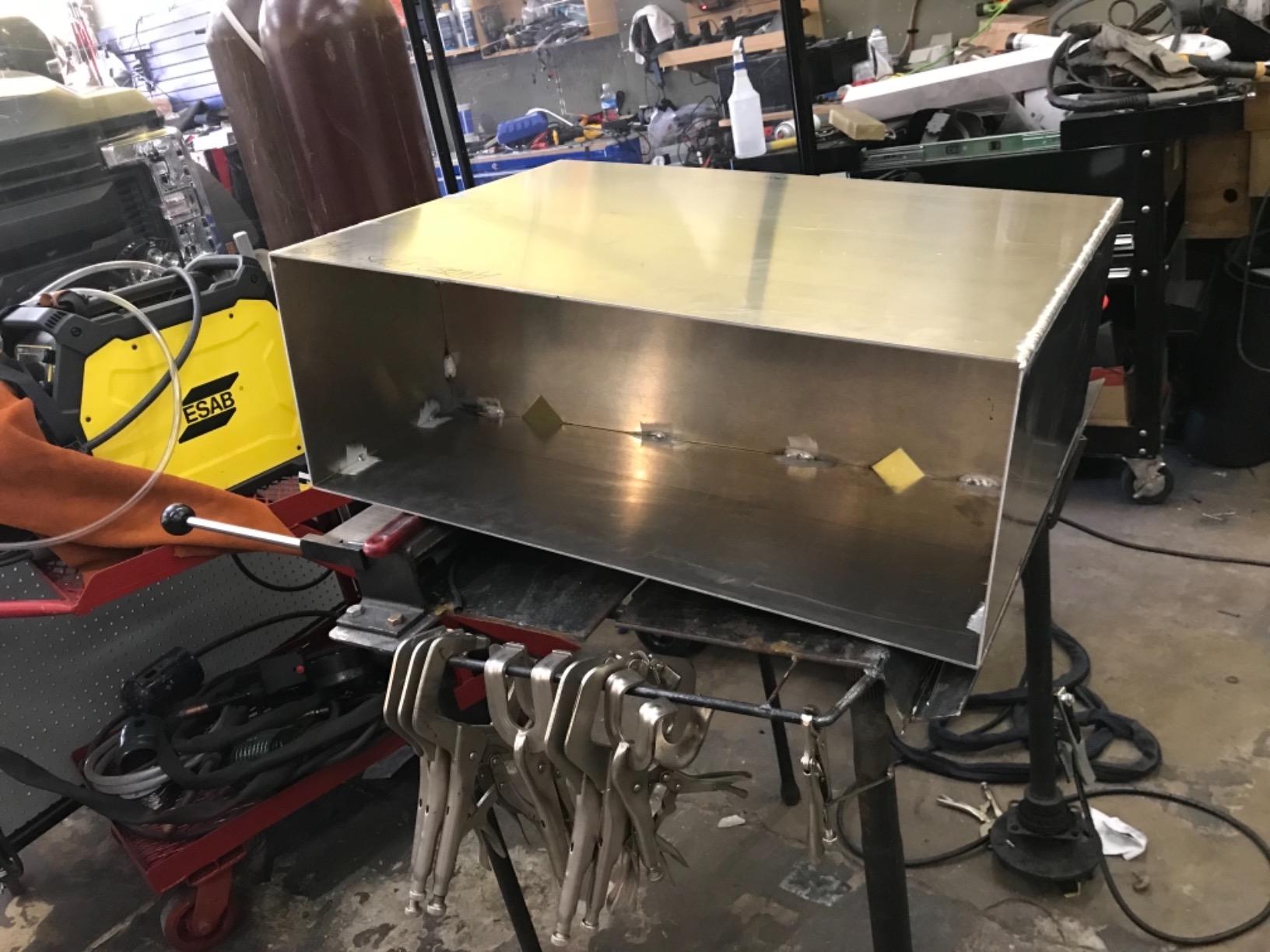

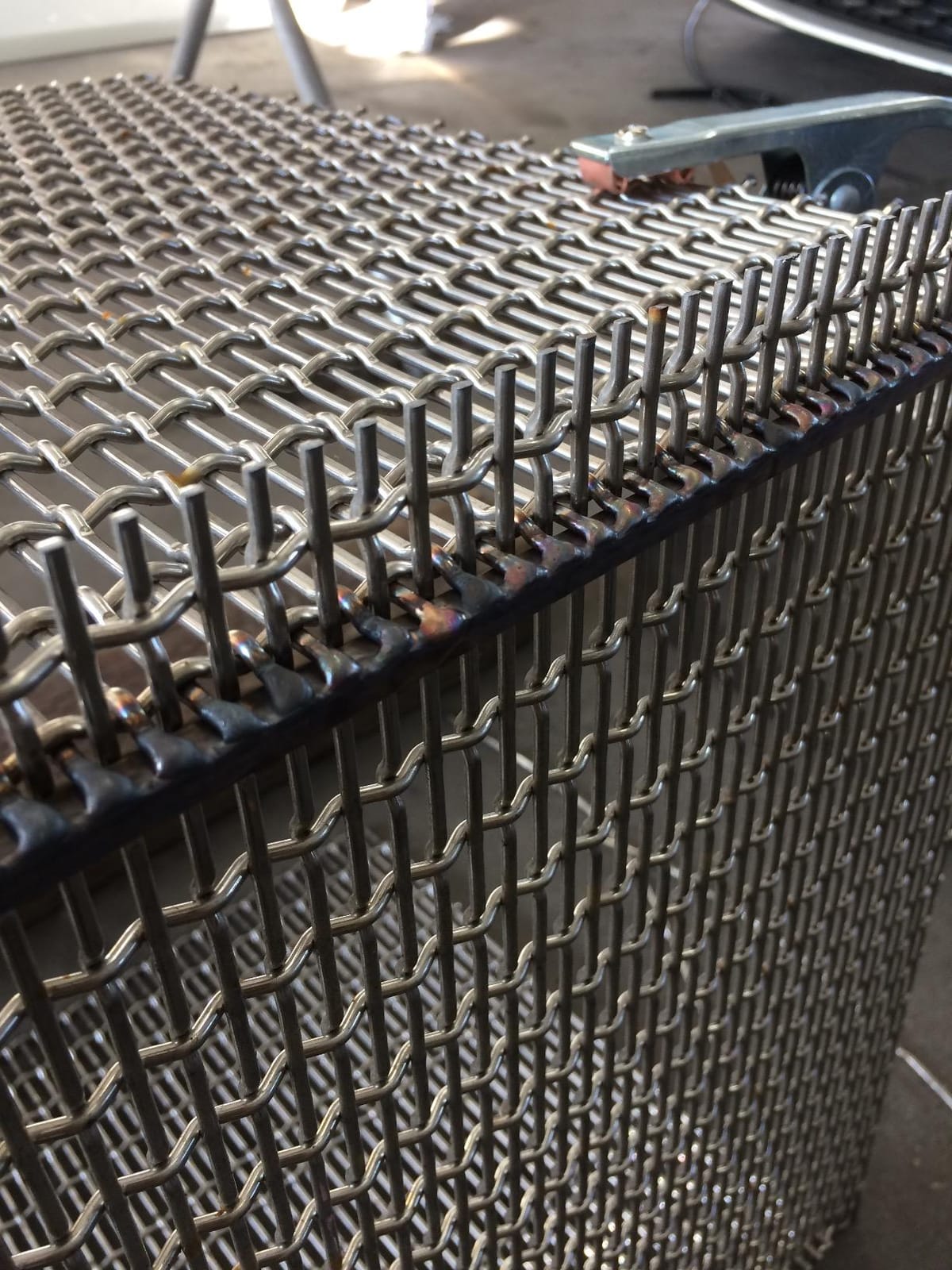

10. Everlast PowerTIG 185DV Review: Light Fabrication Aluminum Work
2021 Everlast PowerTIG 185DV AC/DC TIG Stick Welder 110/220 Volt Inverter-Based Dual Voltage 185Amp with Pedal Package
185A AC/DC TIG and stick
110V/220V dual voltage
Two preset pulse rates
40 pounds with pedal package
Pros
- Lighter than other Everlast machines at 40 pounds
- 185A suits hobby and light fabrication aluminum
- Two pre-programmed pulse rates simplify pulse TIG
- Analog-style settings are quick to read
- Combo includes a foot pedal package
Cons
- Only two preset pulse frequencies
- 185A AC output below 200-250A rivals
- Small review base at 77 reviews
- Lowest category rank in the group
The PowerTIG 185DV is the sensible middle of the Everlast line, and its 40-pound weight makes it the most portable machine in this roundup from a recognized brand. It is a 185 amp AC/DC TIG and stick welder with pulse, running on 110V or 220V through a digitally controlled IGBT inverter.
It rates 4.5 stars across 77 reviews, and the rating is held back by limited pulse adjustability and modest category demand rather than by quality complaints. Owners describe it as a dependable, portable entry into the Everlast AC/DC TIG line with a smooth arc and simple controls.
Instead of a pulse frequency dial, you get two pre-programmed pulse settings at 1 Hz and 50 Hz. For someone learning TIG, that is a feature rather than a limitation, because it removes a tuning decision on your first aluminum beads and you can still get to them later.
The wide adjustment range and duty cycle are positioned above similarly priced Miller and Lincoln models, and the portable design uses easy-to-read analog-style settings. It arrives as a combo with a foot pedal package, so the control method is covered.
When 185 amps is enough
Hobby shops and light fabrication doing aluminum up to moderate gauge will not feel short-changed, and 185A keeps the power budget lower than a 200 to 250A machine on the same circuit. The 40-pound chassis moves between a bench and a small job trailer without a cart.
What you trade away
Two preset pulse frequencies instead of adjustable pulse control removes a tool you may want later, and 185 amps of AC output sits below the 200 to 250A competitors here for heavy plate. With 77 reviews, long-term data is also thinner than the top picks offer.
Aluminum TIG Capability Comes Down to Four Specs You Can Verify Before Buying
Verify these four things before you spend anything: true AC/DC output, adjustable AC frequency, adjustable AC balance, and enough amperage for your thickest material. Everything else on the spec sheet is a preference. A machine that nails those four will weld aluminum acceptably, and a machine that misses the first one will not touch the metal.
AC frequency and AC balance, explained simply
AC frequency is how many times per second the current switches direction, measured in hertz. Higher frequency gives a wider, more evenly distributed arc that is easier to control on thin material and more forgiving of a wandering torch angle. Lower frequency concentrates heat into a narrower pool with more penetration. A machine with a fixed frequency leaves you stuck with one compromise; a wide adjustable range lets you match the setting to the gauge in front of you.
AC balance, sometimes called the cleaning ratio, is the percentage of each cycle spent on electrode positive. The positive half breaks down the aluminum oxide film that causes porosity, and the negative half drives penetration into the metal. Push balance too far positive and you sand the oxide off but lose fusion; too far negative and the oxide reforms in the arc. A 70 to 80 percent electrode positive setting is a common starting point for general aluminum work.
Square, triangle and sine wave, and why the choice matters
The waveform is the shape of the AC swing. Square wave, which most of the machines in this roundup output, cleans aggressively and gives the most consistent bead, which is why it is the default for aluminum plate. Triangular wave spends less time at peak and lowers heat input, which helps on thin material where burn-through is the problem. Sine wave is the smoothest and gentlest option but cleans less aggressively.
The ARCCAPTAIN and YESWELDER in this list give you square and triangular choices directly, and the Everlast 210EXT goes furthest with three selectable wave forms. The PrimeWeld, Weldpro, AHP, LOTOS and Everlast 200DV all give you square wave output with adjustable frequency and balance, which covers the majority of aluminum work well.
How much amperage your aluminum actually needs
Match your machine to the thickest material you will touch, not the thinnest. Very thin aluminum, roughly 0.020 to 0.040 inch, wants 20 to 60 amps and benefits from a machine that starts low. Common sheet around 0.060 to 0.080 inch sits comfortably at 60 to 100 amps. At 1/8 inch you are in the 90 to 130 amp range, and 1/4 inch plate generally needs 150 to 200 amps to lay a bead without walking the amperage to the top of the machine.
This is the calculation forum users get wrong most often, and the result shows up as a machine that takes everything it has and still gives an inconsistent bead. A 200A machine that comfortably covers 1/8 inch is a good buy. A 200A machine asked to run 1/4 inch plate on a 120V circuit is a recipe for frustration.
Pulse TIG: the honest two-sided take
Supporters of pulse say it delivers a peak that melts through the oxide, a background current that lets the puddle cool, and a frozen-like control of the heat input that stops thin material distorting. On paper it is exactly what aluminum needs, and the AI summaries on shopping pages treat it as an automatic plus.
The counter-argument comes from experienced hobbyists. In Home Shop Machinist threads, users argue pulse is something you would not need and that it can make aluminum work harder rather than easier. The PrimeWeld TIG225X recommendation that circulates on those forums comes with exactly that caveat. Their reasoning is practical: a fixed high-frequency AC setting with good balance already cleans aluminum adequately, and pulse adds a layer of parameter tuning before you have mastered basics like tungsten prep and gas flow.
The honest position is that pulse is a refinement, not a prerequisite. The AHP and Everlast 185DV approach, with fewer pulse parameters and more emphasis on the fundamentals, is entirely defensible for a new welder. The Weldpro, ARCCAPTAIN and Everlast 210EXT give you real pulse adjustment if your work moves into thin, heat-sensitive material where you want it.
110V or 220V, and which circuit you need
This is the blocker that stops aluminum purchases more often than any spec. A conventional transformer machine at 1/4 inch aluminum can pull so much current that users report tripping a 100A breaker, and the standard advice on welding forums is to move to an inverter, which draws roughly half the power for the same output. Every machine in this roundup is an IGBT inverter, which is the main reason the circuit conversation is shorter than it used to be.
Even so, check the branch circuit before you buy. A 30A household circuit is enough for most 110V TIG work on sheet and light plate, but heavy 1/4 inch aluminum work wants a 50A branch. A 100A sub-panel is comfortable for sustained production work and for any machine running at full output on 220V. The AHP in particular is reported by owners to run on 120V through a standard outlet with a 25 foot cord, but it also does not cap its output, so watch the load.
TIG or MIG with a spool gun
For wide material variety, a MIG machine with a spool gun is frequently the better purchase, and experienced users on Garage Journal argue a ProPulse 200 MIG is the better option for aluminum over 1/8 inch. MIG with a spool gun lays aluminum faster with less skill, while TIG gives you the control that thin sheet and repair work demand. Many fabricators own both, but if you are buying one machine, match it to the thinnest and most intricate aluminum you plan to weld.
Aluminum projects in other trades follow the same logic. If your work involves items like aluminum boats, aluminum fencing, deck railings or docks, the mix of thin tube, sheet and plate usually points toward TIG for control, with MIG as the production fallback.
What you still need to buy separately
Check the included components list before you order, because the differences between these machines are large. The PrimeWeld, AHP, Weldpro and LOTOS include a foot pedal, and the AHP and LOTOS include an argon regulator. The ARCCAPTAIN, YESWELDER and Sunstac do not include a foot pedal, and the YESWELDER includes neither a regulator nor tungsten.
Beyond the machine, plan for a proper CK17 or 17V flex torch, a foot pedal matched to the connector, an argon regulator with flowmeter, the correct tungsten electrode for AC aluminum work, a fume extraction unit for aluminum oxide fume, and a good auto-darkening helmet. Several machines here have a minimum output of 10 amps or more, which is the practical reason the Everlast 200DV is worth considering for thin-gauge work.
Frequently Asked Questions
What TIG welder do you need for aluminium?
You need an AC/DC TIG welder with adjustable AC frequency and AC balance. AC breaks up the oxide film aluminum forms while the DC component delivers penetration, so a DC-only machine cannot weld aluminum at all. Add enough amperage for your thickest material, post-flow gas control, and dual voltage if you want to run off a household circuit.
Are Harbor Freight TIG welders any good?
Owners on welding forums are split, and the honest answer is that quality control varies by unit rather than by brand. Community consensus holds that you need AC TIG output for aluminum, and that TIG is not automatically better than MIG for a wider variety of material. If you buy one, inspect it on arrival and confirm it has adjustable AC frequency and balance rather than a fixed setting.
What type of welder is best for welding aluminum?
For thin sheet and repair work, an AC/DC TIG welder gives you the most control. For wider material variety and faster production, a MIG machine with a spool gun or push-pull gun is often the better single purchase, and experienced users frequently recommend a pulsed MIG for aluminum over 1/8 inch. Many fabricators own both and use TIG for the thinnest and most intricate work.
What’s a good starter TIG welder?
The PrimeWeld TIG225X is our most-verified starter option, with the highest owner rating and review count in this roundup plus an included CK Worldwide torch and foot pedal. At the lower end, the LOTOS TIG200ACDC offers true AC square-wave output with a pedal and regulator in the box. AHP AlphaTIG owners praise its knob controls as the easiest place to begin.
Should I use AC or DC TIG welding for aluminum?
Use AC for aluminum. The positive half of the AC cycle breaks down the oxide layer that DC welding cannot penetrate, and the negative half drives fusion into the metal. Reserve DC TIG for stainless and mild steel, and DCEN electrode polarity with tungsten on the negative side is the standard setup for both.
What is the recommended AC frequency for TIG welding aluminum?
For general aluminum work, start in the 100 to 200 Hz range. Lower frequencies concentrate heat for a narrower, more penetrating pool, while higher frequencies spread the arc wider and give better control on thin material. The important part is that the frequency is adjustable, so you can match it to the gauge in front of you instead of living with one fixed compromise setting.
Which AC waveform is good for aluminum TIG?
Square wave is the best general choice for aluminum because it cleans the oxide film aggressively and produces the most consistent bead, which is why it is the default on most machines. Triangular wave lowers heat input and helps on thin material. Sine wave is the gentlest but cleans least aggressively. The ARCCAPTAIN and YESWELDER here let you choose between square and triangle directly.
What are the recommended Pulse MIG settings for welding aluminum?
This question is MIG-specific rather than TIG. On a pulsed MIG with a spool gun, start with a 75 percent duty cycle and a pulse frequency around 1 to 3 kHz, with the peak current set roughly 20 to 30 percent above your base amperage. Spool-gun aluminum responds well to 26 gauge wire at a shorter wire stickout, but verify the machine manual since pulse ranges differ by model.
The Aluminum TIG Welder Worth Buying in 2026
The PrimeWeld TIG225X is the best tig welder for aluminum in 2026 for the simple reason that the evidence is the strongest: 4.8 stars across 1,426 reviews, an included CK Worldwide Superflex torch, 1/4 inch aluminum capability, and 110V/220V dual voltage in one package. It is also the model experienced users name most often on Practical Machinist, WeldingWeb and Home Shop Machinist threads.
Buy the Weldpro 200A instead if you want the deepest parameter control and the most complete box at a mid-range budget. Buy the AHP AlphaTIG 203Xi if you prefer simple knobs, a 60% duty cycle and a bundled argon regulator. The Everlast PowerTIG 210EXT is the answer when AC waveform depth and repeat-job memory justify stepping up.
Whatever you choose, verify the four specs before you order: true AC/DC output, adjustable AC frequency, adjustable AC balance and enough amperage for your thickest aluminum. Check whether a foot pedal, argon regulator and tungsten are included, because that varies widely across this roundup, and confirm your branch circuit can handle the load.
